Freeze Dry Machine
SED-2FDG Stainless Steel 316L Vacuum Freeze Dry Machine For Pharmaceutical Penicillin Vial ISO Certificated
SED-2FDG Stainless Steel 316L Vacuum Freeze Dry Machine For Pharmaceutical Penicillin Vial ISO Certificated Feature of Freeze Dry Machine 1. Sterile isolation design - reliable machine or sterile isolati- on placement, user-friendly multi-site use. 2. The whole process of vacuum control - provide the degree of vacuum drying phase variable control, automated opera- tion. 3. Shelf pitch design - available shelf spacing variable function to facilitate large difference in height lyophilized product. 4. A variety of extensions - eutectic point measurement, comp-uter
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-2FDG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 90-120 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 20 Sets per month |
Configuration and product details
Technical overview- Name
- SED-2FDG Stainless Steel 316L Vacuum Freeze Dry Machine For Pharmaceutical Penicillin Vial ISO Certificated
- Output
- 4,200 units of vials 22 mm diameter
- Maximum ice capacity
- 40 KGS
- Stoppering
- Hydraulic stoppering
- Dimension
- 3600mm*1600mm*2800mm
- Maximum design pressure
- 2.5 bar
- Material
- Stainless Steel 316L
- key word
- Freeze Dry Machine
SED-2FDG Stainless Steel 316L Vacuum Freeze Dry Machine For Pharmaceutical Penicillin Vial ISO Certificated
Feature of Freeze Dry Machine
1. Sterile isolation design - reliable machine or sterile isolati- on placement, user-friendly multi-site use.
2. The whole process of vacuum control - provide the degree of vacuum drying phase variable control, automated opera- tion.
3. Shelf pitch design - available shelf spacing variable function to facilitate large difference in height lyophilized product.
4. A variety of extensions - eutectic point measurement, comp-uter remote control, dew point measurement functions
Product Parameters of Freeze Dry Machine
| Sr. No: | Description | Specification |
| General Detail | ||
| 1 | Model | LTDG-2S(CIP+SIP) |
| 2 | Output(approx.) | 4,200 units of vials 22 mm diameter |
| 8,200 units of vials 16 mm diameter | ||
| 3 | Maximum ice capacity | 40 kg |
| 4 | Stoppering | Hydraulic stoppering |
| 5 | Control | Touch screen or PC |
| 6 | Dimension of unit(approx.) (L*W*H) (mm) (With hydraulic cylinder) |
3600mm*1600mm*2800mm (Approx.) (Final dimension based on design) |
| 7 | Weight (approx.) | 3000 kg |
| Chamber | ||
| 1 | Chamber type | Rectangular |
| 2 | Maximum design pressure | 2.5 bar |
| 3 | Maximum design temperature | 140℃ |
| 4 | Sloping | 1% |
| 5 | Finish | Ra≤0.4um (0.4 micron) |
| 6 | Corner | Coping |
| 7 | Validation port | Included |
| 8 | Viewing port | Illuminated |
| Number | 1 | |
| Location | Side | |
| Dimension | DN150 (mm) | |
| 9 | Material | |
| Internal | SUS316L/δ6mm | |
| Insulation | Aluminum silicate and polyurethane foam | |
| External cover | SUS304/δ1.5mm | |
| Door | ||
| 1 | Finish | Ra≤0.4um (0.4 micron) |
| 2 | Viewing port | Included |
| Number | 1 | |
| Location | Center | |
| 3 | Open direction | Right(face to door, hinge on right side) |
| 4 | Open angle | More than 110° |
| 5 | Gasket | Silicone rubber gasket(Medical type) |
| 6 | Locking arrangement | Automatic bolts |
| Pneumatically operated | ||
| Auxiliary manual handle | ||
| 7 | Material | |
| Internal | SUS316L/δ6mm | |
| Insulation | Aluminum silicate and polyurethane foam | |
| External cover | SUS304 | |
| Sterile wall flange | SUS304 | |
| Shelves | ||
| 1 | Temperature range | -55℃- +80 ℃ |
| 2 | Temperature sensors(Shelves) | 2 |
| 3 | Product sensors | 4 |
| 4 | Number of shelves | 4+1 (Upper radiant shelf) |
| 5 | Dimension(L*W*H) (mm) | 920*600*20 |
| 6 | Total usable area (Sq. m) | 2.2 |
| 7 | Spacing | 100 |
| 8 | Hose of flexible connection | Welding |
| 9 | Finish | Ra≤0.4um (0.4 micron) |
| 10 | Level | ±0.5mm/m |
| 11 | Material | SUS316L |
| Stoppering device | ||
| 1 | Stoppering condition | Under vacuum or under inert gas |
| 2 | Stoppering direction | Top to bottom |
| 3 | Operation location | Both in Sterile room or machine room |
| 4 | Hydraulic motor | |
| Brand | Siemens | |
| Power motor | 1.5 kw | |
| 5 | Hydraulic units | |
| Brand | Shanghai | |
| Oil packing | 27L | |
| 6 | Bellows | SUS316L |
| 7 | Stoppering force | 0 – 100 bar (Adjustable) |
| 8 | Cylinder sealing | Outside chamber of double gaskets |
| Condenser | ||
| 1 | Condenser type | Rectangular |
| 2 | Viewing port | Illuminated |
| Number | 1 | |
| Location | Side | |
| Dimension | DN 150(mm) Toughened glass | |
| 3 | Final temperature | ≤- 75℃ |
| 4 | Cooling time (+20℃- -40℃) | ≤ 30 min (Empty) |
| 5 | Maximum design pressure | 2.5bar |
| 6 | Maximum design temperature | 140℃ |

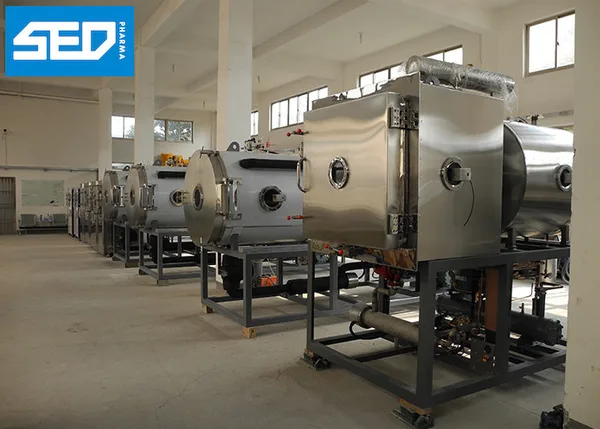

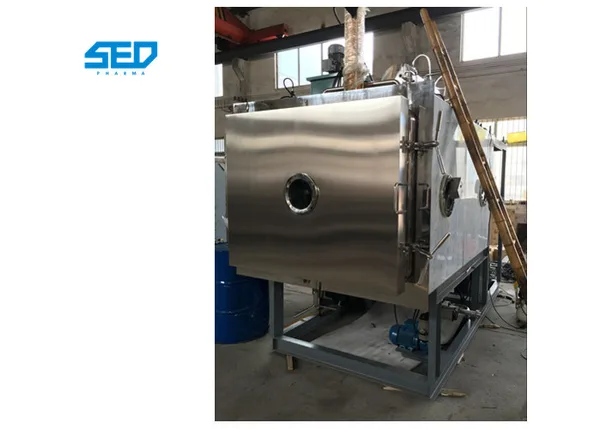

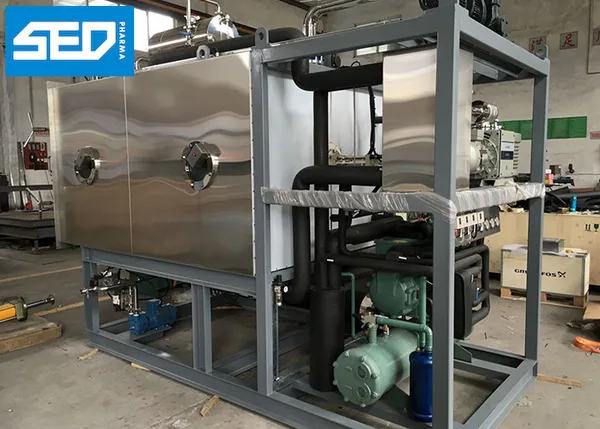

Show of Freeze Dry Machine
Application of Freeze Dry Machine
Freeze Drying Machine is widely used in food, fruit, vegetable, fish, sea cucumer, shrimp, meat drying indstury, chemical and biological industry etc. the dried product dried by freeze dryer is with good taste, beautiful color and good shape.
