SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch

Name: SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch
Brand: SED Pharma

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch Product Parameters of Freeze Dry Machine Parameters Unit SED-0.2FDG Valid Area 0.2 Capacity Shelf usable area m 2 0.24 Condenser capacity Kg/B 4 Bottle the quantity Φ16mm bottle 900 Φ22mm bottle 460 The dish packs the liquid l 4 Basic parameter Shelf size Width mm 300 Length mm 400 Shelf distance mm 100 Shelf number layer 2+1 Shelf temperature range ℃ －55～＋80 Shelf difference in temperature ℃ ±1.0 Minimum temperature of cold tra

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch, view 1

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch, view 2

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch, view 3

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-0.2FDG

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	90-120 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	20 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch
Shelf usable area: 0.24㎡
Condenser capacity: 4 Kgs Per Batch
Bottle Capacity for 16mm Diameter Bottle: 900 Bottlers Per Batch
Bottle Capacity For 22mm Diameter Bottle: 450 Bottles Per Batch
Shelf size(W*L): 300*400mm
Shelf distance: 100mm
Shelf number: 2+1
material: stainless steel
key word: Freeze Dry Machine

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch

Product Parameters of Freeze Dry Machine

Parameters				Unit	SED-0.2FDG
Valid Area					0.2
Capacity	Shelf usable area			m²	0.24
	Condenser capacity			Kg/B	4
	Bottle the quantity		Φ16mm	bottle	900
			Φ22mm	bottle	460
	The dish packs the liquid			l	4
Basic parameter	Shelf size		Width	mm	300
			Length	mm	400
	Shelf distance			mm	100
	Shelf number			layer	2+1
	Shelf temperature range			℃	－55～＋80
	Shelf difference in temperature			℃	±1.0
	Minimum temperature of cold trap			℃	≤－75℃
	Vacuum leakage rate			Pam³/sec	≤5×10^-3
	Minimum vacuum degree			Pa	≤1
The foundation kit supply	Cooling type	Air-cooled well-ventilated		℃	≤25
		≤30℃,0.15－0.2Mpa Water-cooled		m³/hr	0.3
	Installed power			kw	3.3
	Total weight			kg	510
Dimension	Length			mm	700
	Width			mm	1300
	Height			mm	1700

Feature of Freeze Dry Machine

1. Fully automatic operation - from the pre-freeze – first drying - second drying - end discrimination - Auto gland - Automatic re-pressed - Automatic defrost - Automatic shutdown.

2. Double protection design - the machine is running due to operational errors, on the basis of protecting the product, but also protect the safety of the machine.

3. Standard products - products temperature ≤-55 ℃ cold trap temperature ≤-75 ℃ vacuum degree ≤1Pa.

4. Modular product - by system configuration, modular manufacturing, maintenance and more professional.

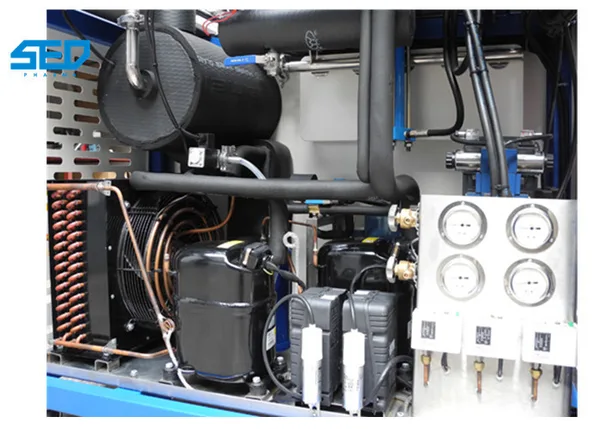

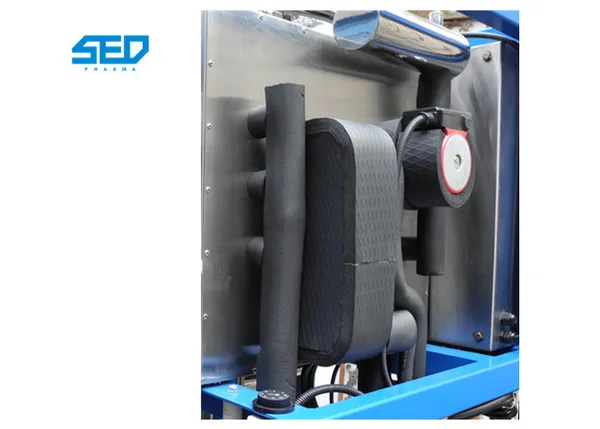

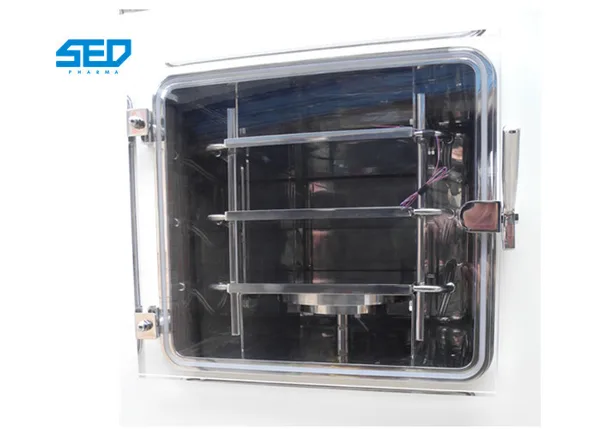

Show of Freeze Dry Machine

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch product detail

Application of Freeze Dry Machine

It is widely used in freeze-drying of fruits, meat, vegetables, Chinese herbal medicines, health care products, etc.

SED-0.2FDG 0.24㎡ Pilot Scale Freeze Drying Equipment Pharmaceutical Vials Lyophilization Machine 450 Bottles Per Batch product detail
