Automatic Labeling Machine
Round Bottle Automatic Labeling Machine Stainless Steel 304 Made PLC Controlled
Round Bottle Automatic Labeling Machine Stainless Steel 304 Made PLC Controlled Function characteristics of Labeling Machine 1) The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional) 2) PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand. 3) The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working. 4) The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon. Product Parameters of Labeling Machine
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-STB |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Round Bottle Automatic Labeling Machine Stainless Steel 304 Made PLC Controlled
- Warranty
- 1 Year
- Operation
- Right or left
- Running speed
- 10-130 pcs/min
- Maximum diameter of label
- Ф 300mm
- Coil diameter
- Ф 75mm label
- Weight
- 200kg
- Power supply
- 220V 50HZ Single Phase
- material
- stainless steel
- key word
- Automatic Labeling Machine
Round Bottle Automatic Labeling Machine Stainless Steel 304 Made PLC Controlled
Function characteristics of Labeling Machine
1) The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)

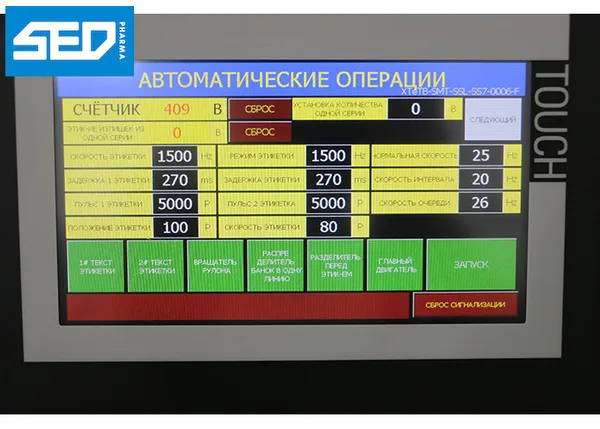

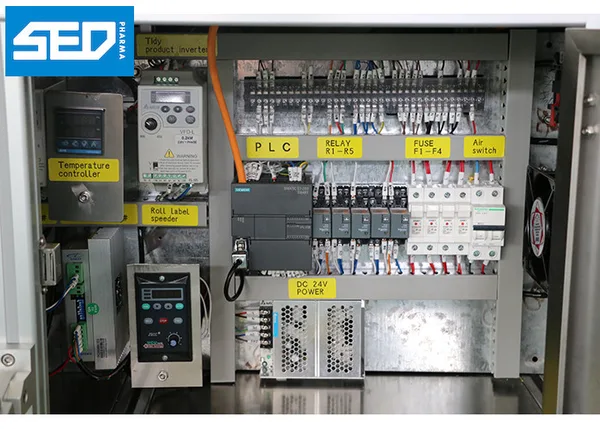

2) PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
3) The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
4) The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
Product Parameters of Labeling Machine
| Driver Motor: | Stepping motor |
| Operation: | Right or left |
| Running speed: | 10-130 PCS/min |
| Packaging Range: |
Length:15-260mm Width: 20-150mm Height: 25-350mm Label size width 10-150mm length 15-200mm |
| Maximum diameter of label: | Ф 300mm |
| Coil diameter: | Ф 75mm label |
| Weight: | 200kg |
| Power supply: | AC220V 0.5Kw 60HZ |
| Overall Size: | 2000X1300X1500 |
| Ribbon Coding machine: | HP 260Q |
The Scope of Application:
Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station.
There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

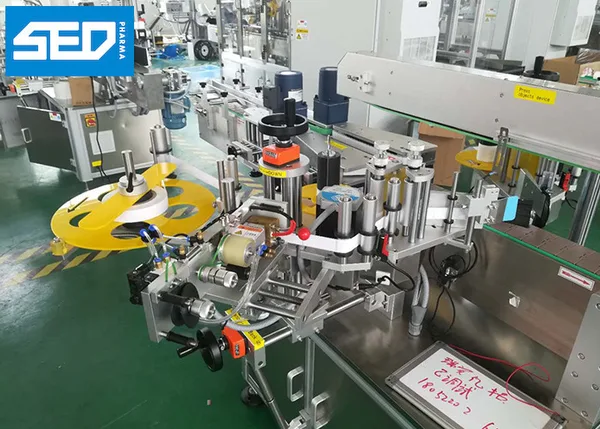

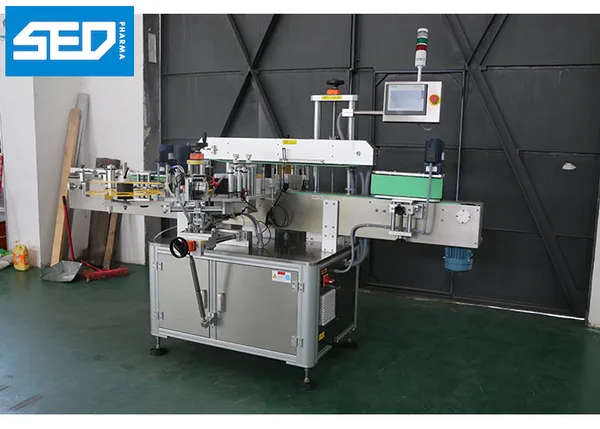

Products Show of Labeling Machine
Application of Labeling Machine
