Automatic Labeling Machine
Precise Single Face Automatic Labeling Machine Equipment For Round Bottles
Precise Single Face Automatic Labeling Machine Equipment For Round Bottles Product Parameters of Sticker Labeling Machine product name labelling machine applicable product Cylindrical surface Apply the label self-adhesive label Applicable product diameter 10-180mm Applicable label width 10-100mm Label speed 0-200pcs/min Labeling accuracy ±1mm Total Weight 168kg Overall Dimension 2000X1050X1560mm power source 220V/VA rate of work 950W The Scope of Application: For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc. It is a mode
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-PT |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Precise Single Face Automatic Labeling Machine Equipment For Round Bottles
- product name
- labelling machine for round bottles
- Label speed
- 0-200pcs/min
- Labeling accuracy
- ±1mm
- Total Weight
- 168kg
- rate of work
- 950W
- material
- stainless steel
- key word
- Sticker Labeling Machine
Precise Single Face Automatic Labeling Machine Equipment For Round Bottles
Product Parameters of Sticker Labeling Machine
| product name | labelling machine |
| applicable product | Cylindrical surface |
| Apply the label | self-adhesive label |
| Applicable product diameter | 10-180mm |
| Applicable label width | 10-100mm |
| Label speed | 0-200pcs/min |
| Labeling accuracy | ±1mm |
| Total Weight | 168kg |
| Overall Dimension | 2000X1050X1560mm |
| power source | 220V/VA |
| rate of work | 950W |
The Scope of Application:
For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc. It is a modern mechanical and electrical integration product.
Labeling machine is applied to roll label paper sticker, labeling by rolling. A compelete process can be automatic deliver bottles, label, collect bottle. It can be connected with printer to make lable print.
The machine uses computer fiber control, synchronous tracking. The standard is controlled by the mutual inductance stepper motor to ensure that the standard speed and roll speed is synchronized in work.
Equipment function characteristics of Sticker Labeling Machine
PLC control with large-scale interface, easy to read.
Multiple labeling parameters memory for fast replacement.
The whole machine is made of stainless steel and high-level anodized aluminum, meet the GMP standard.
The machine is equipped with a bottle reminder: sub-bottle, label lost, count, etc.
Label position and label height are adjustable.

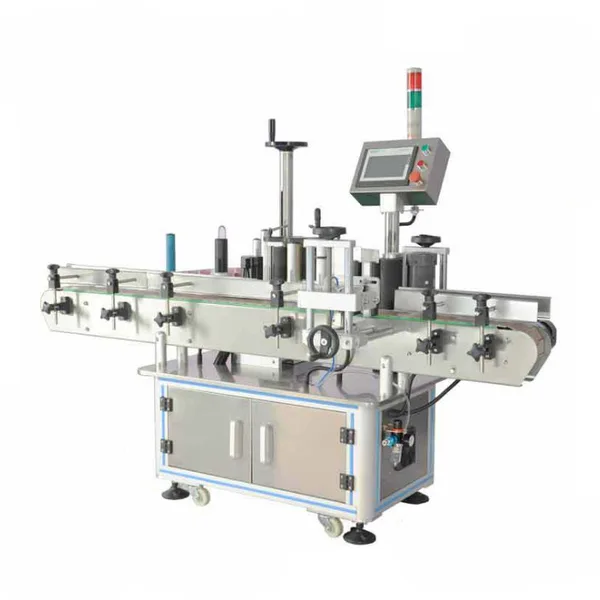

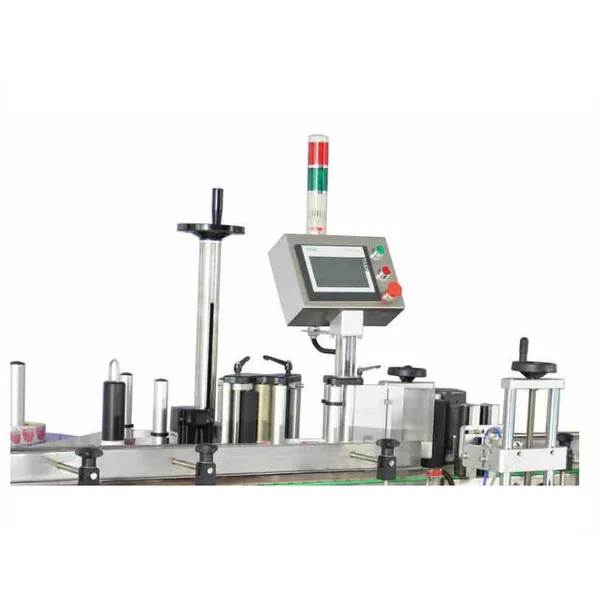

Products Show of Sticker Labeling Machine
Application of Sticker Labeling Machine
