Powder Moisture Material Mixing Blending Machine With 150L Volume Tank

Powder Moisture Material Mixing Blending Machine With 150L Volume Tank



Simple Instruction of Mixing Machine



Groove Type mixer is widely used to mix powder or moisture materials and make the different proportion of main and supplementary materials mixed evenly.



All the parts touched with materials are made of stainless steel. The clearance between blades and vessel body is small so that there is no dead corner during mixing.



Sealed devices are installed at the two ends of mixing shaft to prevent the leakage of materials. It is widely used in the industries of pharmacy, chemical, food, etc.



Main Technical Data of Mixing Machine

Volume (L)	150
Power of agitation motor (kw)	3
Rotation speed of agitation (r/min)	24
Power of Inclined motor (kw)	0.55
Input(kgs)	70-80
Weight (kg)	350
Overall dimensions (mm)	1360×540×1100



Feature of Mixing Machine

1. Wide range of use: The equipment can meet the production of dry mortar with different performance requirements. Such as: masonry mortar, plastering mortar, polymer mortar required for thermal insulation system, polystyrene particle moisturizing mortar and other dry powder mortar.

2. Good dispersion: The equipment completely solves the problems of low uniformity and dead angle caused by different specific gravity of materials. This equipment adopts the mixing structure of five-axis with flying knife mortar, which can effectively disperse various short fibers.

3. Simple and convenient to use: the equipment has a small footprint, simple operation, low energy consumption, and can produce 5-8 tons per hour.

4. Small investment: The equipment has obvious price advantage. Small investment and quick results.

5. Long service life: The vulnerable parts of the equipment are all made of high-strength wear-resistant steel. It has the characteristics of long service life.

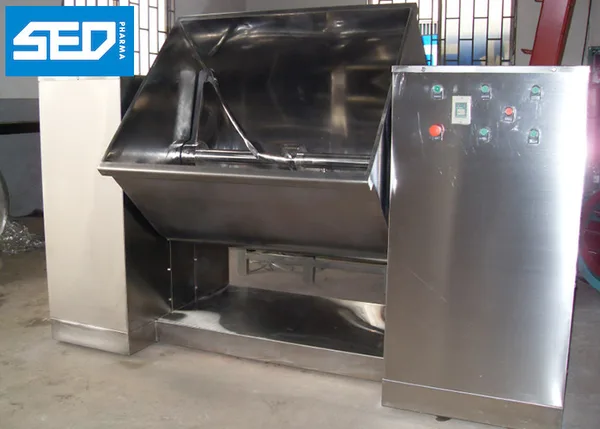

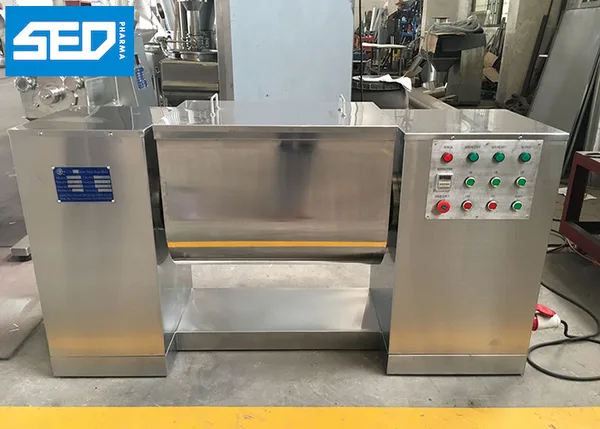

Product Show of Mixing Machine



Application of Mixing Machine
