Powder Mixer Machine
High - Speed Powder Mixer Machine Efficiency Powder Blending Machine
High - Speed Powder Mixer Machine Efficiency Powder Blending Machine Product Description of Powder Blending Machine EH Series two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels. Two of four wheels are driven by rotating power system to made the cylinder rotate. The swinging bar which is mounted on the frame and the swinging rack is supported on the frame Main Parameter of Powder Blending
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1000EH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the advanced payment |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per Month |
Configuration and product details
Technical overview- Name
- High - Speed Powder Mixer Machine Efficiency Powder Blending Machine
- Material
- Stainless Steel
- Barrel capacity(L)
- 1000
- Max loading capacity(L)
- 600
- Max loading capacity(kg)
- 300
- No. of swing & rotation (r/min)
- 19.8
- Motor power(kw)
- 3
- overall dimensions(mm)
- 130×2980×1894
- key word
- Powder Blending Machine
High - Speed Powder Mixer Machine Efficiency Powder Blending Machine
Product Description of Powder Blending Machine
EH Series two dimensional mixer mainly consists of three big parts namely, rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels.
Two of four wheels are driven by rotating power system to made the cylinder rotate. The swinging bar which is mounted on the frame and the swinging rack is supported on the frame
Main Parameter of Powder Blending Machine
| Model | SED-1000EH |
| Barrel capacity(L) | 1000 |
| Max loading capacity(L) | 600 |
| Max loading capacity(kg) | 300 |
|
No. of swing & rotation(r/min) |
19.8 |
| Motor power(kw) | 3 |
| overall dimensions(mm) | 130×2980×1894 |
|
Total weight(kg) |
1700 |
|
Barrel weight(kg) |
240 |

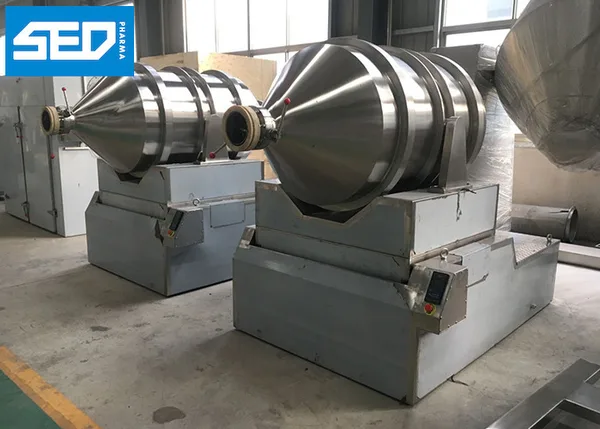

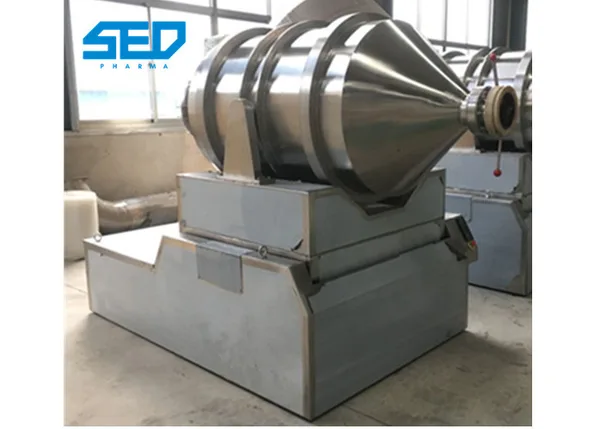

Product Show of Powder Blending Machine
Feature of Powder Blending Machine
It is used for the high uniformity mixing of powder, granular materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units
The mixing tube is moved with two-direction at same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.
Materials to be mixed will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, materials can be mixed fully in a short time.
All parts in the tube is circular arc with precision polishing.
Application of Powder Blending Machine
