Powder Mixer Machine

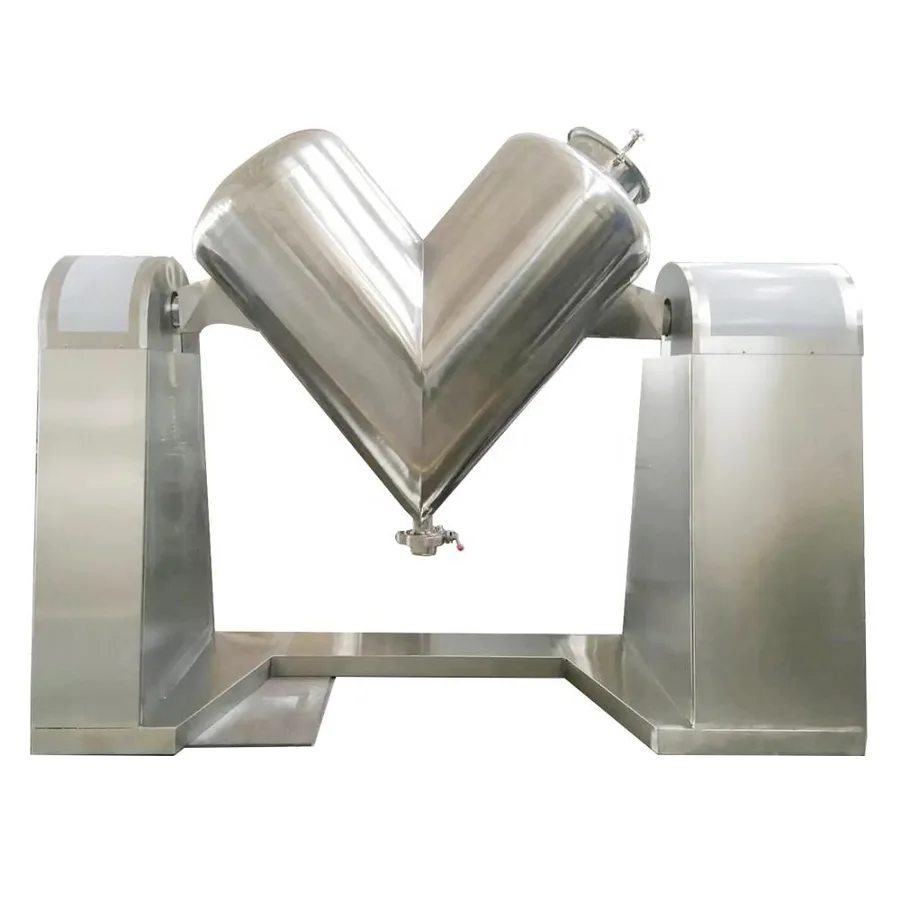

V Type 100L Wheat Flour Powder Mixer Machine For Food Stuff Powder
The mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished.
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100VH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Sets per month |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 40 working days after receiving the deposit |
Configuration and product details
Technical overview- Name
- V Type 100L Wheat Flour Powder Mixer Machine For Food Stuff Powder
- Volume
- 100L
- Capacity
- 40-60kg/batch
- Rotating Height
- 1580mm
- Mixing Type
- V type
- Rotating Speed
- 20r/min
- material
- stainless steel
- key word
- Powder Mixer Machine
V Type 100L Wheat Flour Powder Mixer Machine For Food Stuff Powder
Product Description of Mixer Machine
The mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished.
There is no internal transmission mechanism inside V type mixing equipment and it meets the GMP standard.
Parameter of Mixer Machine
| Model Name: | SED-100VH |
| Total Volume: | 100L |
| Capacity: | 40-60kg/batch |
| Material Fed in Time: | 3-5min |
| Mixing Time: | 4-8min |
| Rotating Speed: | 20r/min |
| Motor Power: | 0.75Kw |
| Rotating Height: | 1580mm |
| Total Weight: | 500kgs |
Main Feature of Mixer Machine
1. V type mixer machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect.

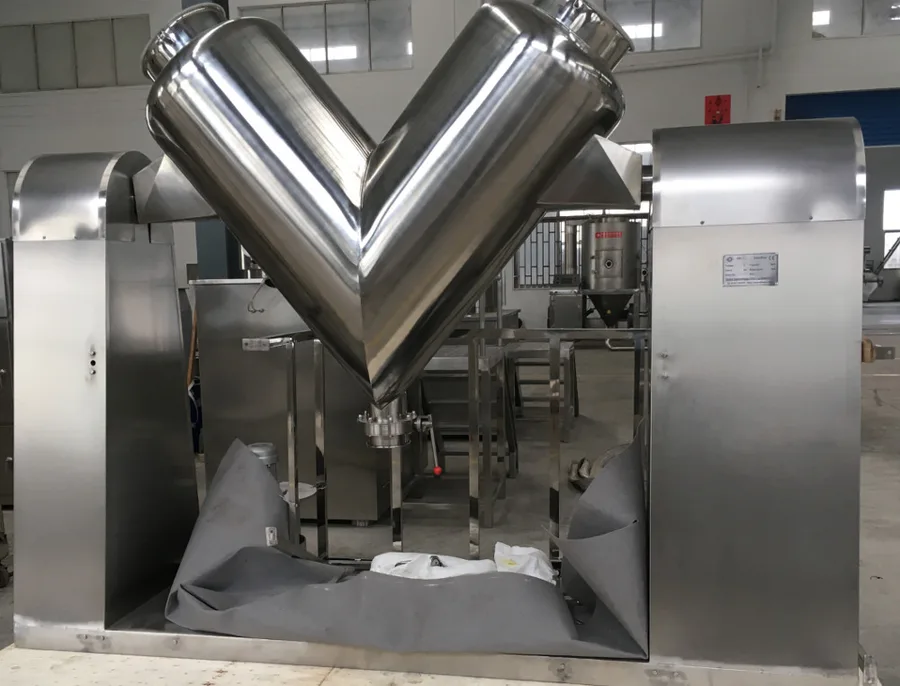

Product Show of Mixer Machine
![]()
Precautions For Use
1. The V-type mixer must be placed horizontally on the ground, and the feet must be installed to avoid vibration and other phenomena during operation;
2. Before using the V-type mixer, it is necessary to conduct a no-load debugging of the equipment. Before the test run, check the connection parts of the equipment. After it is normal, turn on the power supply, turn on the equipment switch, and conduct no-load test run;
3. When feeding, the specified volume should not be exceeded to avoid abnormal operation of the equipment;
4. When replacing the material and mixing, the inside and outside of the hopper should be cleaned.
Application of Mixer Machine
V type mixer machine is widely used in pharmaceutical, chemical and food industries. It is suited for mixing more than two dry powder or granular materials.
![]()
![]()
![]()
![]()
![]()
![]()
