Three Dimensional Dry Powder Mixer Machine With Stainless Steel Material Body



Three Dimensional Dry Powder Mixer Machine With Stainless Steel Material Body



Product of Powder Mixing Machine ​

The barrel for charging the materials is driven by the driving shaft.



The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensional and complex movements along the barrel body so as to realize the various movements of the materials.



Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.



Main Parameter of Powder Mixing Machine ​



spec	SED-200SH
volume of barrel(L)	200
charge volume (L)	180
charge weight(kg)	50-108
ratation speed of main shaft(r/min)	0-15
motor powder(Kw)	2.2
size LxWxH(mm)	1450×2000 ×1550
weight(kg)	1200



Feature of Powder Mixing Machine

1. Advanced structure, convenient operation, safe and reliable operation;



2. The mixing speed is fast and the quality is uniform. The double helix of this machine is asymmetrically arranged, and the mixing range is expanded by one big and one small, so it is more suitable for mixing materials with disparate specific gravity;



3. The energy saving effect is remarkable, the energy consumption of this machine is only one tenth of that of the drum mixer;



4. The wear and pressure of granular materials are small, and there is no overheating reaction when mixing heat-sensitive materials;



5. The mixed preparation is stable, and no delamination and segregation occur;



6. The dry powder mixer is sealed and dust-free, with simple operation, convenient maintenance and long service life. In addition, according to requirements, the cone can be made into a pressure vessel for pressurization or vacuum operation;



7. The autobiography and revolution of the dry powder mixer are completed by a set of motors and a cycloid reducer.

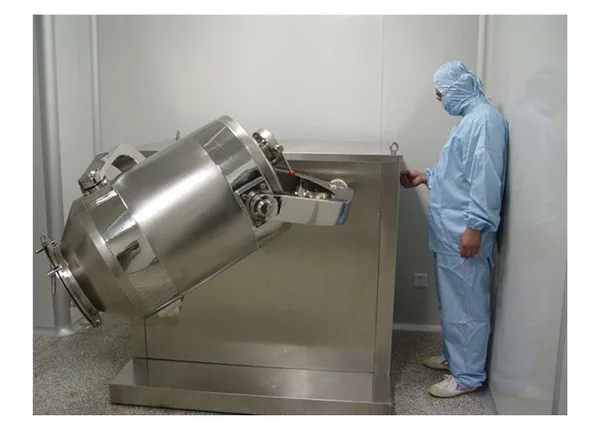

Product Show of Powder Mixing Machine



Application of Powder Mixing Machine ​

1) The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate.

2) The mixing rate is up to 100%.The machine id the desired product in various mixers at present.

3) The material charge rate of barrel is big. Maximum rate can be up to 90%(the normal mixer has only 40% charge rate.). It is high in efficiency and short in the mixing time.
