Capsule Filling Machine

PLC Control Fully Automatic Capsule Filling Machine with 2000 capsules/min Speed and 18 Die Holes for High Accuracy

Name: PLC Control Fully Automatic Capsule Filling Machine with 2000 capsules/min Speed and 18 Die Holes for High Accuracy
Brand: SED Pharma

PLC Control Fully Automatic Capsule Filling Machine With German Siemens Brand Touch Screen The SED-2000J-H Automatic Capsule Filling Machine is a high-performance automatic capsule filling machine, delivering exceptional productivity of up to 2000 capsules per minute with a filling accuracy of ±3% to ±4%. Engineered with a Siemens control system and premium Japanese precision components, it guarantees long-term stability and reliability, making it an ideal solution for large-scale hard capsule production in pharmaceutical and nutraceutical industries. Technical Specificatio

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-2000J-H

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Working days after receiving advanced payment or original L/C
Payment Terms:	T/T,L/C,,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: PLC Control Fully Automatic Capsule Filling Machine With German Siemens Brand Touch Screen
Suit for capsule size: 00#-4# capsule
Max. Speed: 2000 capsules/min
Weight: 1300kg
Die Hole Number: 18 pcs
Filling Accuracy: ≥99.5%
Control Mode: PLC Control
key word: Powder Capsule Filling Machine Automatic Capsule Filling Machine

PLC Control Fully Automatic Capsule Filling Machine With German Siemens Brand Touch Screen

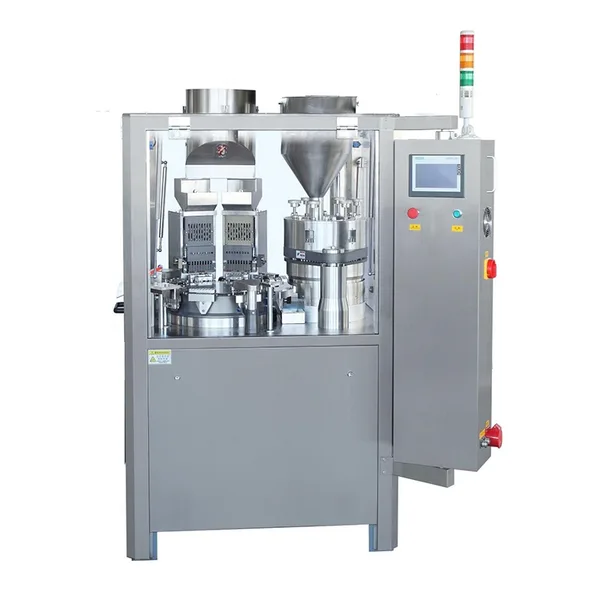

The SED-2000J-H Automatic Capsule Filling Machine is a high-performance automatic capsule filling machine, delivering exceptional productivity of up to 2000 capsules per minute with a filling accuracy of ±3% to ±4%. Engineered with a Siemens control system and premium Japanese precision components, it guarantees long-term stability and reliability, making it an ideal solution for large-scale hard capsule production in pharmaceutical and nutraceutical industries.

Technical Specifications

Model	SED-2000J-H
Capacity	2000 capsules/min
Filling Material	Powder, Granules
Die Hole Number	18
Power Supply	380V 50Hz 3P
Total Power	6.97KW
Application	00#-4# capsule
Filling Variation	±3% - ±4%
Noise	≤75dB(A)
Qualified Rate	≥99.5%
Overall Dimension	1200mm (L) x 1050mm(W) x 2100mm(H)
Weight	1300kg

Key Features

Siemens Intelligent Control: Features Siemens PLC, HMI, and frequency converter for stepless speed regulation, digital display, and user-friendly operation.

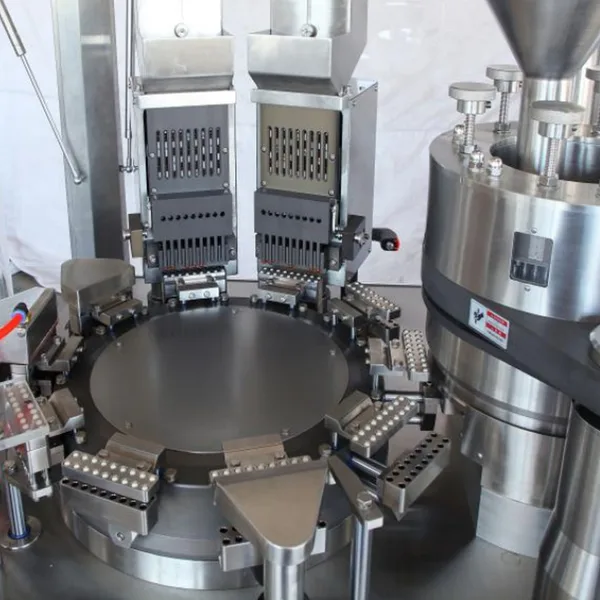

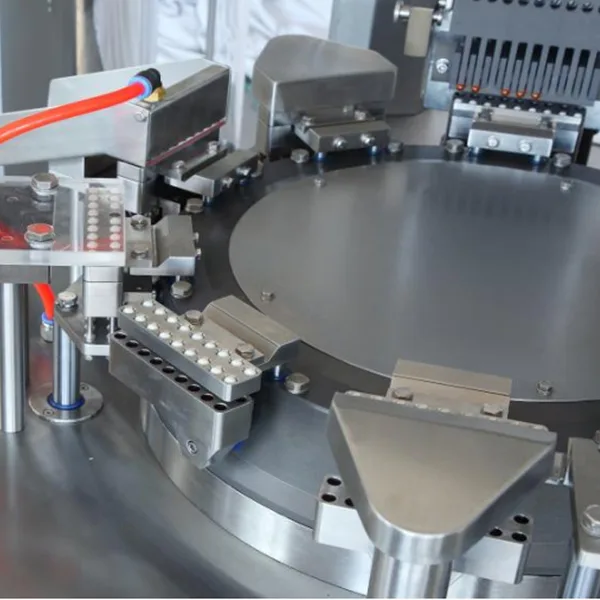

Precision Mechanical Design: Enhanced mold turntable with original Japanese linear bearings, underslung cam design, and pressure atomizing oil pump for high accuracy and extended service life.

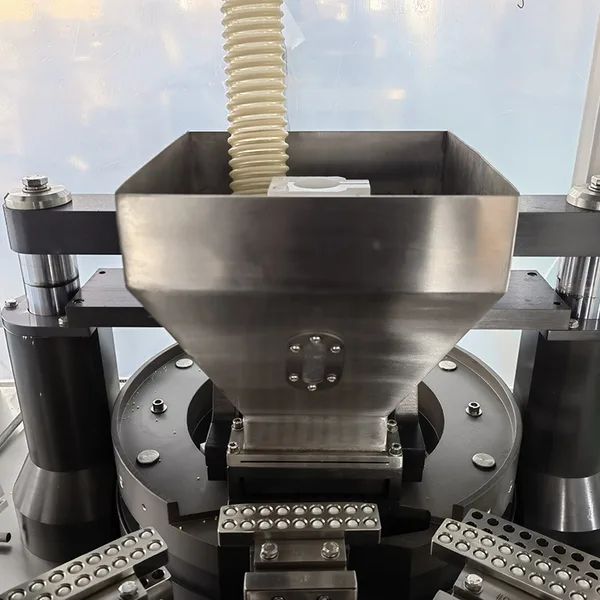

3D Adjustment System: Ensures uniform clearance based on the dosage plate's lower plane, guaranteeing consistent filling weight.
Comprehensive Safety: Equipped with safety protection devices and automatic stop function for material shortage, ensuring smooth and reliable operation.
Modular Options: Offers a range of accessories including empty capsule feeder, vacuum powder feeder, capsule polisher, and counter for production line integration.

Application
