Liquid Filling Machine
Plastic Bottle Sealing 20ml Liquid Filling Machine EasyFolding
Plastic Bottle Sealing 20ml Liquid Filling Machine EasyFolding Product Description of Liquid Filling Machine This machine can be used as the preferred filling equipment for oral liquid in China through a series of special processes such as automatic bottle loading, bottom filling, automatic capping, hot-melt bottom sealing and pneumatic finger clamping. Machine Parameters of Liquid Filling Machine suitable size 5-20ml Production capacity 160 bottle/min Power supply 380V 50Hz 16kw method of measurement all metal rotary piston pump metering accuracy conforms to the sta
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-4/1GSF |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Plastic Bottle Sealing 20ml Liquid Filling Machine EasyFolding
- suitable size
- 5-20ml
- Production capacity
- 160 bottle/min
- Power supply
- 380V 50Hz 16kw
- method of measurement
- all metal rotary piston pump
- method of sealing
- bottom auto-heat melt sealing
Plastic Bottle Sealing 20ml Liquid Filling Machine EasyFolding
Product Description of Liquid Filling Machine
This machine can be used as the preferred filling equipment for oral liquid in China through a series of special processes such as automatic bottle loading, bottom filling, automatic capping, hot-melt bottom sealing and pneumatic finger clamping.
Machine Parameters of Liquid Filling Machine
|
suitable size
|
5-20ml
|
|
Production capacity
|
160 bottle/min
|
|
Power supply
|
380V 50Hz 16kw
|
|
method of measurement
|
all metal rotary piston pump
|
|
metering accuracy
|
conforms to the state Pharmaacopoeia
|
|
method of sealing
|
bottom auto-heat melt sealing
|
|
Diemension (L×W×H)
|
6200x4200x2400mm
|
Feature of Liquid Filling Machine
The whole machine adopts PLC control, man-machine interface operation, automatic and manual switching control, touch screen full Chinese menu monitoring, with functions of empty bottle leak detection, bottle filling stop, capless bottle and bottle leak elimination, variable frequency stepless speed regulation, automatic counting, etc.
The flexible plastic bottles equipped with this machine are manufactured in clean areas, which can reduce the washing, drying and sterilization processes, save space, and have the advantages of not breaking in bottling and transportation.

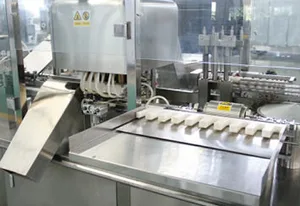

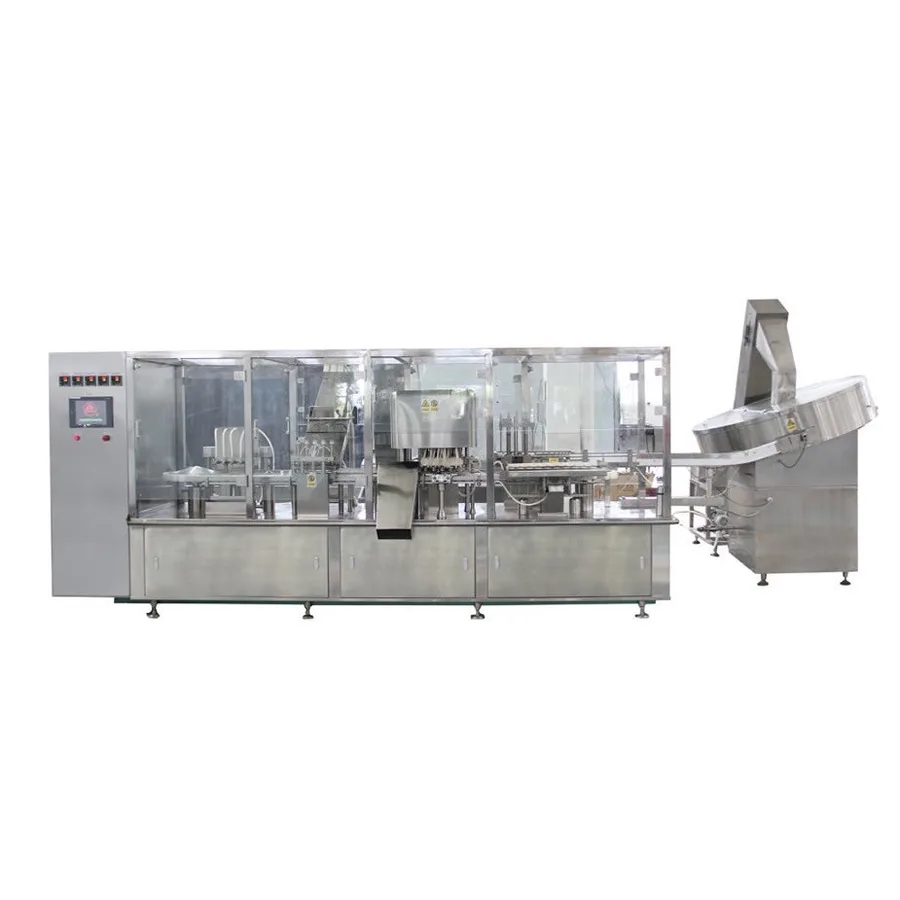

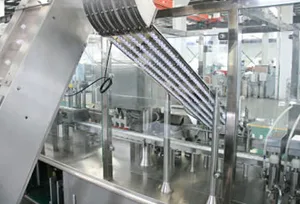

Products Show of Liquid Filling Machine
