Pharmaceutical Vacuum Freeze Dry Machine With Large Automatic

Pharmaceutical Vacuum Freeze Dry Machine With Large Automatic



Product Description of Freeze Dry Machine



Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to



air condition, removing water to preserve materials. Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the



formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.



Main Parameter of Freeze Dry Machine

model	SED-10PDG
Power (Single-phase )	380V/50HZ
Power consumption	55Kw
Cooling water qty	≥18m3/h(T≤30℃/P=0.15-0.2Mpa)
Appearance size	5400*1900*3300
Structure	Integral
Total weight	8600kg
Compressed air	≥0.1m3/Min(P=0.5-0.8Mpa)

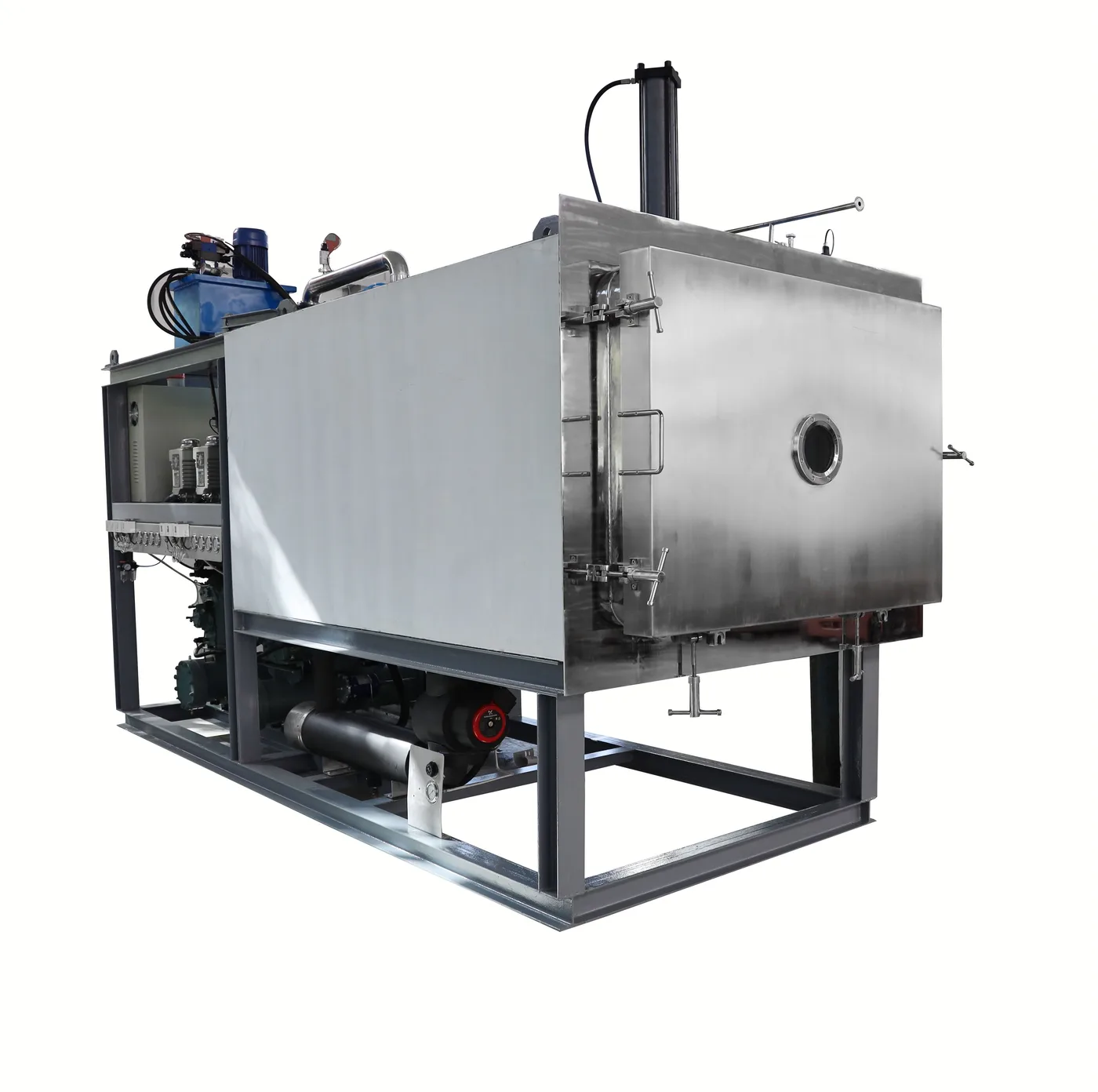

Product Show of Freeze Dry Machine





Feature of Freeze Dry Machine



1. Using high-efficiency radiation heating, the material is heated evenly;


2. High-efficiency water trap is adopted, and rapid defrosting can be achieved;


3. Adopt high-efficiency vacuum unit, and can realize oil-water separation;


4. Adopt parallel centralized refrigeration system, multi-channel on-demand cooling, stable working conditions, which is beneficial to energy saving;


5. Adopt artificial intelligence control, high control precision and convenient operation;


6. After freeze-drying, the biological activity of the material remains unchanged, the appearance and color are uniform, the shape is full, the structure is firm, the dissolution rate is fast, and the residual moisture is low.



Application of Freeze Dry Machine
