Pharmaceutical Suppository Production Line With Filling And Sealing System

Product Description of Suppository Filling Machine


1. Forming part:
Film material on the film s plate(PVC/PE)through the gripping agencies into forming area to preheating film-->forming mold-->blowing film-->blown film forming, triangle knife cut edge technology, the dotted line cut.

2.Filling part:
With suitable nozzles filling,for forming suppository one time embedded filling,filling precision ± 2%,material barrel with electric-heating insulation system,top with a stirring motor so that drug keep uniform state,the drug in the barrel through cycle pump into filling nozzles,one time filling the remaining drug cycle through the other end of a raw material barrel to do the next filling.

3.Cooling part:
Filling the entire row of drug finished then into cooling frame,cooling box internal with chiller block,cooling wind through two condensers in the cooling box to cooling suppository on the cooling rack.

4.Seal tail and type code:
After cooling the solid suppository into sealing area:
pre-heat mold-->seal mold-->type mold.
Then cut the finished products a group for six granules or five granules
(according to customers requirement).

It is with the wide application, it's with PLC control, HMI operation,
with high degree of automation, with accurate temperature control,

with stable operation, with big capacity of liquid storage barrel, constant temperature circulation liquid supply and liquid level automatic control device to guarantee the medicine liquid will not solidify when the machine stops.

According to different basic materials, mixing in the liquid barrel, after filling, the cooling speed can be adjusted evenly. If the suppository shell forming is not complete, the filling deviation is not unqualified, will be rejected automatically. With small occupied area, and convenient adjustment.

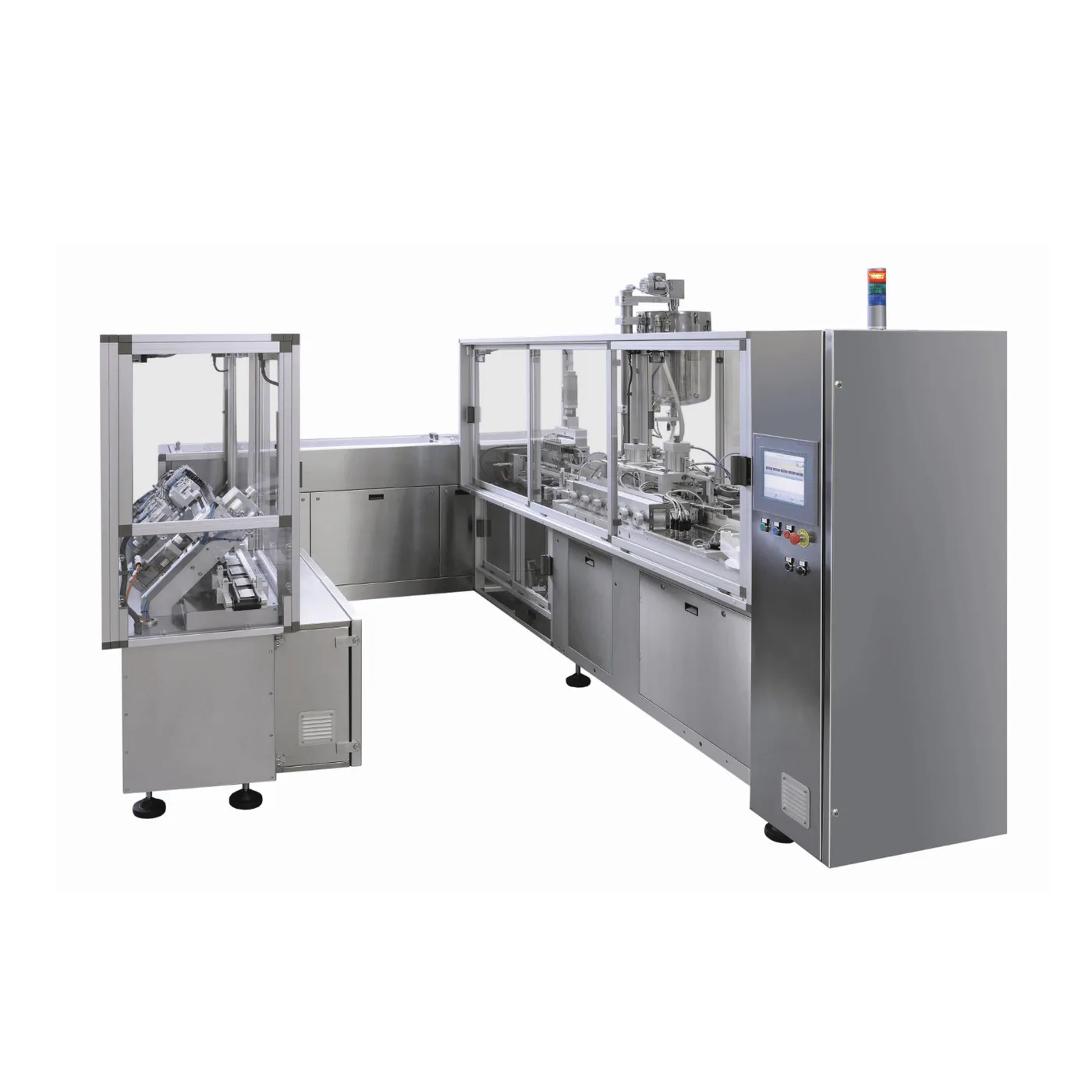

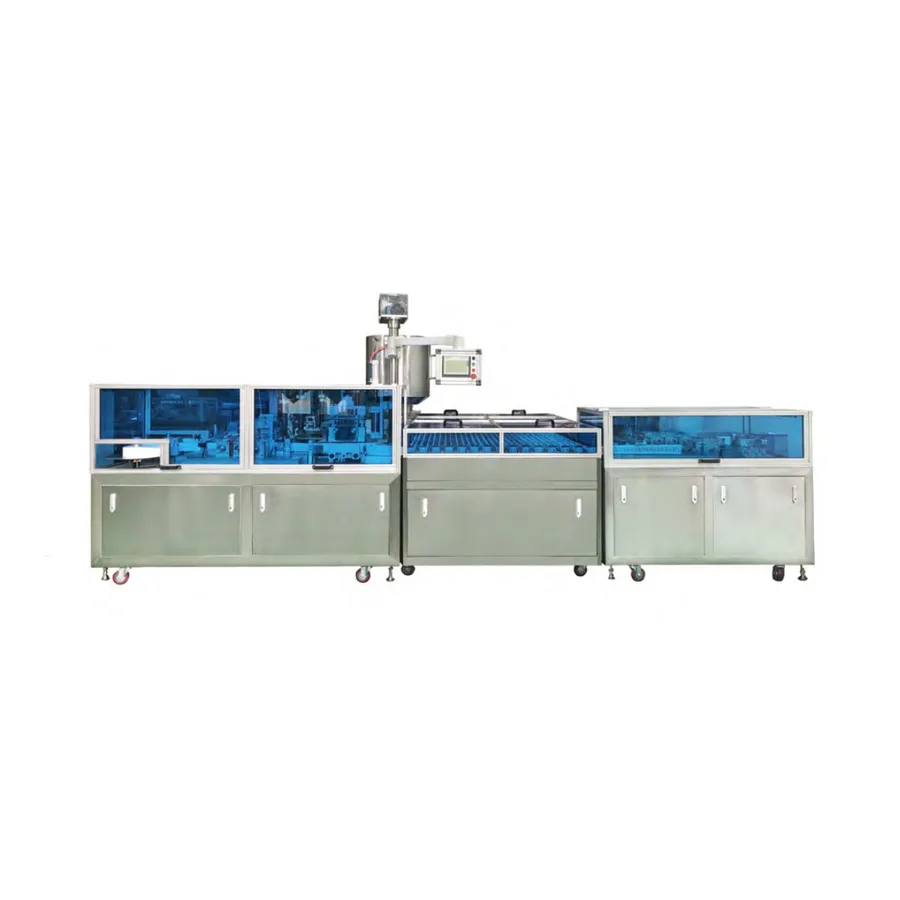

Products Show of Suppository Filling Machine
