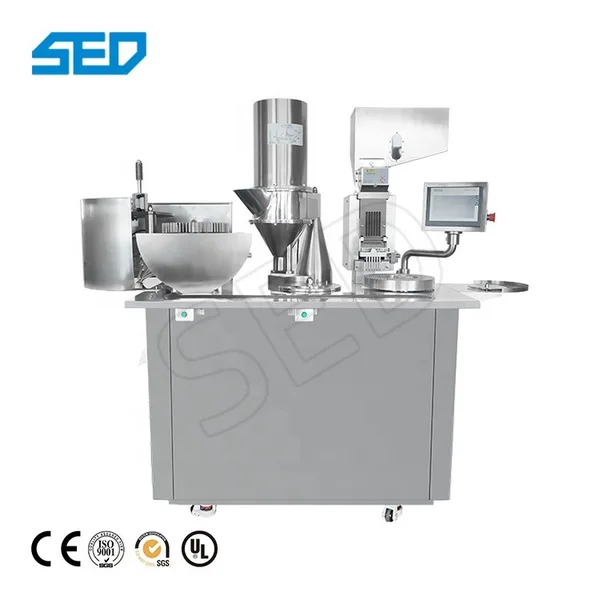

Pharmaceutical Semi-Auto Capsule Filler Capsule Making Machinery Equipment

Product Overview of Powder Capsule Filler

The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc.

The machine is adopted programmable control system, touch panel operation, step-less transudation speed-shift, and electronic automatic counter. It can automatic complete the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient.

The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.



Product Parameters of Powder Capsule Filler

Product Name	Semi automatic Capsule filling machine
Product model	SED-BJ-III
Filling Precision	±3%
Filling Materials	Powder, granule, pellet, tablet
Suitable capsule	000#,00#,0#,1#,2#,3#,4#,5#
Machine output	100-500 capsules
Machine output	About 30000 capsules / hour
Rated voltage	220V 50HZ
Rated power	4kW
Host weight	350KG
Outline size	1140X700X1630mm



Feature of Powder Capsule Filler

Higher throughput up to 45,000 capsules per hour.

Inline capsule polishing and sorting.

Capsule polishing and sorting is not required by an operator.

Automatic separation of empty capsules after loading - no manual turning required.

No additional power consumption.

No need to store filled capsules for polishing.

After one rotation of the loading ring, the loader automatically disengages.

Digital display of all operations controlled by the PLC.

The auger with four speeds can fill different types of powders and granules.

Improved hopper design reduces powder disassembly and unloading time.

Automatic hopper feeding mechanism reduces weight variation and increases productivity.

When the loading ring is full, the automatic separation of the loader minimizes operator attention and ensures optimal production.

Infinitely variable filling table speed ensures dosing accuracy.

The automatic hopper feeding mechanism eliminates weight variations, reduces operator fatigue and increases productivity.

A choice of four Augur speeds enables the machine to handle a wide range of powders from highly hygroscopic to very free-flowing.

The automatic capsule closure system ensures faster and safer closure and ejection of filled capsules.

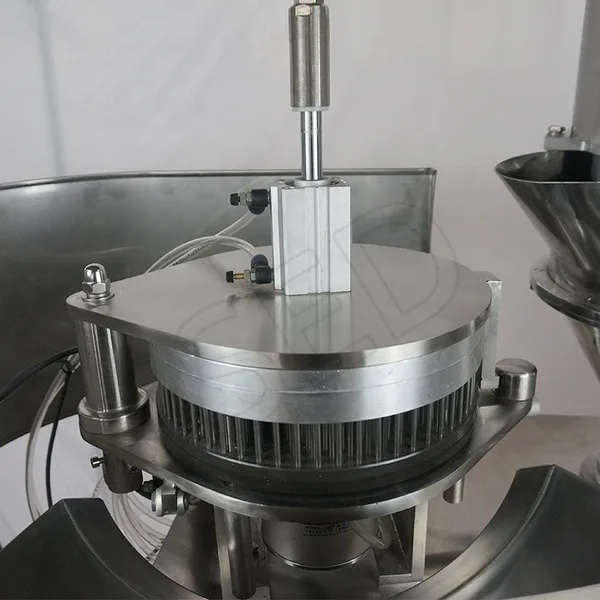

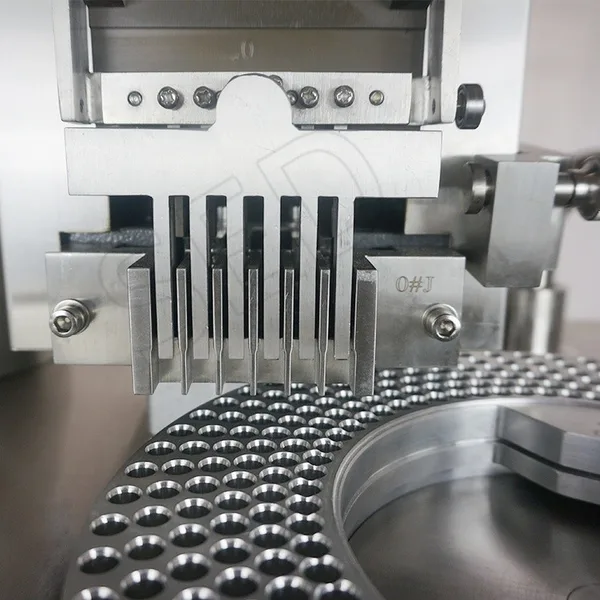

Product Show of Powder Capsule Filler​

Application of Powder Capsule Filler

This product is a special capsule filling machine suitable for small and medium-sized pharmaceutical factories, hospital preparation laboratories, etc.
