Capsule Filling Machine
Pharmaceutical Pellets Hard Gelatin Semi Automatic Capsule Filling Machine
Product Description of Capsule Filling Machine The capsule filler can handle all capsule sizes from 000 to 5. A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely. Detailed Parameters of Capsule Filling Machine Technical Parameters Model SED-BJ-III-A Production capacity(pcs/h) 10,000-22,500 Motor(kw) 220V/380V 50Hz 3 phase, 4 Kw Net weight(kg) 420 Overall size(mm) 1140*700*1630mm Applicable capsule 000#-5# Air compressor (MPa) 0.03m3/min 0.7Mpa Accessory equipment 1 vacuum pumps, air compressor (user suppl
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-BJ-III-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Production capacity(pcs/h)
- 10000-22500 capsules/h
- Motor(kw)
- 220V/380V 1P/3P 4.0KW
- Net weight(kg)
- 420kg
- Overall size(mm)
- 1140*700*1630mm
- Applicable capsule
- 000#-5#
- Accessory equipment
- 1 vacuum pumps, air compressor (user supplied)
- key word
- Capsule Filling Machine Automatic Capsule Filling Machine
Product Description of Capsule Filling Machine
Detailed Parameters of Capsule Filling Machine
| Technical Parameters | |
| Model | SED-BJ-III-A |
| Production capacity(pcs/h) | 10,000-22,500 |
| Motor(kw) | 220V/380V 50Hz 3 phase, 4 Kw |
| Net weight(kg) | 420 |
| Overall size(mm) |
1140*700*1630mm |
| Applicable capsule |
000#-5# |
| Air compressor (MPa) |
0.03m3/min 0.7Mpa |
| Accessory equipment | 1 vacuum pumps, air compressor (user supplied) |
| Filling agent | Powder / granule |

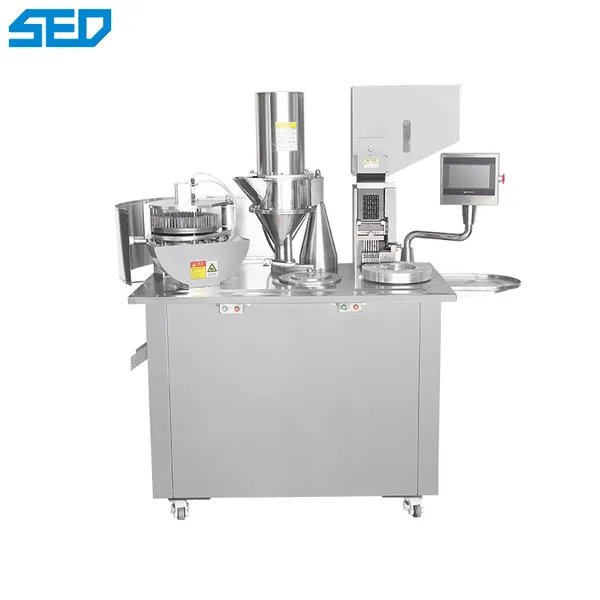

Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
