Liquid Filling Machine

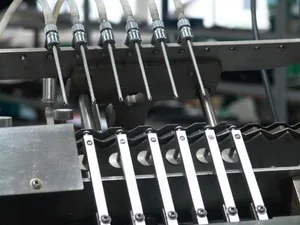

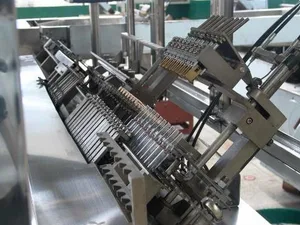

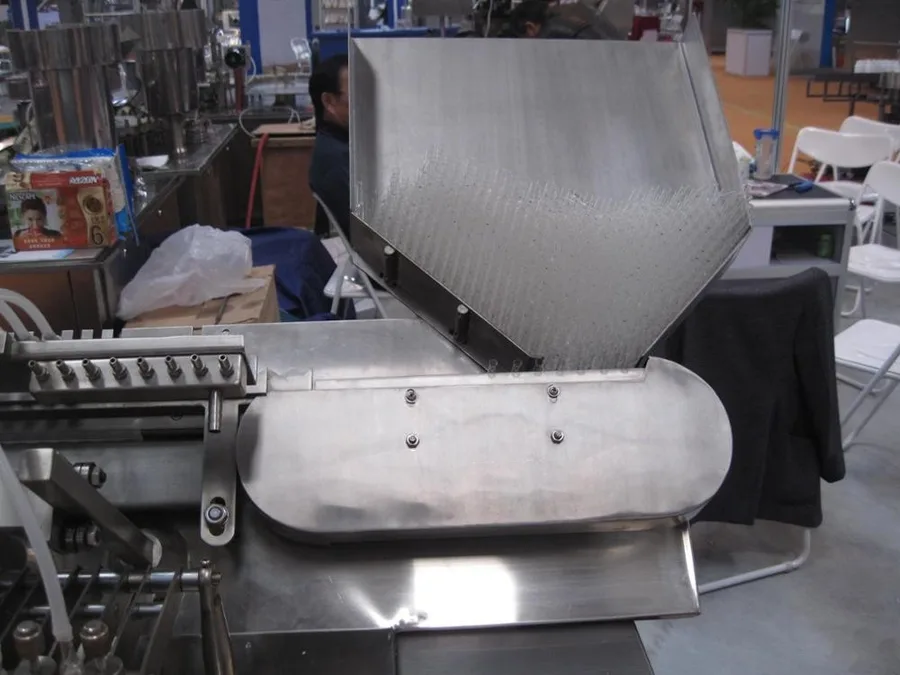

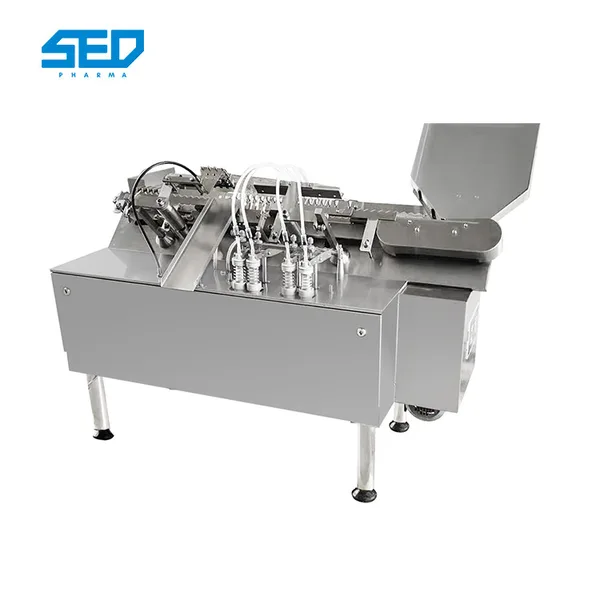

Pharmaceutical Oral Ampoule Liquid Filling And Sealing Machine
Machine Parameters Name Ampoule Filling and Sealing Machine Model SED-4AGL-10-C Filling volume 5-10ml Production capacity 6000-8000 bottles/hour Total motor power 0.75kw Material Stainless steel 304 Dimensions 1650*1100*1300mm Packing size 1800x1300x1500mm Gross weight 500kg Product Description of Liquid Filling And Sealing Machine It is suitable for ampule filling and sealing in pharmaceutical factories. This machine has a 4-station stepping transmission system. Four bottles are used as a group at a time, and they are sent to each point separately to complete the separat
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-4AGL-10-C |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Pharmaceutical Oral Ampoule Liquid Filling And Sealing Machine
- Filling Range
- 5-10ml
- Capacity
- 6000-8000 bottles/hour
- Motor Power
- 0.75kw
- Overall Size
- 1650*1100*1300mm
- Key words
- Ampoule Filling and Sealing Machine
Machine Parameters
| Name | Ampoule Filling and Sealing Machine |
| Model | SED-4AGL-10-C |
| Filling volume | 5-10ml |
| Production capacity | 6000-8000 bottles/hour |
| Total motor power | 0.75kw |
| Material | Stainless steel 304 |
| Dimensions | 1650*1100*1300mm |
| Packing size | 1800x1300x1500mm |
| Gross weight | 500kg |
Product Description of Liquid Filling And Sealing Machine
It is suitable for ampule filling and sealing in pharmaceutical factories. This machine has a 4-station stepping transmission system. Four bottles are used as a group at a time, and they are sent to each point separately to complete the separation and delivery of bottles. The machine consists pre-filling with nitrogen, material filling, filling with nitrogen, preheating, sealing and other processes.
Main Feature of Liquid Filling And Sealing Machine
It has the cast steel rotating cam, which is very hard and not easy to break down. The machine with low oxygen and gas consumption, and reduces the production cost.
