Capsule Filling Machine
Pharmaceutical Industry Automatic Capsule Machine High Efficiency GMP Standard
Pharmaceutical Industry Automatic Capsule Machine High Efficiency GMP Standard Product Description of Capsule Filling Machine The SED-3800J Automatic Capsule Filling Machine, Automatic Capsule filler, high speed capsule filling machineprocesses the products for optimal productivity up to 3800 capsules per minute, featuring low-maintenance operation, minimal downtime, and overall dependable production. Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available. Detailed Parameters of Capsule Filling Machine Model:
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-3800J |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Working days after receiving advanced payment or original L/C |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- Pharmaceutical Industry Automatic Capsule Machine High Efficiency GMP Standard
- Standard
- GMP Standard
- Material
- Stainless Steel
- Filling Method
- Dosage Pin
- Usage
- Empty Capsules
- Filling Accuracy
- Higher than 99%
- Weight
- 1500kgs
- key word
- Capsule Filling Machine Automatic Capsule Filling Machine
Pharmaceutical Industry Automatic Capsule Machine High Efficiency GMP Standard

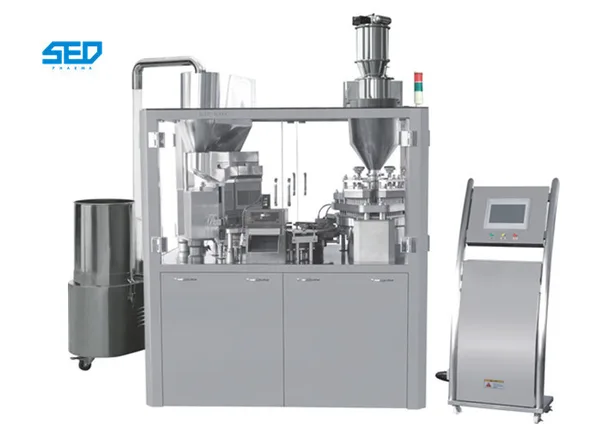

Product Description of Capsule Filling Machine
The SED-3800J Automatic Capsule Filling Machine, Automatic Capsule filler, high speed capsule filling machineprocesses the products for optimal productivity up to 3800 capsules per minute, featuring low-maintenance operation, minimal downtime, and overall dependable production.
Powder dosing uses the 5 stage tamping technology for an enhanced accuracy. Filling of pellets is available.
Detailed Parameters of Capsule Filling Machine
| Model: | SED-3800J |
| Capacity: | 3800capsules/minute |
| Manchine suitable for: | Capsule Size#00 to 5 |
| Power supply: | 380V 50Hz (it can be changed depend on your requirement) |
| Power consume: | 8kw |
| Noise standard: | ≤75dB(A) |
| Weight: | 1500kgs |
| Overail dimension: | 1375x1345x2000mm |
Main Features of Capsule Filling Machine
1. GMP design with emphasis in powder dust handling: Enclosed main turn table avoid dust getting into mechanical parts.
2. Enclosed dosing system with dust suction reduces cleaning frequency.
3. Vacuum cleaning station for segment cleanup in each cycle.
4. Efficient capsule separation by means of vacuum.
5. Automatic control for capsule and powder supply.
6. PLC control (SIEMENS) for reliable operation.
7. Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
8. Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
9. SS 304 stainless steel frames and transparent safety interlock guards.

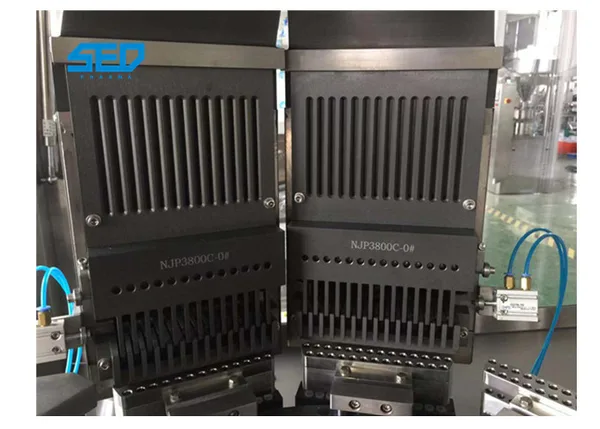

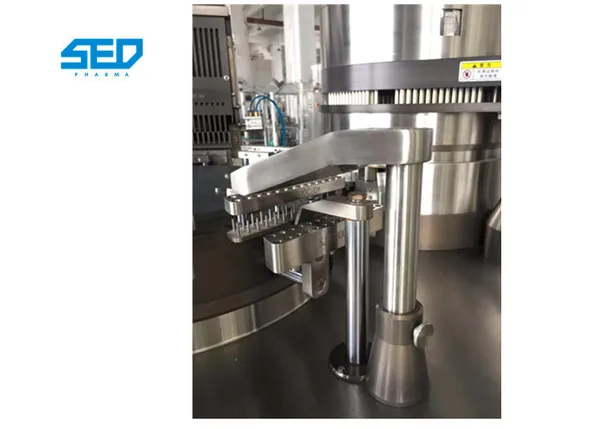

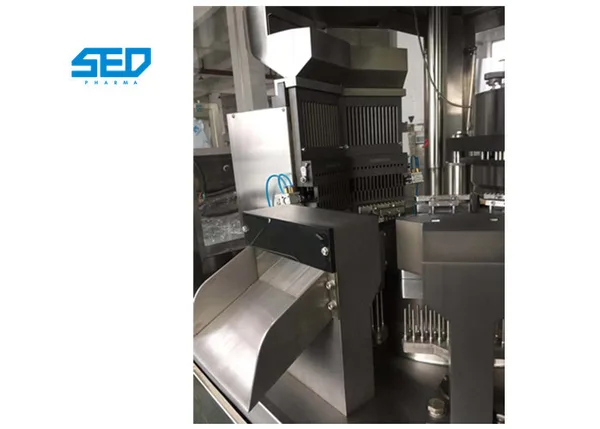

Product Show of Capsule Filling Machine
Application of Capsule Filling Machine
