Liquid Filling Machine
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles Product Description of Filling And Sealing Machine It is suitable for pharmaceutical factory ampoule filling, sealing and drawing. This machine is a 4-station stepping transmission system. Each group of 4 bottles is sent to each process point to complete the bottle delivery, nitrogen filling, and medicine filling. Post-nitrogen filling, preheating, drawing and sealing. Product Parameters of Filling And Sealing Machine Filling Range 5-10ml Glass Ampoules Capacity 6000-8000 ampoules/hour Motor Power
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-4AGL |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
- Filling Range
- 5-10ml Glass Ampoules
- Motor Power
- 0.7kw
- Material
- Contact parts SS316L,Non contact parts SS304
- Overall Size
- 1650*1100*1300mm
- Filling Station :
- 4 Nozzle Filling ,4 Nozzles Pregasing，4 for post gasing
- Burner Head
- Preheating and Sealing for 8 heads
- Laminar Air Flow Type
- Exhaust Fumes extractor with SS pipe
- material
- stainless steel
- key word
- Ampoule Filling And Sealing Machine
Pharmaceutical Glass Ampoule Filling And Sealing Machine 0.7kw 4 Nozzles
Product Description of Filling And Sealing Machine
It is suitable for pharmaceutical factory ampoule filling, sealing and drawing. This machine is a 4-station stepping transmission system. Each group of 4 bottles is sent to each process point to complete the bottle delivery, nitrogen filling, and medicine filling. Post-nitrogen filling, preheating, drawing and sealing.
Product Parameters of Filling And Sealing Machine
|
Filling Range
|
5-10ml Glass Ampoules
|
|
Capacity
|
6000-8000 ampoules/hour
|
|
Motor Power
|
0.7kw
|
|
Material
|
Contact parts SS316L,
|
|
|
Non contact parts SS304
|
|
Overall Size
|
1650*1100*1300mm
|
|
Filling Station :
|
4 Nozzle Filling ,
|
|
|
4 Nozzles Pregasing
|
|
|
4 for post gasing
|
|
Burner Head
|
Preheating and Sealing for 8 heads
|
|
Laminar Air Flow Type
|
Exhaust Fumes extractor with SS pipe
|
Advantages of Filling And Sealing Machine
The rotating cam of this machine is cast steel, which is not easy to wear. The rotating cam is guaranteed for 3 years. If there is wear within 3 years, the manufacturer is responsible for replacing it for free.
In addition, the exit pupil of the drawing head is one, which reduces the amount of oxygen and liquefied gas The lowest level also enables customers to reduce costs.

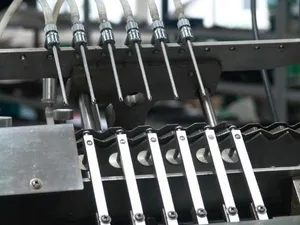

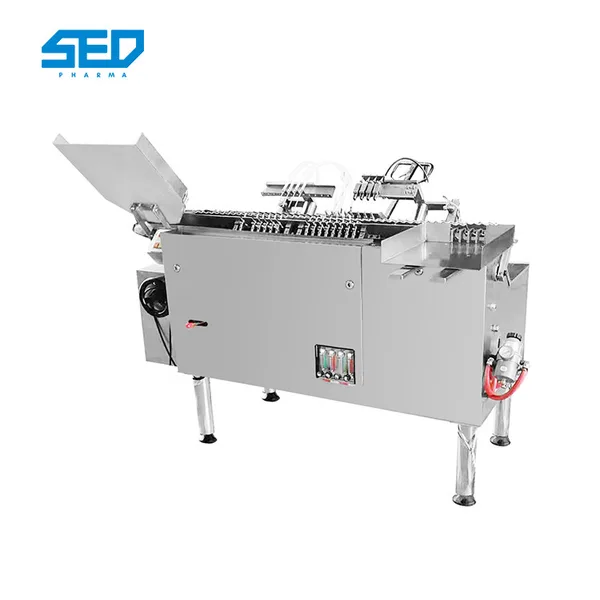

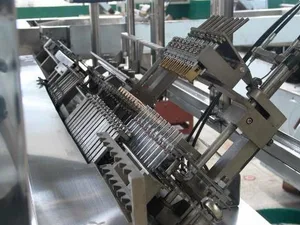

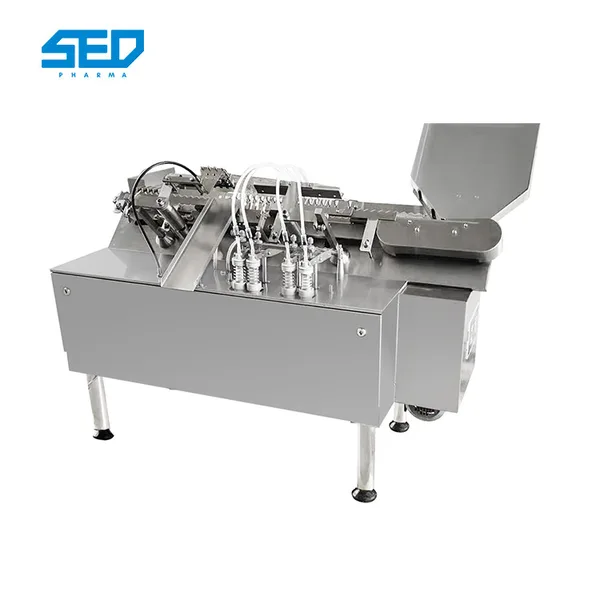

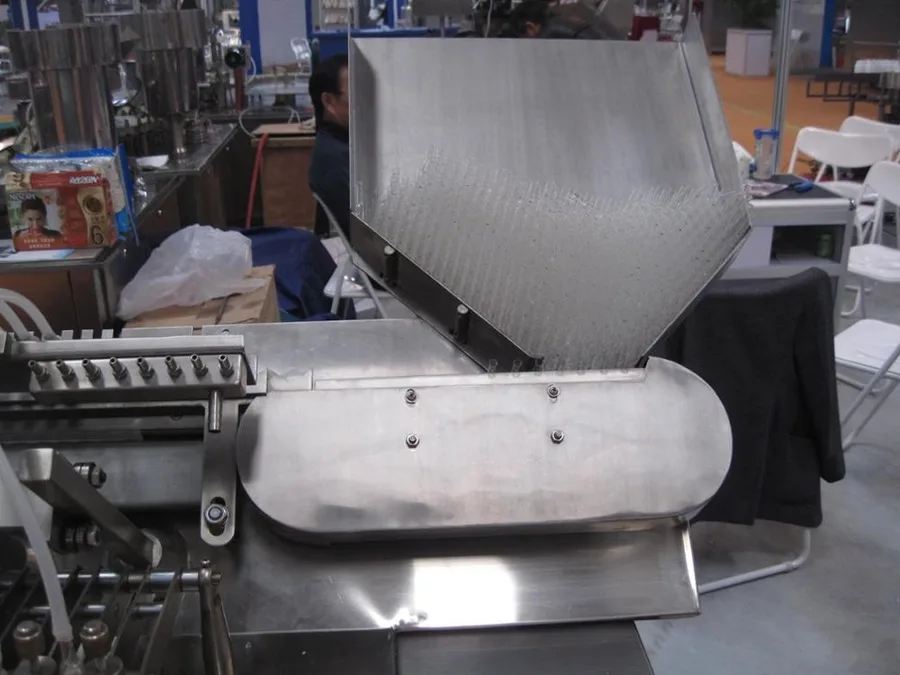

Products Show of Filling And Sealing Machine
Application of Filling And Sealing Machine
