Low Noise CE Certified Automatic Capping Machine With Safety Device

Product Overview of Capping Machine​



Torque magnetic turn table cap-rotating machine is widely used for glass bottle steel caps/screw plastic caps and plastic bottle thread caps . It equips positioning plate for interval running, capped by one , two or three magnetic moment rotating heads.



The machine has practicability in field of pharmaceutical, pesticide, chemical, foodstuff etc. It is real ideal equipment for bottle capping. It also applied to seal aluminum cap, theft proof cap, screw- thread cap etc.

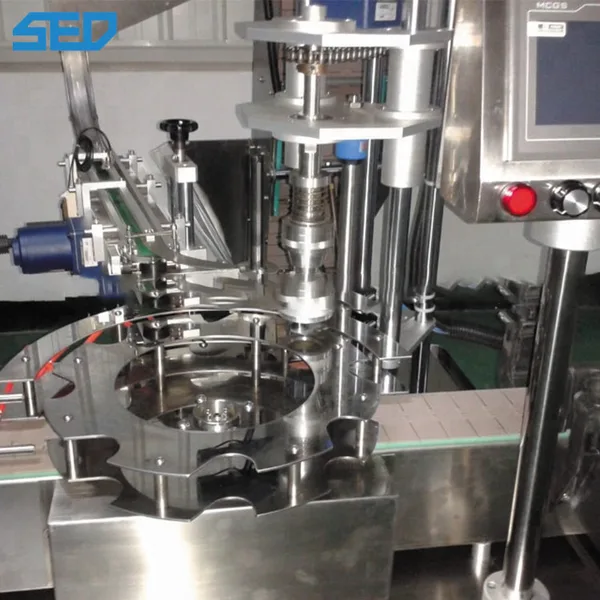

Rotating disc realize location,it is easy to change specifications and has big adjust range.



Adopt dividing bottle plate fix position.



Come in and out bottles is smooth, frequency conversion adjusting speed and easy to connection

The structure is simple ,the operation is convenient and easy to maintain.



The loose and tight of magnetic moment can be adjust do not damage the bottle and cap



The magnetic moment capping ,can be permanent use and adjust torque is convenient



The continuous operation ,completeautomatical production ,save time ,improve efficiency



Product Parameters of Capping Machine

Applied bottle range	Round/ flat/ square bottles/jar/can etc
Suitable cap size	customized
head	One capping head	Two capping heads
speed	1500~2500 b/h	3000~4500 b/h
Yield of capping	≥99%
Power supply	380V/220V 50Hz
	(according to customer)
Power	0.8kw	1.2kw
Single machine noise	≤70dB
Weight	500kg	600kg
Dimension (mm)	2000×1000×1500	2000×1000×1500



Feature of Capping Machine​



1. With high ratio of cap-feeding and cap-screwing



2. With bottle-dialing disk to position bottles, easy to change bottle specifications, & with large adjusting scope



3. Bottle in and out easily and stably, suitable for bottles of different sizes, & also easy to be connected to production line.



4. Compact & simple structure, convenient operation and maintenance.



5. Magnetic-moment capping, loose & tight adjustable, no damage to bottles & caps.



7. With safety device: Stop working when bottle is stuck



8. Convenient and easy to adjust the height of capping-head



9. Continous working & highly automation ensuring highly efficiency.



10. All pneumatic and electric components can be anti-explosive, ensuring safety operation



Application of Capping Machine

Mainly used in medicine, industry, chemical industry, food and other industries. It is a special equipment for automatic capping of plastic bottles and glass bottles.
