Capping Machine
High‑Speed Automatic Screw Capping Machine
Product Overview of Capping Machine The SED-CGP High-speed Rotary Capping Machine is a fully automatic packaging solution meticulously designed to meet national GMP standards. This high-efficiency equipment integrates automatic bottle feeding, cap sorting, cap feeding, application, and pressing into a seamless workflow. Our design philosophy focuses on providing the most accurate and efficient capping performance under maximum operating speeds. The main drive components are enclosed within the machine body to prevent material contamination caused by mechanical wear. Produ
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-CGP |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- High‑Speed Automatic Screw Capping Machine
- Output:
- 10-100 bottles/min
- Bottle Diameter
- 45mm - 120mm (Min. height >75mm if diameter <45mm)
- Bottle Height
- 50mm - 170mm
- Cap Diameter
- 40mm - 90mm
- Cap Height
- 10mm - 25mm
- Power Supply
- 220V/50HZ, 1.8KW
- Air Consumption
- 0.6Mpa, 3L/min
- Dimensions
- 2280 * 1080 * 1940 mm
- Machine Weight
- 510 KG
- Keywords
- Automatic Capping Machine
Product Overview of Capping Machine
The SED-CGP High-speed Rotary Capping Machine is a fully automatic packaging solution meticulously designed to meet national GMP standards. This high-efficiency equipment integrates automatic bottle feeding, cap sorting, cap feeding, application, and pressing into a seamless workflow.
Our design philosophy focuses on providing the most accurate and efficient capping performance under maximum operating speeds. The main drive components are enclosed within the machine body to prevent material contamination caused by mechanical wear.
Product Parameters of Capping Machine
| Model | SED-CGP (New Version) |
| Production Speed | 10 - 100 bottles/min |
| Bottle Diameter | 45mm - 120mm |
| Bottle Height | 50mm - 170mm |
| Cap Diameter | 40mm - 90mm |
| Cap Height | 10mm - 25mm |
| Power Supply | 220V/50HZ, 1.8KW |
| Air Consumption | 0.6Mpa, 3L/min |
| Machine Dimensions | 2280 * 1080 * 1940 mm |
| Weight | 510 KG |
Feature of High-Speed Automatic Capping Machine
The standout feature of the SED-CGP model is its innovative Anti-Crush Protection System. This technology is specifically designed to handle delicate, premium, or brittle caps that are often damaged by traditional machines.
- Intelligent Adjustment: The newly designed capping wheels feature a "flip-out" mechanism that automatically adjusts based on the cap's dimensions and physical resistance.
- Zero-Damage Performance: By preventing excessive squeezing, the system eliminates cap deformation and breakage during the tightening process.
- Superior Versatility: This feature allows the machine to handle a wider variety of cap materials and designs with consistent torque and zero rejects.

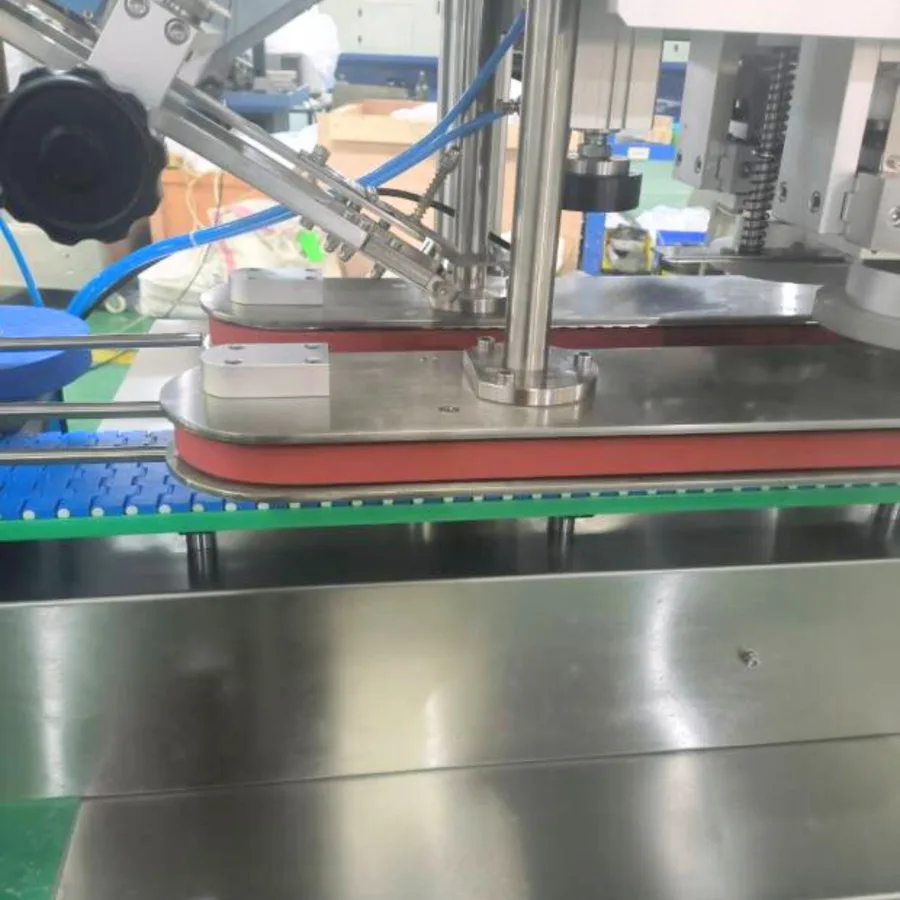

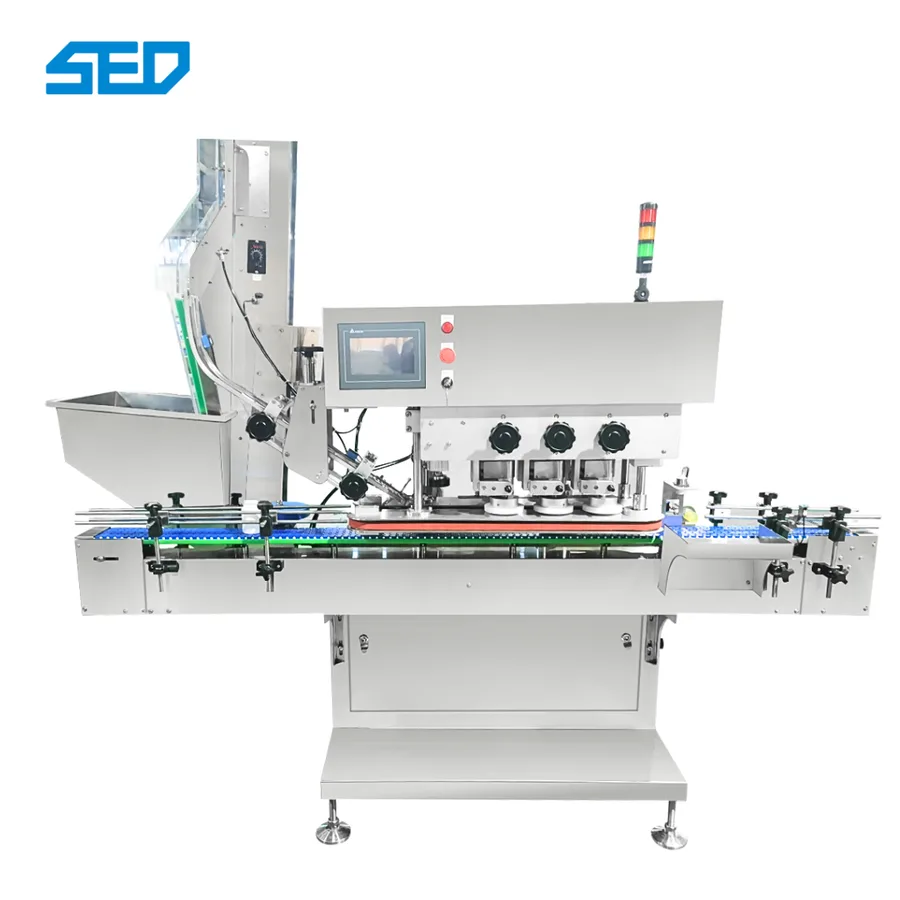

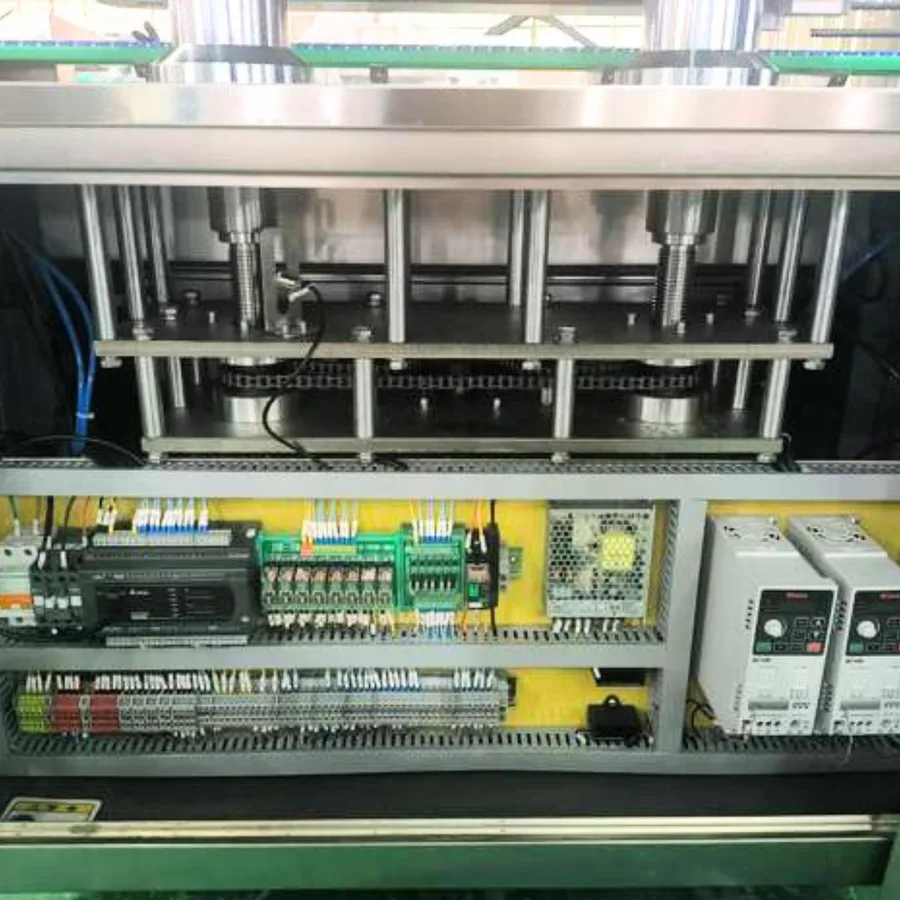

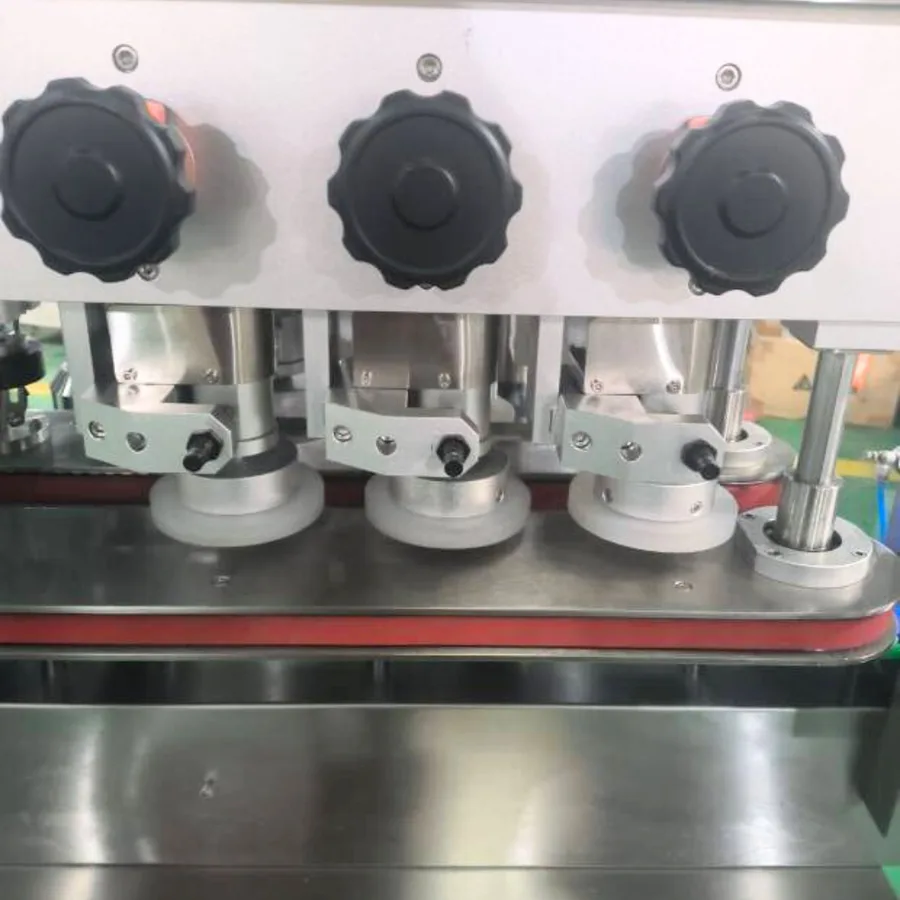

Show of High-Speed Automatic Capping Machine
Application of High-Speed Automatic Capping Machine
The SED-CGP high-speed screw capping machine is ideal for pharmaceutical, food, cosmetic, and other bottled product industries. It is easy to operate, runs smoothly, simple to clean and maintain, making it an excellent choice for improving production efficiency.
