Automatic Bottle Capping Machine For Protein Powder Bottle




The working process of SED-CG series high-speed rolling cap screwing machine is divided into: automatic bottle feeding, automatic cap management, cap feeding, capping, capping (or capping), and automatic bottle discharging. It is a fully automatic packaging equipment designed by our company in strict accordance with the national GMP standards and process requirements.
The design and manufacturing principle of this machine is to provide the best, most accurate and most efficient capping work under the highest operating efficiency. The main transmission part of the machine is placed in the box to avoid material pollution caused by wear of the transmission mechanism and other reasons. All parts in contact with materials are polished with high precision. This machine is equipped with safety protection devices such as shutdown without cover and startup with cover. Most of the parts of the whole machine are made of aluminum alloy, and the shell is made of high-quality stainless steel plate, which makes the whole machine light and easy to handle. The height and size of the bottle can be adjusted by the user according to the height and size of the bottle cap within the scope of application. In particular, the motor control system for bottle clamping, capping and conveying is controlled by a frequency converter. Users can freely set the production volume within the design range of the machine, which provides more convenience for production arrangement and process formulation. To sum up, SED-CG series high-speed rolling capping machine is a high efficiency equipment with wide application scope, convenient operation, stable operation, convenient cleaning, convenient maintenance and durability.


Machine Parameters of Bottle Capping Machine

Product Name	Fully Automatic Capping machine
Product model	SED-CG
Production capacity	10-100 bottles / min
Applicable bottle type	15-500ml round, square and shaped bottle
Rated voltage	220V 50HZ
Rated power	1.8KW
Host weight	510KG
Outline size	2280×1080×1940mm

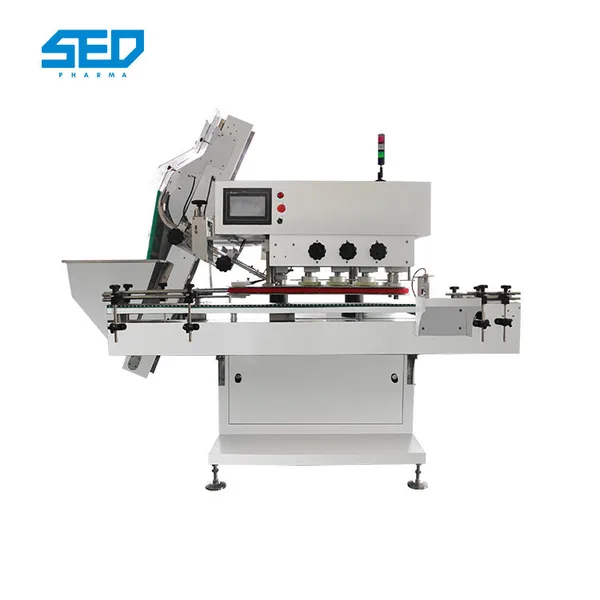

Products Show of Automatic Capping Machine

The capping machine is suit for all kind of bottles,such as protein powder bottle.
