Capsule Filling Machine

Liquid Capsule Filling Machine with PLC Control

Name: Liquid Capsule Filling Machine with PLC Control
Brand: SED Pharma

Liquid Capsule Filling Machine with PLC Control Product Description of Capsule Filling Machine It can be filled in a hard capsule with solution, suspension, microemulsion. The ceramic pump is used to add liquid, and the servo motor controls the loading system to ensure the difference in loading. The machine with accurate measurement, fiber inspection, and automatic rejection. This machine adopts the stepless frequency converter, which is convenient and easy to operate. This machine is the latest filling equipment for developing high-end products in the pharmaceutical,

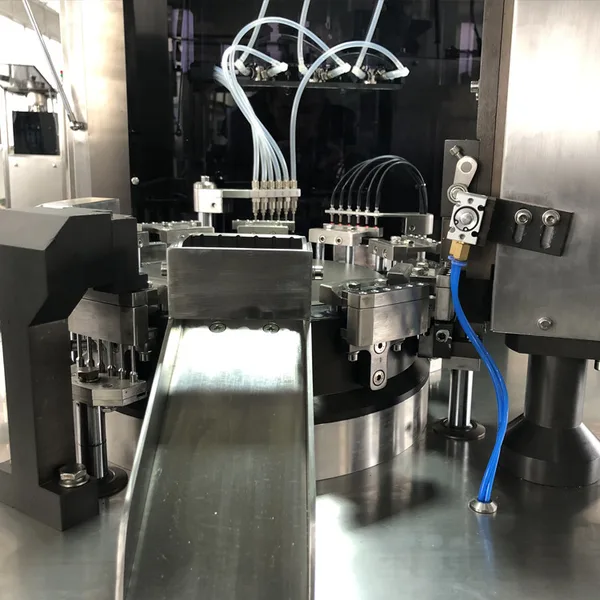

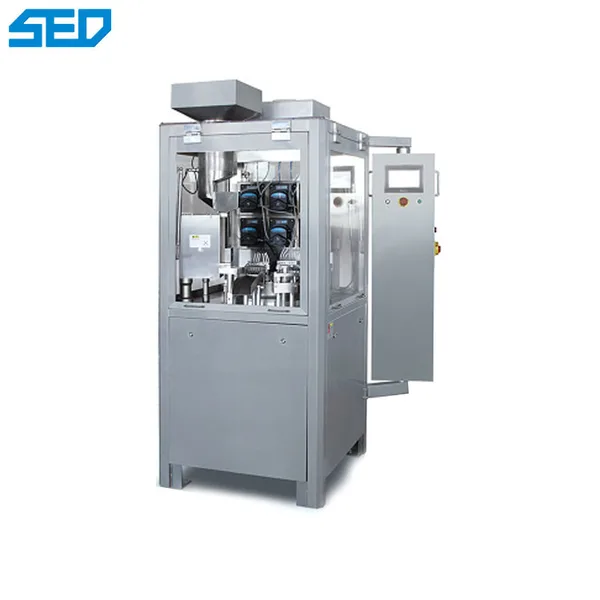

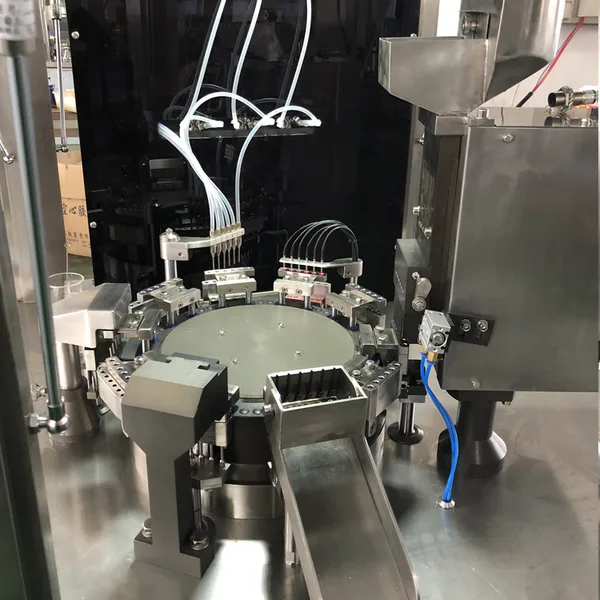

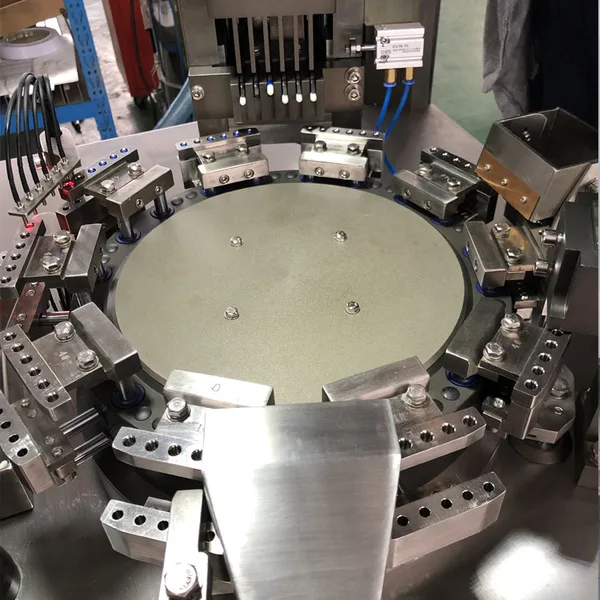

Liquid Capsule Filling Machine with PLC Control, view 1

Liquid Capsule Filling Machine with PLC Control, view 2

Liquid Capsule Filling Machine with PLC Control, view 3

Liquid Capsule Filling Machine with PLC Control, view 4

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-600YJ-C

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Liquid Capsule Filling Machine with PLC Control
Model: SED-600YJ-C
Production Speed: 36000 Capsules Per Hour
Dimension: 1000×1050×1950mm
Power Supply: 380V50HZ
Total Power: 6.45kw
Noise: <75DB(A)
Filling Accuracy: ±2%
material: stainless steel
key word: Liquid Capsule Filling Machine

Liquid Capsule Filling Machine with PLC Control

Product Description of Capsule Filling Machine

It can be filled in a hard capsule with solution, suspension, microemulsion. The ceramic pump is used to add liquid, and the servo motor controls the loading system to ensure the difference in loading. The machine with accurate measurement, fiber inspection, and automatic rejection.
This machine adopts the stepless frequency converter, which is convenient and easy to operate. This machine is the latest filling equipment for developing high-end products in the pharmaceutical, health care and other industries.

Product Parameters of Capsule Filling Machine

Production efficiency	600 capsules per minute
Filling material	Oily liquid, Solutions, Suspensions, Paste
Adaptation capsule	00-5#
Power supply	380V50HZ
Total power	6.45KW
Weight	1500KG
Overall dimensions	100010501950mm
Capsule sowing accuracy	±2%

Feature of Capsule Filling Machine

1. Hard Gelatin automatic capsule filling machine has been improved the inner design turret, and imports beeling bearing for each machine from japan directly, so that it can be sure a longer usage life and precision of the machine.

2. The working station cam runs under the good lubricating condition, and maintains the inner lunbrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.

3. The automatic capsule filling machine adopts enlarged cam, tianhong has becoje the one who matched the cam of RU140 to RU 125, while it enhanced the stability of the machines and extends the life of the machine to a great extent.

4. The automatic capsule filling machine is controlled by the computer, has as stepless timing with the frequency conversion the numeral showing makes an easy operation and clear appearance.

5. The multi-bore dosing bring a precision dosage; the good capsule applicability makes a high capsules qualified rate more than 99%. It can be filled with the Chinese traditional medicine and the western medicine.

6. Add the extra function of capsule control switch. Control the capsule outside of the machine, it is more safely and quickly.

7. Add the click-moving control system, make and easier operation and clearness.

Products Show of Capsule Filling Machine

Liquid Capsule Filling Machine with PLC Control product detail
