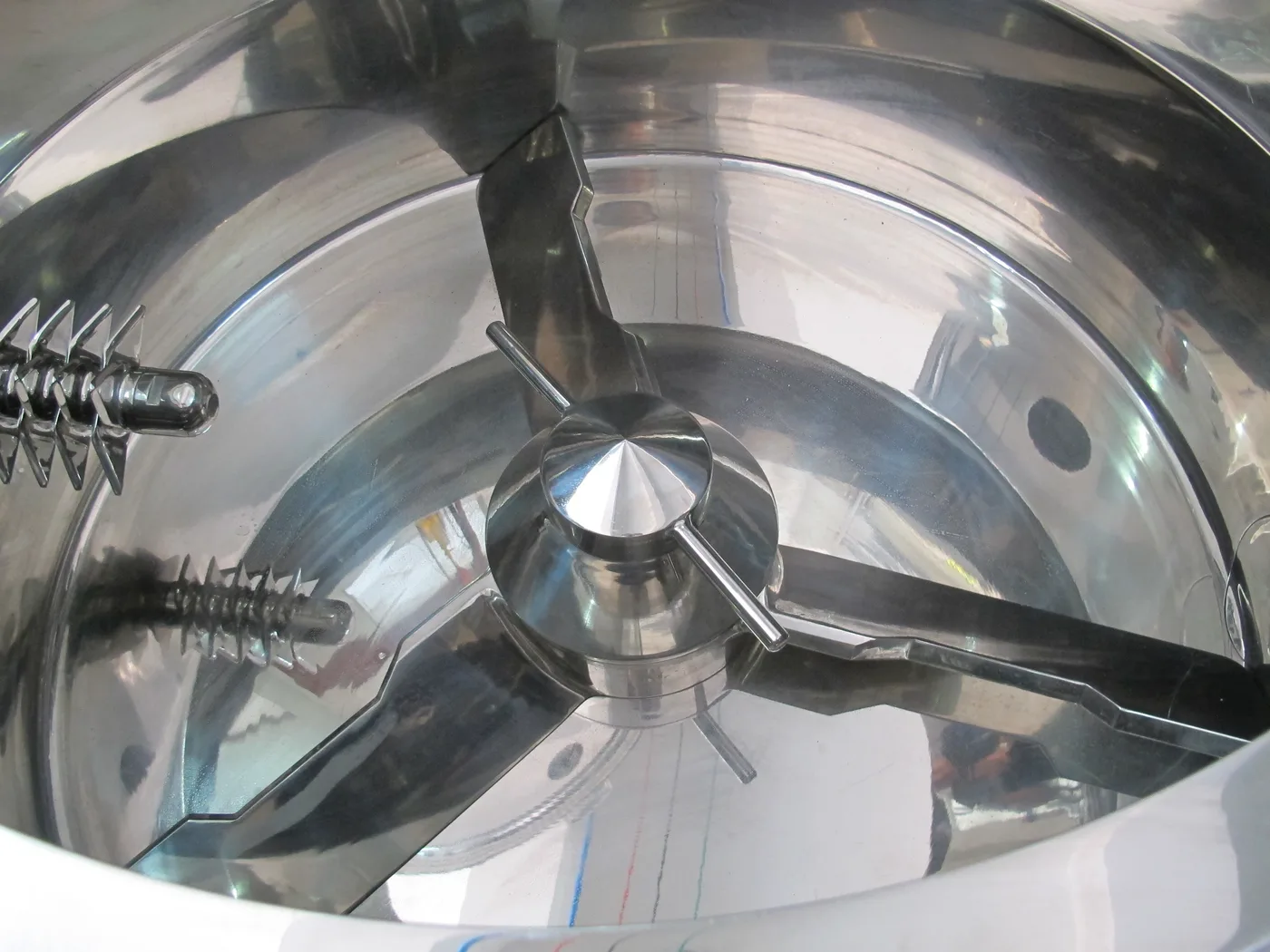

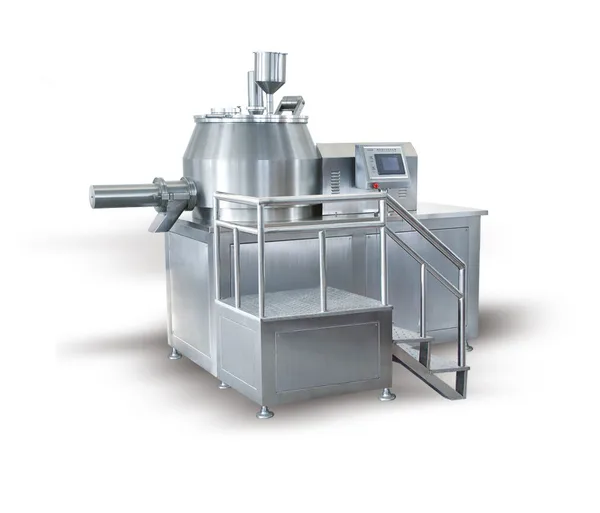

Laboratory 300L Wet Granulation Machine Wet Granulation Equipment Stainless Steel

Laboratory 300L Wet Granulation Machine Wet Granulation Equipment Stainless Steel

Product Description of Powder Granulator Machine

The powder raw material and adhesive in a cylinder are mixed fully at the bottom to turn into a humid soft material.Then it is cru-hed at a high speed and become uniform granules.



Product Parameters of Powder Granulator Machine

Volume	300L
Output	30-120kgs/batch
Operating time	Mixing:2min Granulation:7-14min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	30-220rpm
Mixing power	18.5kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Dimension	2420×1060×2150mm
Weight	1650kg



Advantages of Powder Granulator Machine

* All machine adopt Horizontal Barrel(cone) structure.

* The inner surface no dead corner,it works at sealed state and conforms to the requirement.

* Short granulating time, high efficiency and energy saving.

* Final granule uniform and the fluidization is very good. It provided ideal granule material to tablet pressing procedure.

* Compared with traditionalprocess, it can reduce 25% of binder and shorten drying time too.

* Each batch needs 2 minutes todry mixing and 1~4minutes to granulate.Compared with traditional process, its efficiency can raise 4~5times.

* It can mix uniformly even when the gravity difference between main materialand excipient is very big, without the phenomenon of delamination



Products Show of Powder Granulator Machine
