Ice Cream Cold Drink Jar Auto Label Machine Food Grade Material Made

Ice Cream Cold Drink Jar Auto Label Machine Food Grade Material Made



Product Parameters of Auto Label Machine

Model	SED-STB
Driving Mode	American AB labeling engine
Yield(pcs/min)	30-150 (depends on bottle and label size)
Operating direction	Left or Right
Conveyor Speed(m/min)	≤35
Labeling Accuracy	±1.0 mm
Inner diameter of label roll	76 mm
Outer diameter of label roll	350 mm(max)
Suitable label size	Width 15-110 mm length 15-200 mm
Suitable labeling products size	Can customized depends on client product
Printer use air	5kg/cm ²
Voltage (In China)	110V/220V/380V
Power(w)	1200W
Weight(kg)	360
Machine size	3000(L) 1250 (W) 1300 (H) mm



The Scope of Application:



The model SED-STB Specially suit for both round and sqaure bottles which need labeling on the bottle double side, with rolling label device satisfied labeling on bottle body for around.



Equipment function characteristics of Auto Label Machine



1) Control system: American AB PLC control system, with high stable operation and extremely low failure rate;

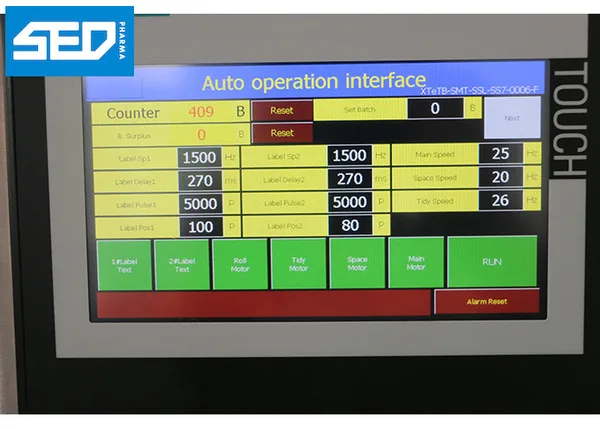

2) Operation system: 10 inch MCGS touch screen, directly visual interface easy operation ,with Chinese and English two kinds language, rich with help function and fault display function.



3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.



4) Send label system: American AB servo motor control system, stable with high speed.



5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.



6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.



7) Low voltage circuit all use the German Schneider brand.

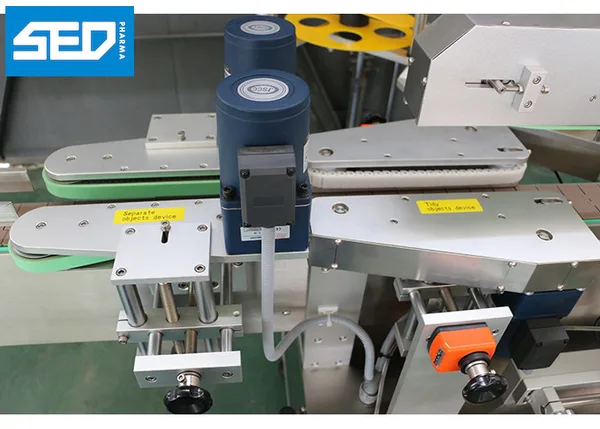

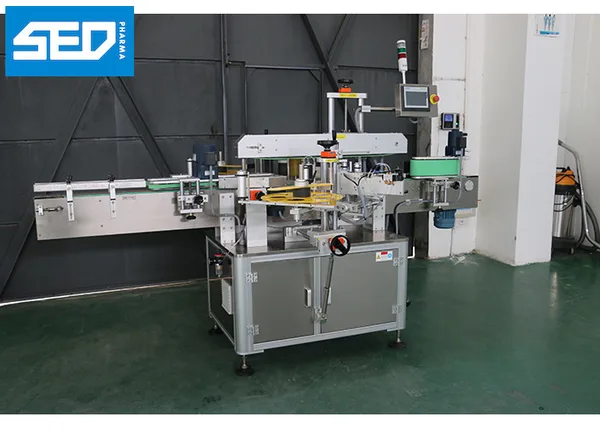

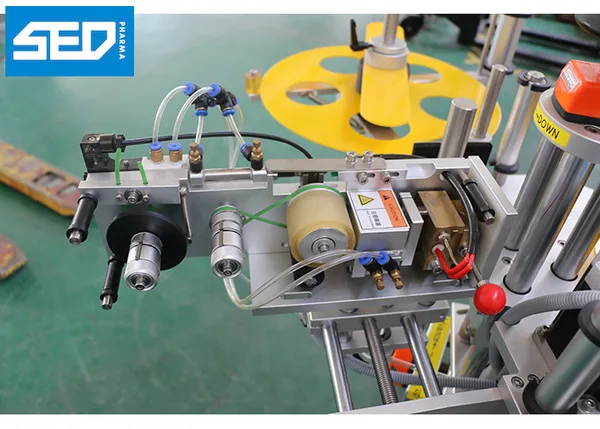

Products Show of Auto Label Machine



Application of Auto Label Machine
