Liquid Filling Machine
Hyaluronic Acid Sealing Liquid Filling Machine
Hyaluronic Acid Sealing Liquid Filling Machine Product Description of Syringe Filling Machine Syringe Filling and Closing Machine is the main equipment of Syringe production line. It is for plastic disposable pharmaceutical syringes. It suits for filling water-based solution, poultice, viscous liquid and gel, etc. The machine meet for GMP standard. Product Parameters of Syringe Filling Machine Filling Volume 0.1-3ml Filling Accuracy ≤0.3% Syringe Types 0.5ml 1-3ml Filling Speed 300~400pieces/hour (accord to1.0ml/piece) Motor Power 0.5 KW Air Supply 0.4-0.6 Mpa 20L/S Ove
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1ZGS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Hyaluronic Acid Sealing Liquid Filling Machine
- Filling Volume
- 0.1-3ml
- Filling Accuracy
- ≤0.3%
- Syringe Types
- 0.5ml 1-3ml
- Filling Speed
- 300~400pieces/hour （accord to1.0ml/piece）
- Motor Power
- 0.5 KW
- Overall Dimension
- 460L×460W×1020H
- Key Word
- Syringe Filling Machine，Liquid Filling Machine
Hyaluronic Acid Sealing Liquid Filling Machine
Product Description of Syringe Filling Machine
Syringe Filling and Closing Machine is the main equipment of Syringe production line. It is for plastic disposable pharmaceutical syringes. It suits for filling water-based solution, poultice, viscous liquid and gel, etc. The machine meet for GMP standard.
Product Parameters of Syringe Filling Machine
|
Filling Volume
|
0.1-3ml
|
|
Filling Accuracy
|
≤0.3%
|
|
Syringe Types
|
0.5ml 1-3ml
|
|
Filling Speed
|
300~400pieces/hour (accord to1.0ml/piece)
|
|
Motor Power
|
0.5 KW
|
|
Air Supply
|
0.4-0.6 Mpa 20L/S
|
|
Overall Dimension
|
460L×460W×1020H
|
|
Machine Weight
|
300 Kgs
|
Advantages of Syringe Filling Machine
1 Load a tray by hand and to load syringes tubes automatically and continuously
2 The needle of syringes are filling and the liquid going up, Be sure the liquid no overflow
3 Insert plunger with vacuum, be sure the plunger and liquid level closed enough without air.
4 Syringe machine can inspect by itself, it case accident happen.
5 The material contact parts are AISI 316Lstainless steel and ceramic
6 Star wheel type automatic produce and convenient to operate

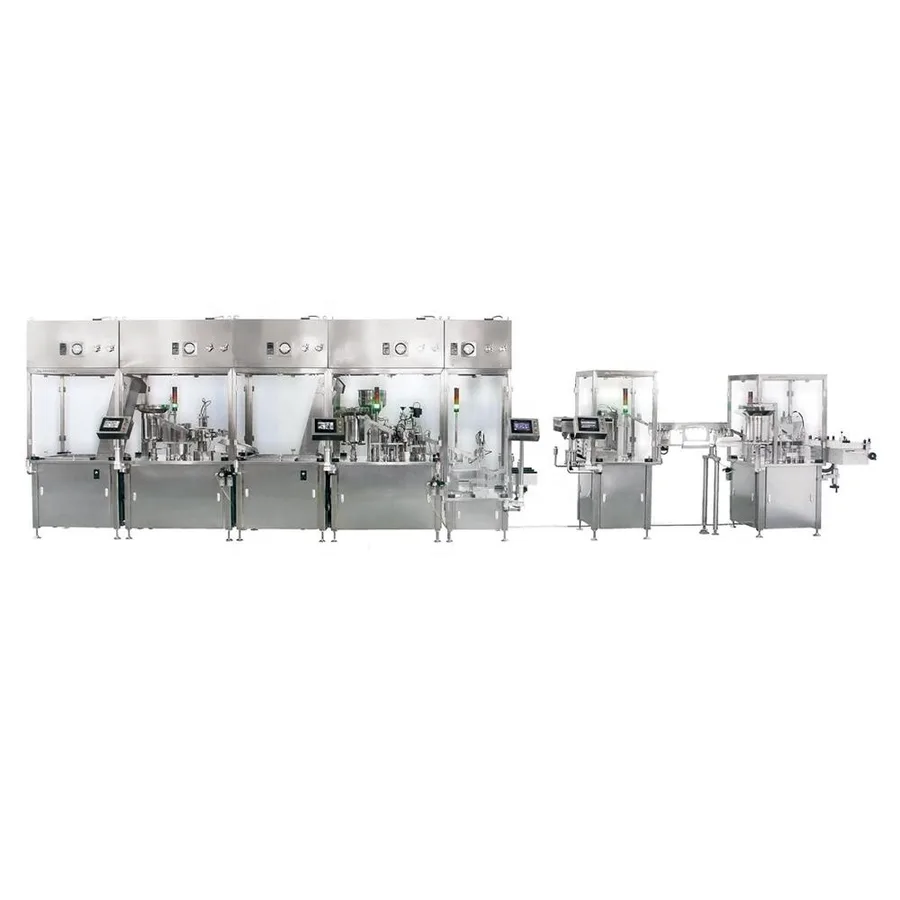

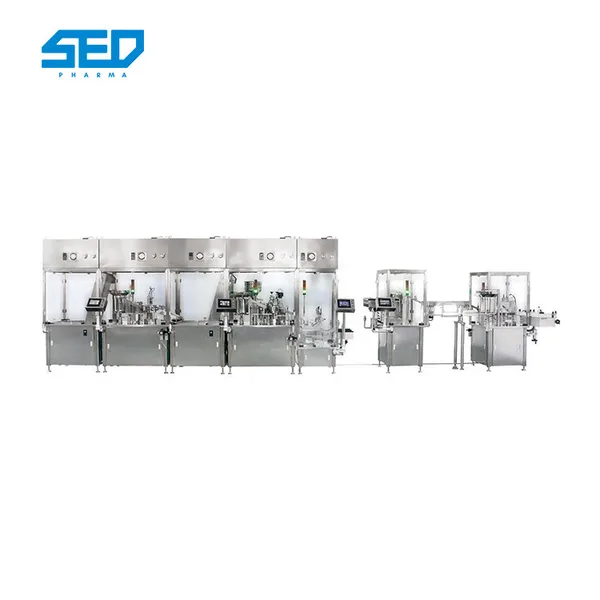

Products Show of Syringe Filling Machine
