Automatic Labeling Machine
Horizontal Wrap Around Flat Surface Labeling Machine With Auto Feeding System
Horizontal Wrap Around Flat Surface Labeling Machine With Auto Feeding System Main Technical Data Of Labeling Machine : Model SED-WT Driving Mode servo motor Yield(pcs/min) 30-200 Operating direction Left or Right Conveyor Speed(m/min) ≤40 Labeling Accuracy ±1.0 mm The inner diameter of label roll 76 mm The outer diameter of label roll 350 mm(max) The suitable size of label Width 15-100 mm length 15-80 mm The suitable size of labeling objects Customized depends on client product Printer use air 5kg/cm ² Power(w) 600W Weight(kg) 200 Machine size 1800(L) 800 (W) 1500 (H) mm
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-WT |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Horizontal Wrap Around Flat Surface Labeling Machine With Auto Feeding System
- Application
- Beverage, Chemical, Cosmetic
- Driven Type
- Electric
- Function
- Ahesive Sticker Labeling
- Labeling speed
- 30-200pcs/min
- Voltage
- 220V,380V
- Material
- SUS304 Stainless Steel
- key word
- Flat Surface Labeling Machine
Horizontal Wrap Around Flat Surface Labeling Machine With Auto Feeding System
Main Technical Data Of Labeling Machine :
| Model | SED-WT | Driving Mode | servo motor |
| Yield(pcs/min) | 30-200 | Operating direction | Left or Right |
| Conveyor Speed(m/min) | ≤40 | Labeling Accuracy | ±1.0 mm |
| The inner diameter of label roll | 76 mm | The outer diameter of label roll | 350 mm(max) |
| The suitable size of label | Width 15-100 mm length 15-80 mm | The suitable size of labeling objects | Customized depends on client product |
| Printer use air | 5kg/cm ² | Power(w) | 600W |
| Weight(kg) | 200 | Machine size | 1800(L) 800 (W) 1500 (H) mm |
Characteristics Of Labeling Machine:

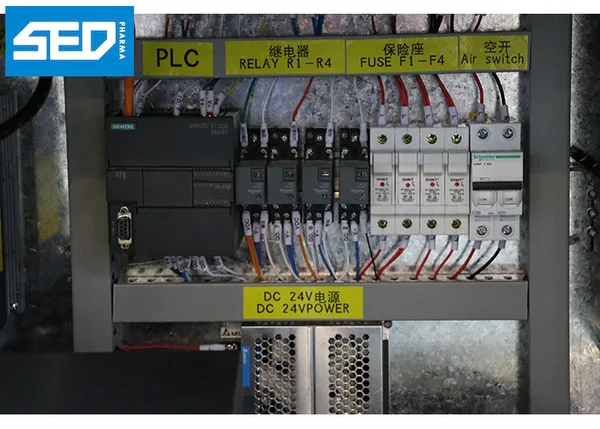

Adopt mature technology PLC control system,operation is stable and high-speed;
Using touch-screen control operating system, simple and efficient for operation;
Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;
Transmission-type rolling bottle device, make sure the label attached more firmly;
The damaged rate of bottle is less than 1/200000;
Advantages of Labeling Machine:
Imported electric elements, stable performance, low failure rate;
Adopt photoelectric detection, PLC control system, software operation, conveyor belt,
label accurately with high precision;
No bottle no label, automatic alarm when achieve leakage label.
The whole machine use material S304 stainless steel and anodized senior aluminum alloy.

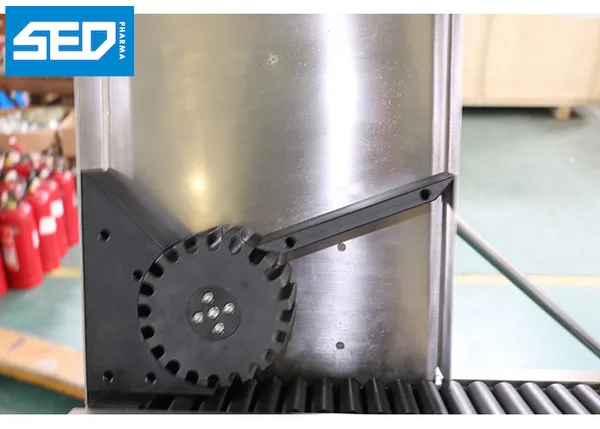

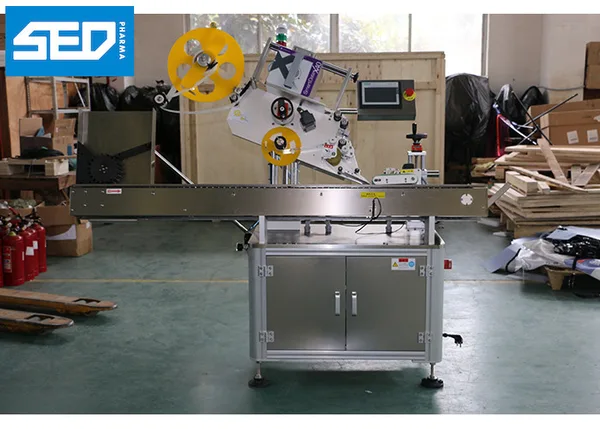

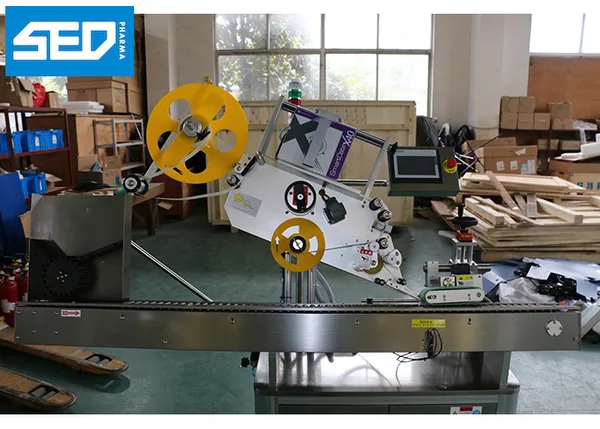

Product Show of Labeling Machine
Application of Labeling Machine:
Applicable for round objects with smaller diameter whihc can not stand when labeling,such as ampoule ,vials,blood collection tube, pen,sausage and so on.
(P.S. our labeling machine can be designed according to your needs).
