Horizontal Type Automatic Labeling Machine Glass Vial Automated Label Applicator

Horizontal Type Automatic Labeling Machine Glass Vial Automated Label Applicator



Product Parameters of Labeling Machine

Model	SED-WT	Driving Mode	servo motor
Yield(pcs/min)	30-200	Operating direction	Left or Right
Conveyor Speed(m/min)	≤40	Labeling Accuracy	±1.0 mm
The inner diameter of label roll	76 mm	The outer diameter of label roll	350 mm(max)
The suitable size of label	Width 15-100 mm length 15-80 mm	The suitable size of labeling objects	Customized depends on client product
Printer use air	5kg/cm ²	Power(w)	600W
Weight(kg)	200	Machine size	1800(L) 800 (W) 1500 (H) mm



The Scope of Application:

Applicable for round objects with smaller diameter whihc can not stand when labeling,such as ampoule ,vials,blood collection tube, pen,sausage and so on.
(P.S. our labeling machine can be designed according to your needs)



Characteristics of Labeling Machine

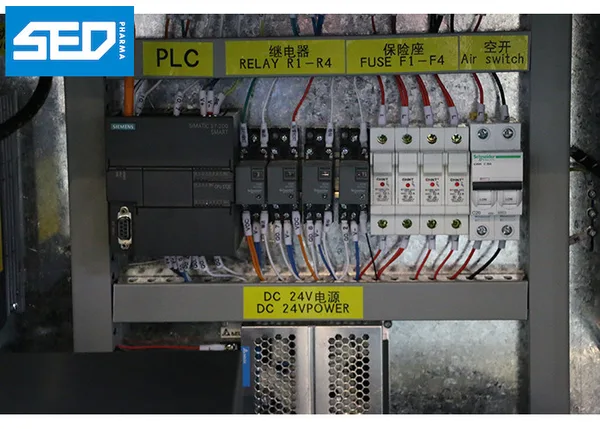

Adopt mature technology PLC control system,operation is stable and high-speed;


Using touch-screen control operating system, simple and efficient for operation;


Advanced technology of pneumatic coding system, print the batch number and expiry date clearly;


Transmission-type rolling bottle device, make sure the label attached more firmly;


The damaged rate of bottle is less than 1/200000;



Advantages of Labeling Machine​

Imported electric elements, stable performance, low failure rate;

Adopt photoelectric detection, PLC control system, software operation, conveyor belt,

label accurately with high precision;

No bottle no label, automatic alarm when achieve leakage label.

The whole machine use material S304 stainless steel and anodized senior aluminum alloy.

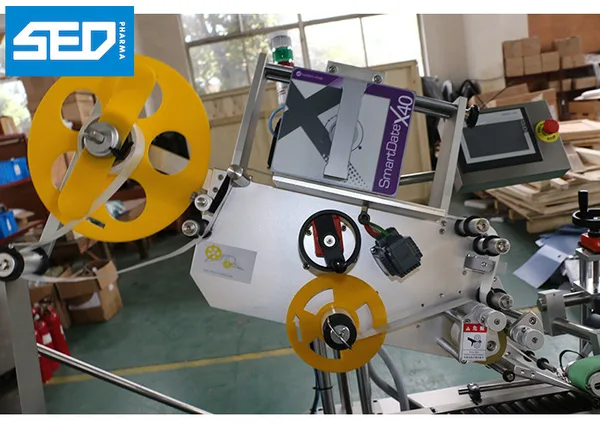

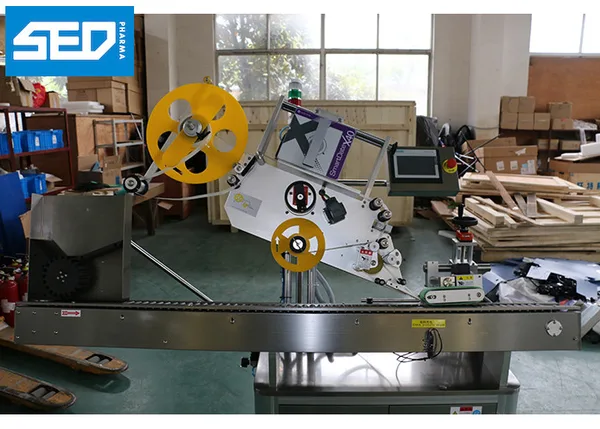

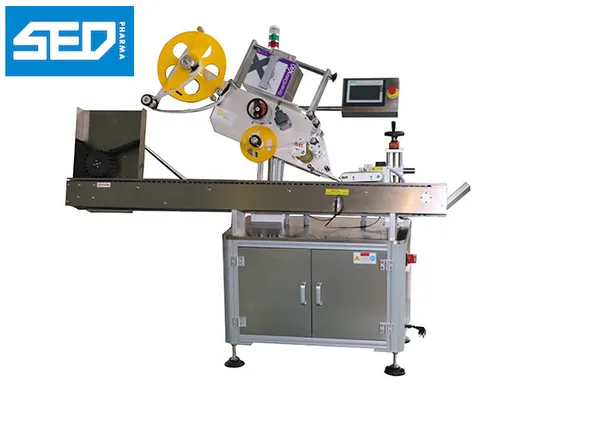

Products Show of Labeling Machine
