Automatic Cartoning Machine

Horizontal Automatic Cartoning Machine

Name: Horizontal Automatic Cartoning Machine
Brand: SED Pharma

Introduction SED-120WZHG-A horizontal automatic cartoning machine is a high-tech product integrating light, electricity, gas and machinery. Suitable for ointment drugs (aluminum bottles and plastic bottles) and flexible packaging, pallet automatic packaging boxes. The working process is the delivery of items; the delivery of the drug instructions (automatic folding and stacking of 1-4 folds); the carton is automatically opened and delivered, and the materials are loaded with the folded instructions into the carton at the same time; and complete Complex packaging processes s

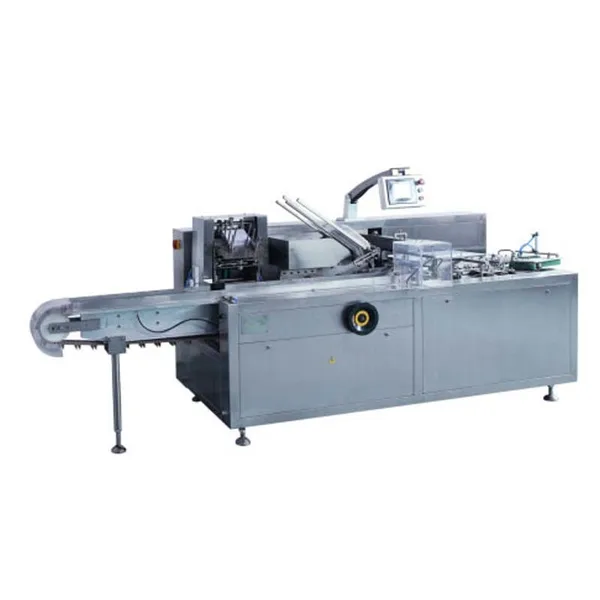

Horizontal Automatic Cartoning Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-120WZHG-A

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	50-60 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Horizontal Automatic Cartoning Machine
Applicable cap: crown cap
Applicable bottle diameter: Φ 50-100mm (bottle can be round or flat)
Applicable height of bottle: 10-350mm
capacity: 2000-5000 B.P.H
Electrical: 380VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz)
Power: 0.75KW
Machine weight: 600KG

Introduction

SED-120WZHG-A horizontal automatic cartoning machine is a high-tech product integrating light, electricity, gas and machinery. Suitable for ointment drugs (aluminum bottles and plastic bottles) and flexible packaging, pallet automatic packaging boxes. The working process is the delivery of items; the delivery of the drug instructions (automatic folding and stacking of 1-4 folds); the carton is automatically opened and delivered, and the materials are loaded with the folded instructions into the carton at the same time; and complete Complex packaging processes such as automatic batch numbering and paper tongue sealing at both ends. The appearance of the machine is all made of high-quality stainless steel casing, and innovative design is strictly in accordance with the requirements of the "GMP" standard in the pharmaceutical industry. The transmission part is designed with an overload protection function, and is equipped with an emergency stop device. The operating system adopts a man-machine interface video screen to ensure the personal safety of the operator.

Technical Parameters:

Model		SED-120WZHG-A
Encasing speed		30-120 boxes /min
Box	Quality requirement	250-350g/㎡【Base on carton size】
	Dimension range(L×W×H)	(70-180)mm×(35-85)mm×(14-50)mm
Leaflet	Quality requirement	60-70g/㎡
	Unfolded leaflet specification	(80-250)㎜×(90-170)㎜
	Fold range	【1-4】Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Main motor power		0.75kw
Machine dimension(L×W×H)		3100㎜×1100㎜×1550㎜
Machine weight		1400kg
