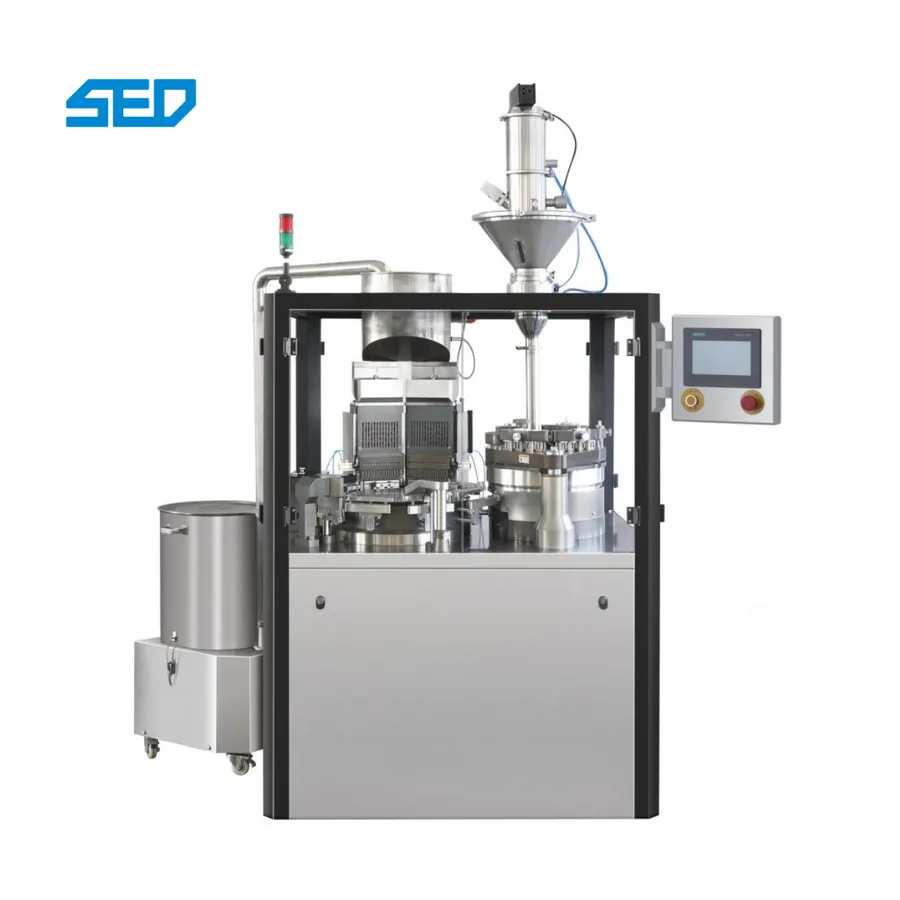

Capsule Filling Machine

Highly Output Powder Capsule Filling Machine

Name: Highly Output Powder Capsule Filling Machine
Brand: SED-Pharma

Highly Output Powder Medicament Filling Capsule Maker Machine Product Description of Capsule Filling Machine SED-3800JD-B Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules. Technical Parameters Model SED-3800JD-B Machine Weight 2200kg Overall Dimension 1395×1180×2260mm

Product Details:

Place of Origin:	China
Brand Name:	SED-Pharma
Certification:	CE
Model Number:	SED-3800JD-B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Wooden Case
Delivery Time:	35 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Highly Output Powder Capsule Filling Machine
Max.output(capsules/hr): 228000
Capsule size: 00#-5# capsule
Adapt to the filling range: Powder, Granule, Pellet, Tablet
Working noise: ≤78dBA
Overall dimension (mm): 1395×1180×2260mm
Number of holes: 27 holes
Total power: 10.5kw
Power supply: 380/220V 50Hz
Machine weight: 2200kg

Highly Output Powder Medicament Filling Capsule Maker Machine

Product Description of Capsule Filling Machine

SED-3800JD-B Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.

Technical Parameters

Model	SED-3800JD-B
Machine Weight	2200kg
Overall Dimension	1395×1180×2260mm
Total Power	10.5kw
Power Supply	380/220V 50Hz
Capacity	228000 capsules/h
Application	00#-5# capsule
Number of holes	27 holes
Working Noise	≤78dBA
Capsule on Chance	Empty capsule ≥ 99.9% Full capsule ≥ 99.8%
Compressed Air	Air consumption 12m³/h Pressure 0.3～0.4MPa

Characteristic

Efficient Feeding: Disc-valve feeding system with vibration, addressing poor powder flow while ensuring easy cleaning and maintenance.

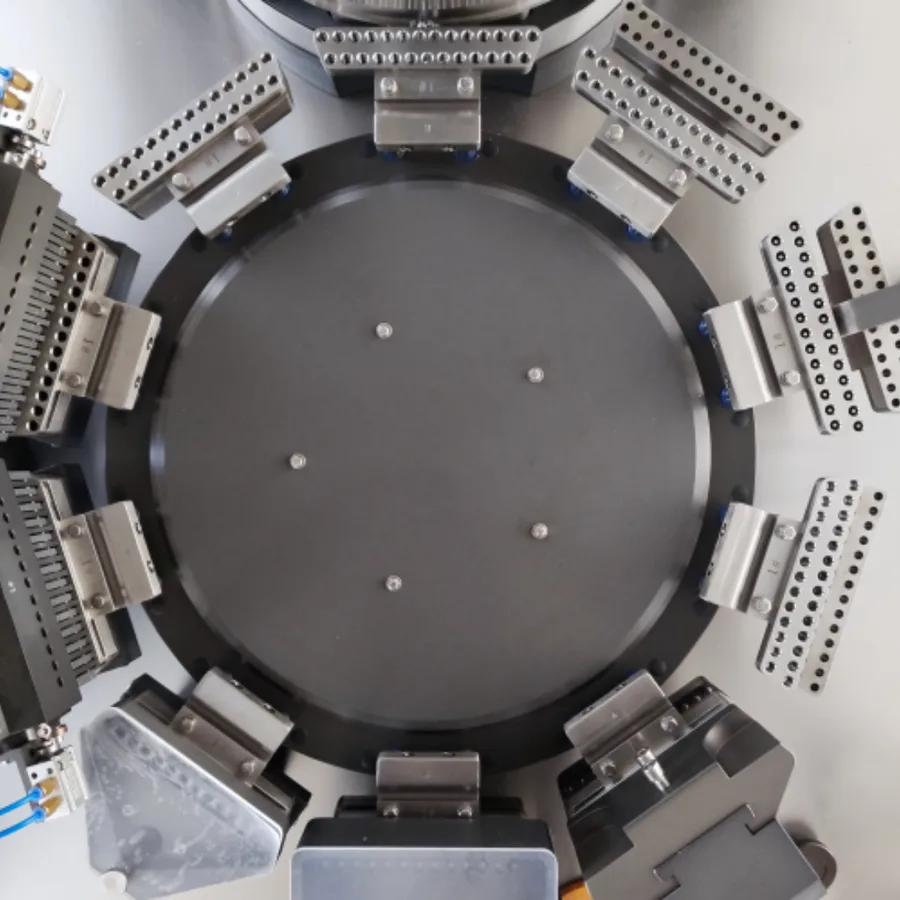

Precision Dosing & Turret: Rail-driven dosing frame with integrated turret for high accuracy, stability, and dust-free operation.
Continuous Filling: Modular vacuum filling base supports continuous production and powder recovery, minimizing waste.

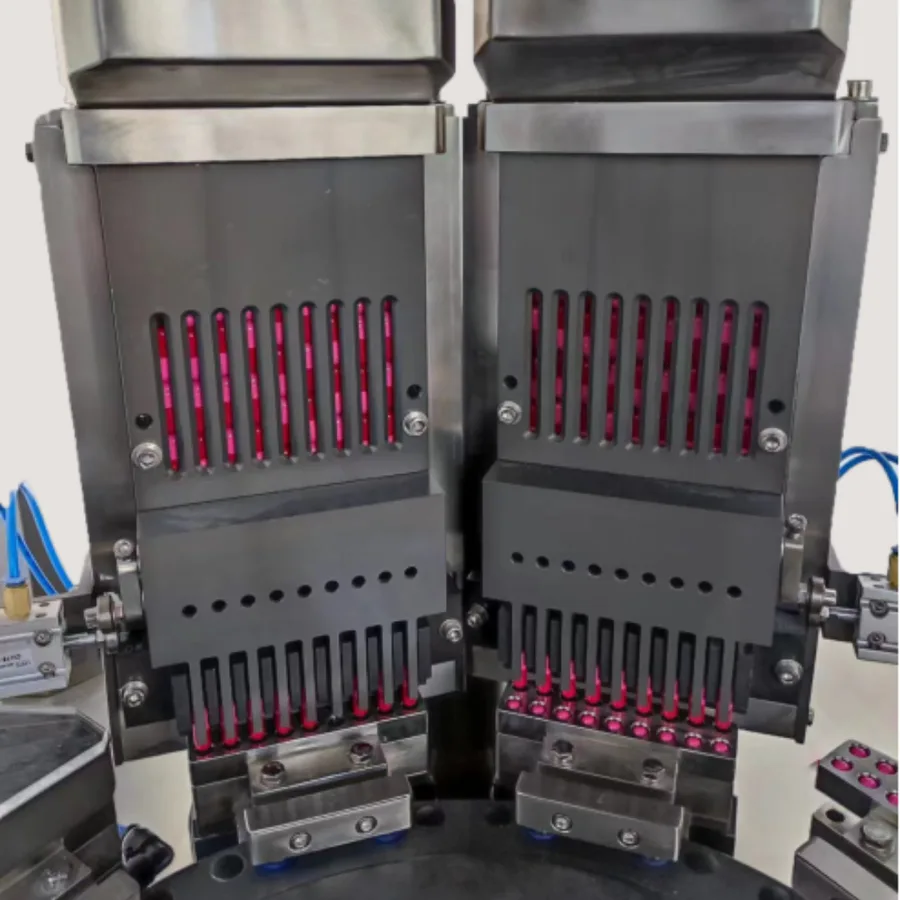

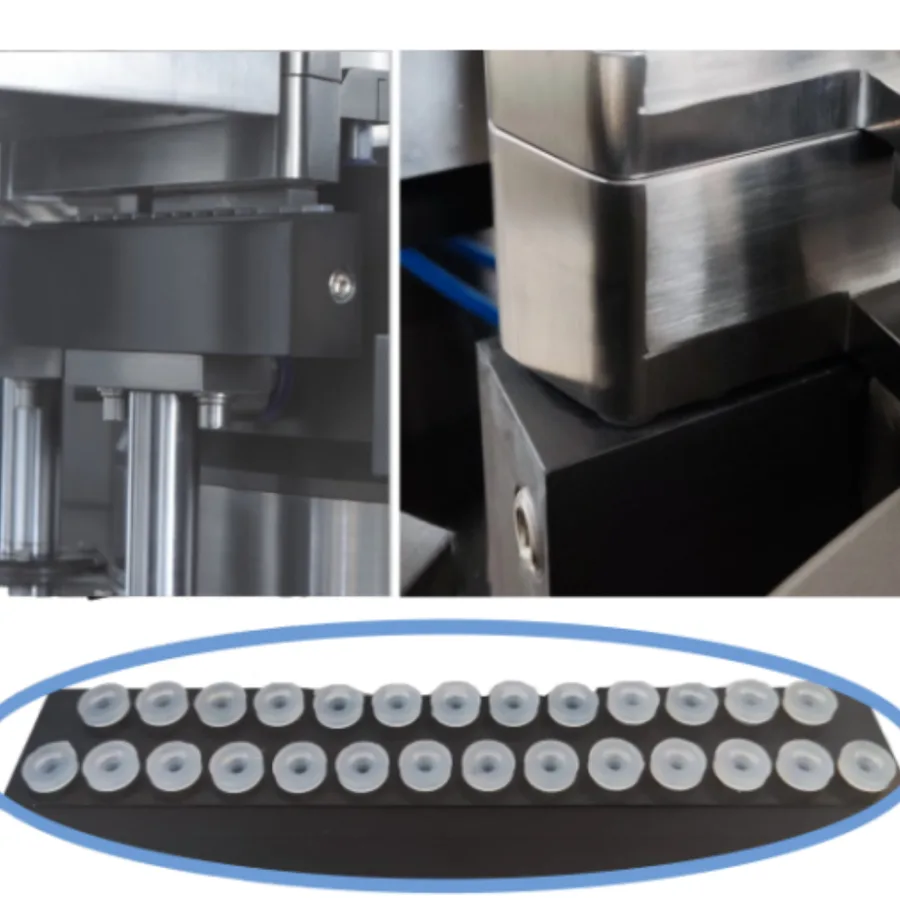

Dust-Free Capsule Handling: Capsule release mechanism with advanced suction seat ensures efficient and dust-free capsule separation.
High-Speed Silent Transmission: Cam-driven system delivers precise, high-speed, and quiet operation.
Safe Powder Recovery: Integrated powder collection system prevents cross-contamination and allows safe reuse of spilled powder.
Overall Advantage: Efficient, hygienic, and reliable—designed for long-term continuous production.
