Liquid Filling Machine

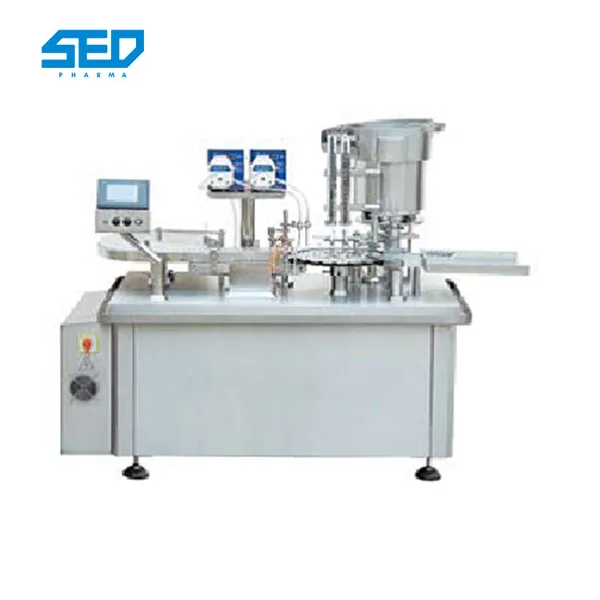

High Speed Single Head Vial Filling Machine
Product Description of Vial Filling Machine Bottle infeed→Filling→Stoppering→bottle output Filling range 0.1-20ml Filling volume accuracy ≤±1% Capacity 50 bottles per minute Voltage 220V 50HZ Main power ≤1.2kw Compressed air pressure 0.4-0.6MPa Dosage 10-25L/Min Total weight ≤800kg Scale dimension 1360MM*1000MM*1800MM Feature of Vial Filling Machine 1. Touch screen operation platform. 2. Host frequency control 3. Filling volume can be adjusted entirely or micro adjusts. 4. No filling without bottle. 5. 30L liquid storage tank with auto liquid supplement control
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1/1XGS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- High Speed Single Head Vial Filling Machine
- Filling range
- 0.1-20ml
- Filling volume accuracy
- ≤±1%
- Capacity
- 50 bottles per minute
- Main power
- ≤1.2kw
- Compressed air pressure
- 0.4-0.6MPa
- Dosage
- 10-25L/Min
- Total weight
- ≤800kg
Product Description of Vial Filling Machine
Bottle infeed→Filling→Stoppering→bottle output
|
Filling range
|
0.1-20ml
|
|
Filling volume accuracy
|
≤±1%
|
|
Capacity
|
50 bottles per minute
|
|
Voltage
|
220V 50HZ
|
|
Main power
|
≤1.2kw
|
|
Compressed air pressure
|
0.4-0.6MPa
|
|
Dosage
|
10-25L/Min
|
|
Total weight
|
≤800kg
|
|
Scale dimension
|
1360MM*1000MM*1800MM
|
Feature of Vial Filling Machine
1. Touch screen operation platform.
2. Host frequency control
3. Filling volume can be adjusted entirely or micro adjusts.
4. No filling without bottle.
5. 30L liquid storage tank with auto liquid supplement control.
