Product Description of Counting Machine



Machine Introduction

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement.

Working Principle

The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in an orderly manner through the vibration of the feeding corrugated plate, and is counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.



Detailed Parameters of Counting Machine

Model Name	SED-32S
Application	Hard capsule(000-5#) Soft Gelatin capsule Pills, tablets Chewing gum, other solid object (Diameter: 5.5-22mm)
Hopper Volume	82L
Capacity	10-100 bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter ≤50mm Height ≤180mm
Conveyor Belt Width	114mm
Compressed Air	0.6Mpa 5L/min
Voltage	220V 50HZ Single Phase
Power	1.3KW
Weight	710kg
Overall Dimension (L*W*H)	2160*1530*1700mm



Features of Counting Machine

• Uses a 3-stage adjustable vibrating platform on each counting head to assist in controlling the speed of capsule count output.
• Strong compatibility: it can counts tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills into bottles.
• Vibration blanking: 32 channels vibrate and discharge materials evenly and smoothly, without causing damage of material.
• Anti-dust system: adopting our company's anti-dust photoelectric sensor technology, it can work stably even under high dust conditions.
• Accurate counting: equipped with photoelectric sensor technology to enable high accurate capsule counting and detection in bulk.
• High degree of intelligence, with multiple detection alarm control functions such as no bottle no counting, self-diagnosis, etc.
• Innovative detection for tilted bottle and bottle jam: When the bottle is detected at the filling position or the bottle is blocked at the output port, the machine will automatically stop counting until the situation is eliminated.
• The machine comes with touch screen for easy operation.
• There is no need change mold when user changes the counting object.

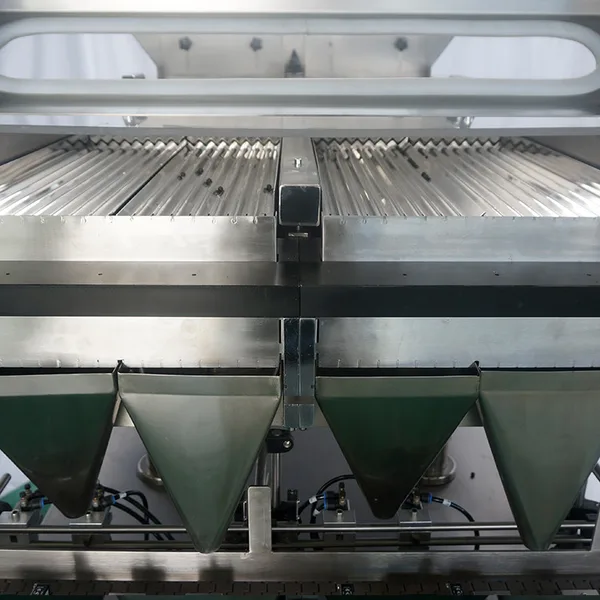

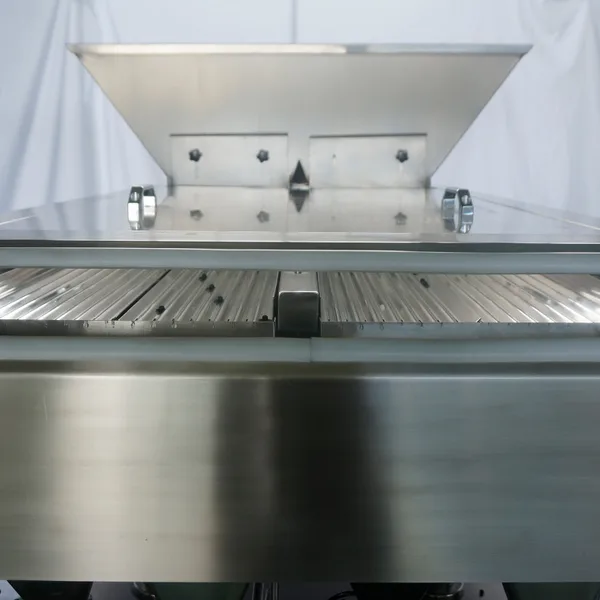

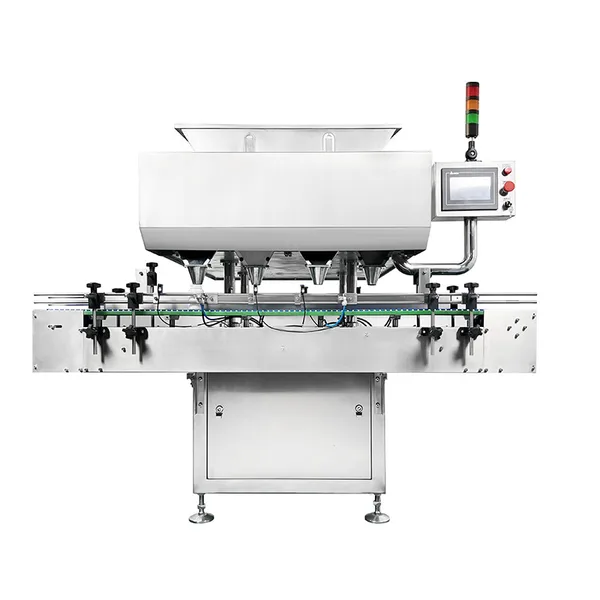

Photo show of Counting Machine



Application of Counting Machine



Counting machine is suitable for pharmaceutical, hospital, food and other industries, counting, bottling and bagging capsules, tablets, granules and other drugs or food. It is also suitable for counting, bottling, bagging and canning of other solid objects with regular shapes.
