Product Description of Tablet Counter Machine



This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 304 stainless steel, which totally meets the GMP requirement.
The bottle blocking device on the conveyor belt blocks the transferred bottle at the bottling position, waiting for filling. The material falls into the counting device in an orderly manner through the vibration of the feeding corrugated plate, and is counted by the photoelectric counting sensor and then loaded into the bottle at the bottling position.


Technical Parameters of Tablet Counter Machine

Model Name	SED-16S
Application	Hard capsule(000-5#) Soft Gelatin capsule Pills Chewing gum, tablet, other solid object (Diameter: 5.5-22mm)
Hopper Volume	70L
Capacity	10-70 bottles/min
Filling Quantity	2-9999pcs/bottle (adjustable)
Bottle Size	Diameter ≤50mm Height ≤180mm
Conveyor Belt Width	114mm
Compressed Air	0.6Mpa 3.8L/min
Voltage	220V 50HZ Single Phase
Power	0.9KW
Weight	480kg
Overall Dimension (L*W*H)	1560*1530*1700mm



Characteristic of Tablet Counter Machine

• Uses a 3-stage adjustable vibrating platform on each counting head to assist in controlling the speed of capsule count output.
• Strong compatibility: it can counts tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills into bottles.
• Vibration blanking: 16 channels vibrate and discharge materials evenly and smoothly, without causing damage of material.
• Anti-dust system: adopting our company's anti-dust photoelectric sensor technology, it can work stably even under high dust conditions.
• Accurate counting: equipped with photoelectric sensor technology to enable high accurate capsule counting and detection in bulk.
• High degree of intelligence, with multiple detection alarm control functions such as no bottle no counting, self-diagnosis, etc.
• Innovative detection for tilted bottle and bottle jam: When the bottle is detected at the filling position or the bottle is blocked at the output port, the machine will automatically stop counting until the situation is eliminated.
• The machine comes with touch screen for easy operation.
• There is no need change mold when user changes the counting object.

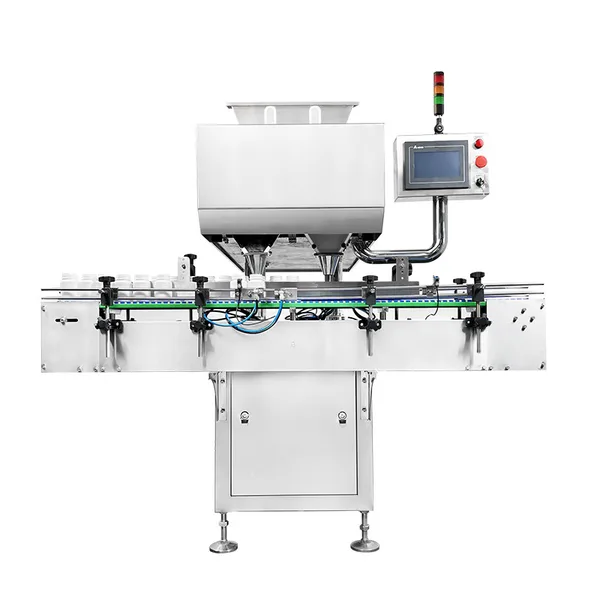

Machine Show of Tablet Counter Machine





Application of Tablet Counter Machine

it can count and pack of solid particles, such as tablets, capsules (transparent or non-transparent hard capsules, soft capsules), pills from 3 to 20mm wide into bottles,boxes and bags. It meets the requirements of GMP, suitable for research institutions, hospitals, small and medium sized enterprises and health care product plants.
