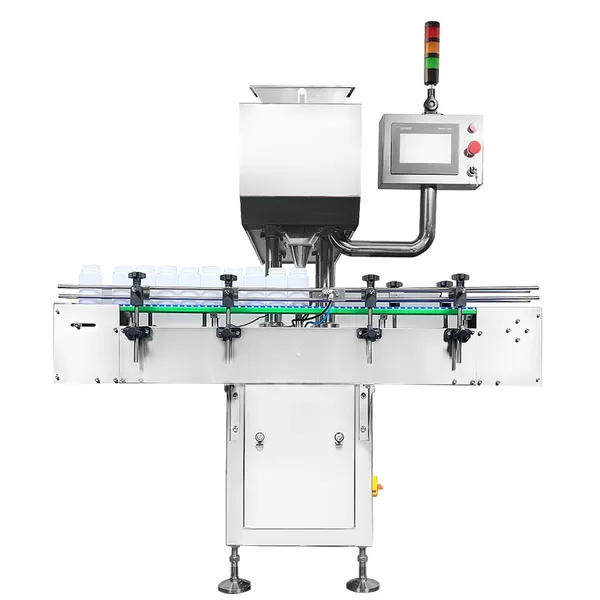

Capsule Counting Machine
High Efficient Capsule Counting Machine With Automatic 20-80 Bottles/min
High Efficient Capsule Counting Machine With Automatic 20-80 Bottles/min Product Description of Capsule Counting Machine The automatic pill counting machine incorporates 8 counting channels. The compact design of the dual track conveyor increases output capacity. Equipped with an advanced inspection system, it can count and fill all standard and irregular shapes and all sizes of tablets, capsules, caplets, softgels with 100% accuracy. Main Features of Capsule Counting Machine With touch screen ,easy to operate Avoid the materials jam Hopper mouth of the sp
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-8S |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- High Efficient Capsule Counting Machine With Automatic 20-80 Bottles/min
- Model
- SED-8S
- Production Capacity
- 20-80 bottles/min
- Voltage
- 220V/110V/380V
- Power(W):
- 1200W
- Weight
- 420KG
- Dimension(L*W*H):
- 1360*1350*1650 mm
- key word
- Capsule Counting Machine Tablet bottling machine
High Efficient Capsule Counting Machine With Automatic 20-80 Bottles/min
Product Description of Capsule Counting Machine
The automatic pill counting machine incorporates 8 counting channels. The compact design of the dual track conveyor increases output capacity. Equipped with an advanced inspection system, it can count and fill all standard and irregular shapes
and all sizes of tablets, capsules, caplets, softgels with 100% accuracy.
Main Features of Capsule Counting Machine
With touch screen ,easy to operate
Avoid the materials jam
Hopper mouth of the special structure, to prevent the materials jam, small mouth bottle can quickly bottling
Protect materials from harm
Feeding evenly with quiver, special patent filling part, no breakage of the material.
Detection and sorting function
No bottle will not count and fill. Automatically remove bottles of filling abnormalities and broken tablets.
Self-diagnose errors and stop working to make alarm at errors.
Anti-dust Using our own original high anti-dust sensor technology, the machine works
accurately with good stability in heavy dust conditions.
Technical Parameters of Capsule Counting Machine
| Item | SED-8S |
|
Production Capacity: |
20-80 bottles/min
|
| Voltage |
220V/110V/380V
|
| Power(W): | 1200W |
| Weight | 420KG |
|
Dimension(L*W*H): |
1360*1350*1650 mm
|
| Certification |
ISO 9001 CE
|
| Material |
316L Stainless Steel
|
|
Capsule size: |
000-5 and soft capsule
|

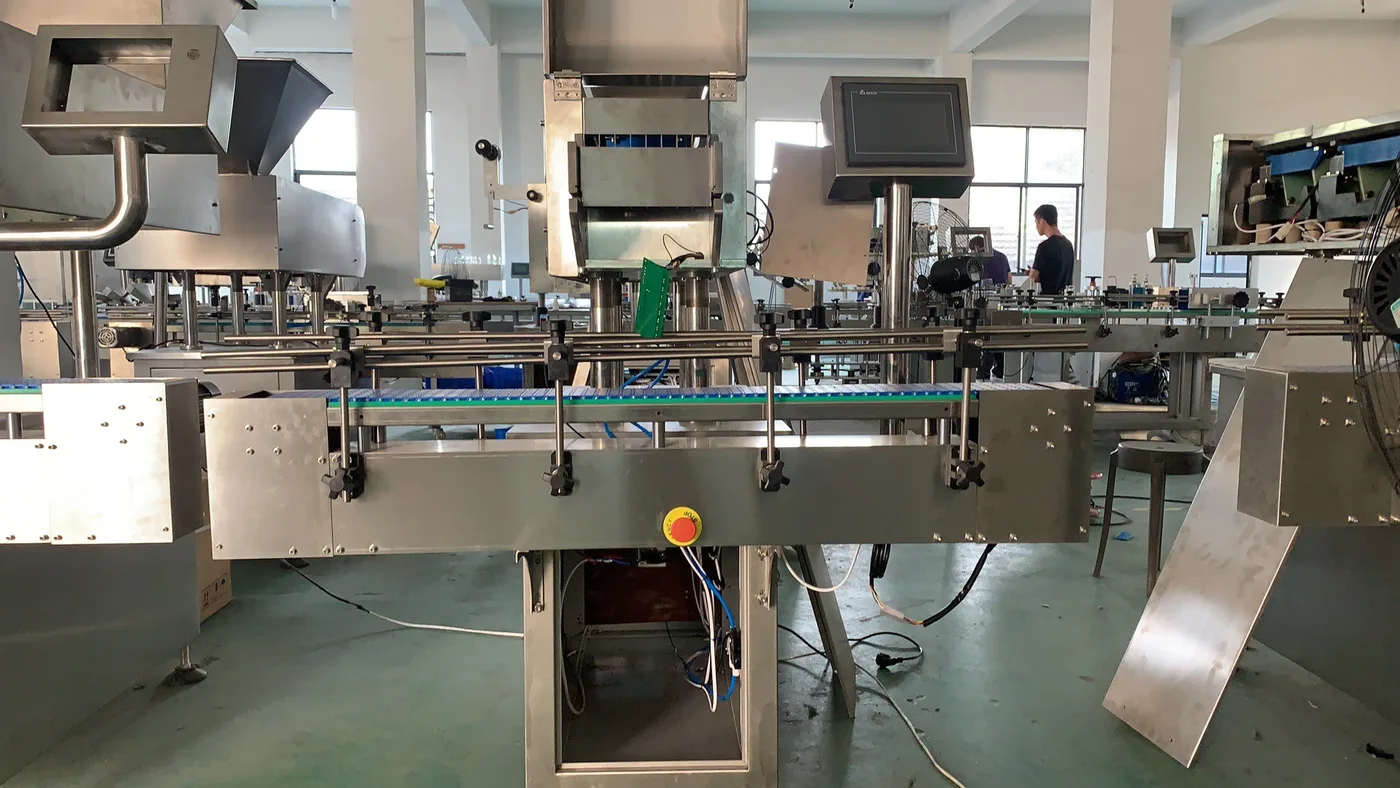

Product Show of Capsule Counting Machine
Application of Capsule Counting Machine
This machine adopts the most advanced anti-high dust electronic counting technology. Tablets (including fixed tablets), hard capsules, soft capsules (clear, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted and
dispensed. Can be bottled, boxed and bagged. Fully comply with GMP requirements, especially suitable for scientific research institutions, hospitals, new small pharmaceutical factories, health care products factories.
