Freeze Dry Machine
High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled
High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled Product introduction of Freeze Drying Machine Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials. Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1DG |
Configuration and product details
Technical overview- Name
- High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled
- Cooling water qty:
- ≥3m3/h(T≤30℃/P=0.15~0.2Mpa)
- Defrost water Quantity:
- ≥500kg(T≥30℃,P=0.1-0.2Mpa)
- Power
- 30kw
- Drying Capacity (kg):
- 10kg
- Dimension(L*W*H):
- 3230x1500x2550mm
- Voltage
- 380V50Hz
- Weight
- 2000kg
- Compressed air:
- ≥40L/min(P=0.5~0.8Mpa)
- Frozen system
- German Bitzer Brand
- material
- stainless steel
- key word
- Freeze Drying Machine
High Speed Commercial Vacuum Freeze Drying Machine PLC Touch screen Controled
Product introduction of Freeze Drying Machine
Freeze-dry (brief named Freeze-dry) is a stable process of material dried which will put the material contained with water to freeze to solid first, then make among them of the water sublimate from solid to air condition, removing water to preserve materials.
Products at solution stage are frozen through sublimation and desorption, then the solvent reduce to a certain extent, thereby preventing the formation of micro-organisms or chemical reaction between the solute and solvent that products can be preserved for a long time and maintained its nature.
Vacuum freeze-drying method is a liquid → solid → gaseous process. In freeze-drying process, "liquid bridge" between the solution particles has been frozen into "solid bridge".
The relative position of particles has been fixed and does not exist surface tension on gas-liquid interface between the two particles. With the continuous distillation of solvent, "solid bridge" continuously decrease.

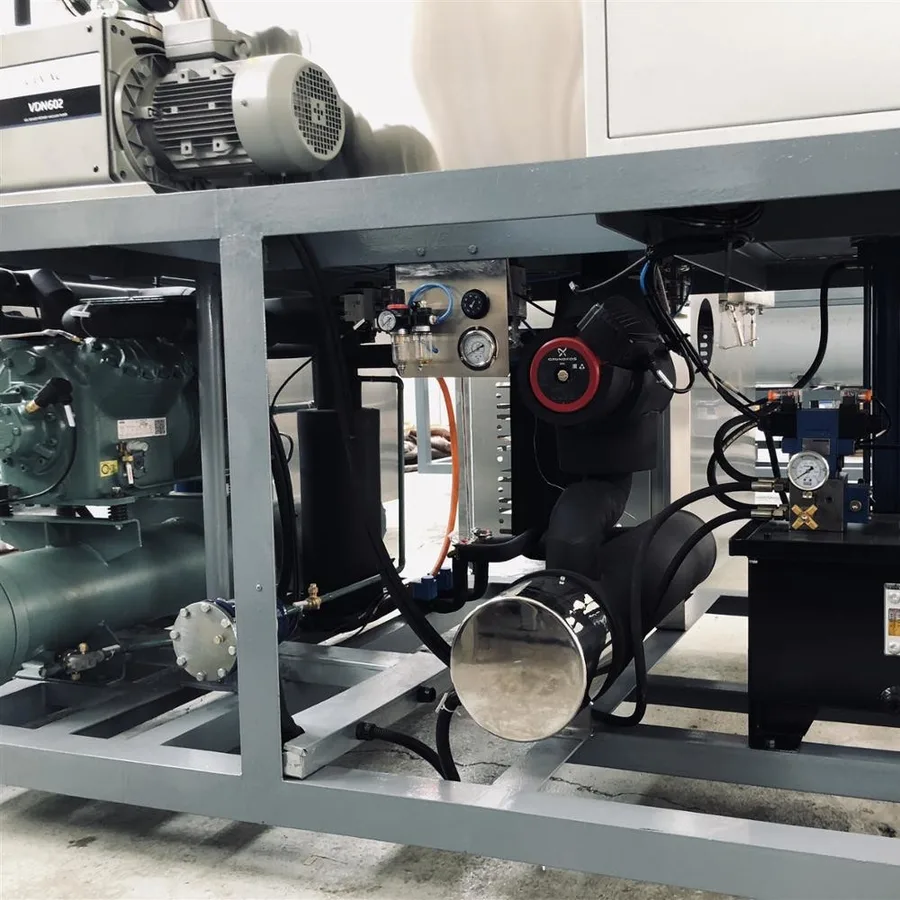

Main Parameter of Freeze Drying Machine
|
Frozen system
|
German Bitzer Brand
|
|
Vacuum system
|

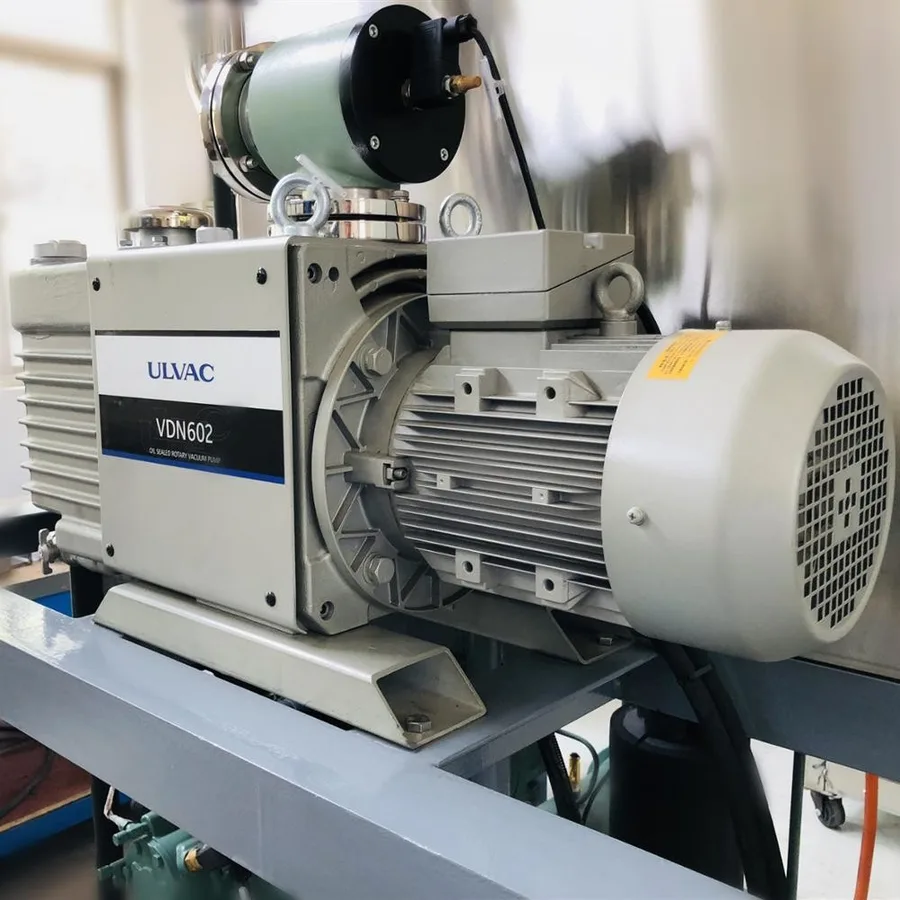

Vacuum pump with Japan Ulvac brandSiemens
|
|
Circulation system
|
Circulation pump with Denmark Grundfos brand
|
|
Control system
|
Touch screen and PLC with Siemens Brand
|

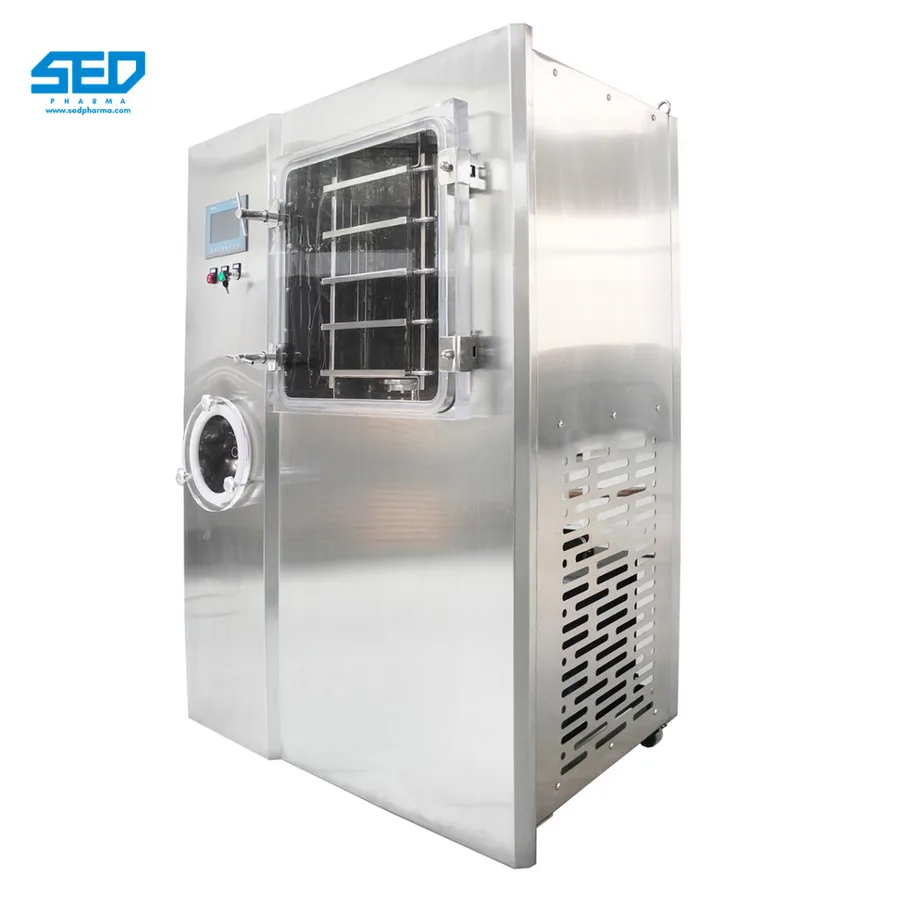

Product Show of Freeze Drying Machine
Application of Freeze Drying Machine
