Automatic Cartoning Machine
High Speed Cartoner Packaging Machine Automatic Cartoning Machine
Product Description of Cartoner Packaging Machine SED-120LZHP-A Automatic Vertical Cartoning Machine packages bottle type products with speed and accuracy. This machine can complete carton erecting, leaflet folding ( 1-4 fold), leaflet and product inserting and carton sealing in an automatic process. It is capable of filling and sealing a wide range of carton types. Examples include reverse tuck, straight tuck, and glue-spraying. And it can handle standard carton sizes as well as extended sizes (customized). This cartoner is widely used in outer packaging across a wide spe
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-120LZHP-A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overviewProduct Description of Cartoner Packaging Machine

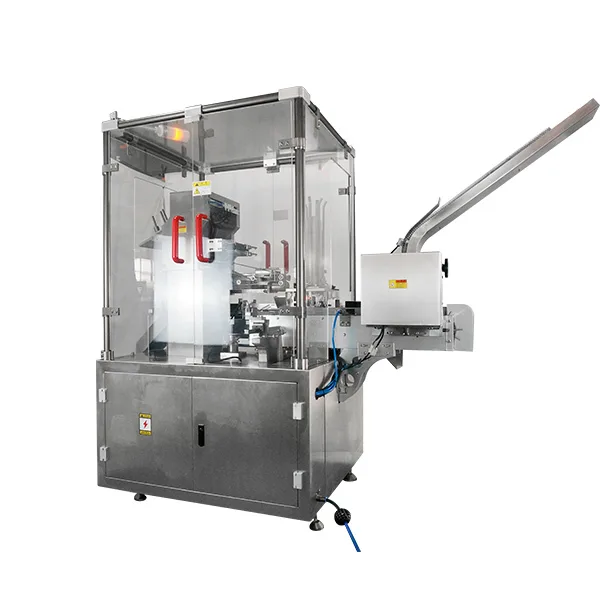

SED-120LZHP-A Automatic Vertical Cartoning Machine packages bottle type products with speed and accuracy. This machine can complete carton erecting, leaflet folding (1-4 fold), leaflet and product inserting and carton sealing in an automatic process. It is capable of filling and sealing a wide range of carton types. Examples include reverse tuck, straight tuck, and glue-spraying. And it can handle standard carton sizes as well as extended sizes (customized).
This cartoner is widely used in outer packaging across a wide spectrum of industries, including cosmetic, pharmaceutical, food and personal care products.
Advantages of Cartoner Packaging Machine
(1) PLC automatic control system, frequency conversion speed regulation, and electrical components all adopt well-known brands.
(2) Adopt touch screen operating system.
(3) Mechanical overload automatic shutdown.
(4) Automatically reject cartons that lack product and leaflet.
(5) Fault display, alarm and finished product counting.
(6) Stable performance and easy operation.
Product Parameters of Cartoner Packaging Machine
|
Model |
SED-120LZHP-A |
|
Capacity |
30-120 cartons/min |
|
Carton Specification |
L(65-120)*W(30-85)*H(15-55)mm |
|
Paper Quality of Carton |
250-350g/m² (depends on carton size) |
|
Paper Quality of Leaflet |
60-70g/m² |
|
Unfolded Leaflet Specification |
L(80-250)*W(90-170)mm |
|
Leaflet Folding Type |
1-4 fold |
|
Compressed Air Working Pressure |
≥0.6MPa |
|
Compressed Air Consumption |
120-160L/min |
|
Power Supply |
220V 50HZ |
|
Main Motor Power |
0.75KW |
|
Weight |
1200kg |
|
Overall Dimension (L*W*H) |
2700*1140*1800mm |
