Capsule Filling Machine
High Speed Automatic SUS316 Hard Gelatin Capsule Filling Machine Pharmaceutical Equipment
High Speed Automatic SUS316 Hard Gelatin Capsule Filling Machine Pharmaceutical Equipment Product Description of Capsule filling machine This machine is designed further improved on the base of original full auto.Capsule filling machine from home and aboard,with high technology and exclusive performance,its function can reach international leading it is an ideal equipment for capsule and medicine in pharmaceutical industry. Product Parameters of Capsule filling machine Model SED-200J SED-400J SED-600J Max.output(capsules/min) 200 400 600 Filling dosage Powder, Pellets,
| Place of Origin: | China |
|---|---|
| Brand Name: | SED-Pharma |
| Certification: | CE |
| Model Number: | SED-J Series |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden Case |
| Delivery Time: | 35 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- High Speed Automatic SUS316 Hard Gelatin Capsule Filling Machine Pharmaceutical Equipment
- After-sales service provided
- Engineers available to service machinery overseas,Video technical support,Online support
- Weight
- 380kg
- Application
- Medical,Food,Chemical,Beverage,Commodity
- Packaging type
- Capsule
- Warranty
- 1 Year
- Material
- SUS316
- key word
- Capsule filling machine
High Speed Automatic SUS316 Hard Gelatin Capsule Filling Machine Pharmaceutical Equipment
Product Description of Capsule filling machine
This machine is designed further improved on the base of original full auto.Capsule filling machine from home and aboard,with high technology and exclusive performance,its function can reach international leading
it is an ideal equipment for capsule and medicine in pharmaceutical industry.
Product Parameters of Capsule filling machine
| Model | SED-200J | SED-400J | SED-600J |
| Max.output(capsules/min) | 200 | 400 | 600 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 3.7Kw | 220V/380V 3.7Kw | 220V/380V 4.9Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 720*680*1700 | 720*680*1700 | 930*790*1930 |
| Weight (kg) | 700 | 700 | 800 |
| Model | SED-800J | SED-1000J | SED-1200J |
| Max.output(capsules/min) | 800 | 1000 | 1200 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 4.9Kw | 220V/380V 5.75Kw | 220V/380V 5.75Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 930*790*1930 | 1020*860*1970 | 1020*860*1970 |
| Weight (kg) | 800 | 900 | 900 |
| Model | SED-1500J | SED-2000J | SED-2500J |
| Max.output(capsules/min) | 1500 | 2000 | 2500 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 6.45Kw | 220V/380V 6.45Kw | 220V/380V 6.45Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 1020*1050*1970 | 1020*1050*1970 | 1150*1050*1970 |
| Weight (kg) | 900 | 1500 | 1500 |
| Model | SED-3200J | SED-3800J | SED-7500J |
| Max.output(capsules/min) | 3200 | 3800 | 7500 |
| Filling dosage | Powder, Pellets, Tablet | Powder, Pellets, Tablet | Powder, Pellets, Tablet |
| Capsule size | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E | Capsule 00# -5#/Safety capsule A-E |
| Total power | 220V/380V 9.55Kw | 220V/380V 9.55Kw | 220V/380V 13.5Kw |
| Water supply | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa | 500L/h,0.2-0.10Mpa |
| Dust collector | 160m3/h | 160m3/h | 160m3/h |
| Overall dimension (mm) | 1150*1280*2060 | 1150*1280*2060 | 1700*1280*2150 |
| Weight (kg) | 2400 | 2400 | 3800 |
Main Feature of Capsule filling machine
1).Good-looking appearance,exquisite workmanship,ease of operation,simplicity of use.
2).Stowage seat and measuring plate are designed as one unit to make measuring plate and stowage rod without deviation,phenomenon avoid friction phenomenon between stowage rod and measuring plate,improve its precision highly,further more,it prolongs the machine's life greatly.
3).Ineligible capsule can be eliminated automatically(qualified rate not included),the medicine in the capsule can be recycled and be reused thus it can increase greatly economic efficiency.
4).Simplicity and convenience of dismantling,installation and clean,various models of mould can be replaced each other,the mould of 80 model and 1000 model as well as 1200 model can be replaced mutually on the same machine to meet different requirement of capacity.
5).Dust collector and vacuum pipe as well as waste air pipe are installed in the inner of the machine to avoid the air pipe becoming hard,bard broken and leakage etc phenomenon,it is more convenient to clean the platform.Furthermore,it accords with the requirement of GMP that medicine can not contact with organic material.

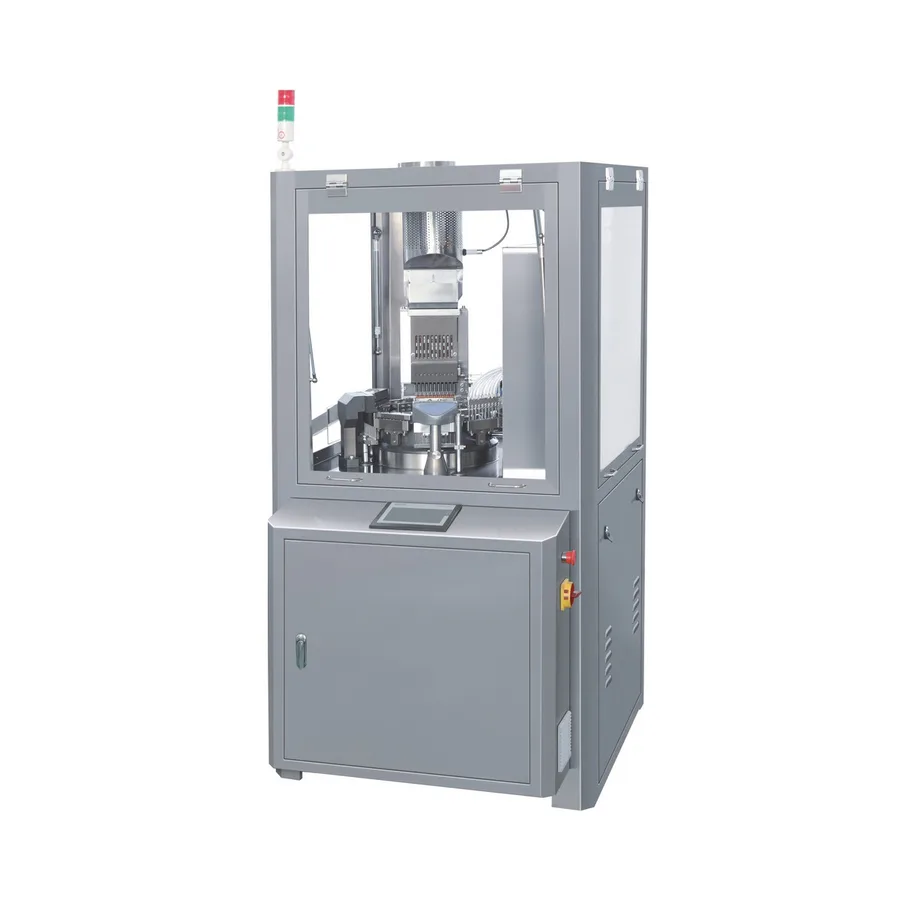

Product Show of Capsule filling machine
Application of Capsule filling machine
The automatic capsule filling machine is mainly used for filling powder or pellet capsule medicines in medicine, hospital preparation room, health care products and other industries.
