Automatic Labeling Machine

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization

Name: High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization
Brand: SED Pharma

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization Product Parameters of Labeling Machine product name high speed labelling machine applicable product Cylindrical surface Apply the label self-adhesive label Applicable product diameter 30-115mm Applicable label width 10-150mm Label speed 0-80pcs/min Labeling accuracy ±1mm Total Weight 175kg Overall Dimension 2000X1200X1500mm power source 220V/VA rate of work 1450W The Scope of Application: The labeling machine is fully automatic, equipped with PLC control system and touch screen cont

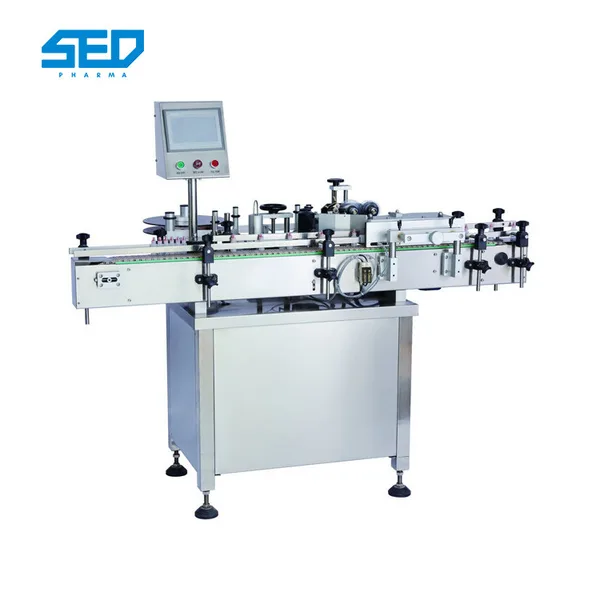

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization, view 1

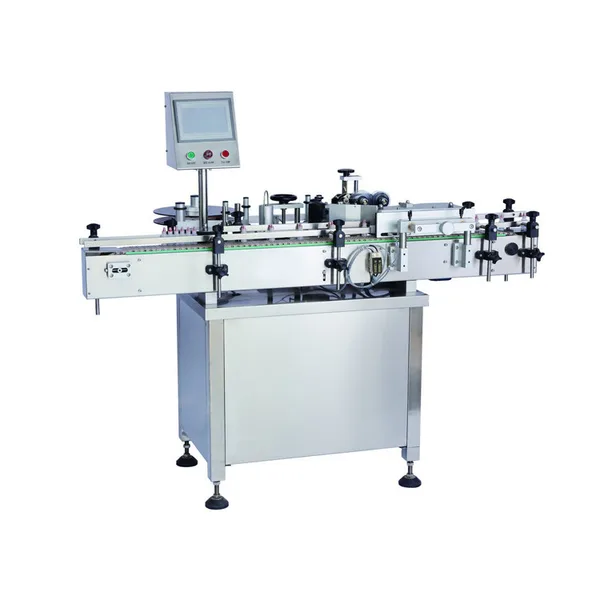

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-PT

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization
product name: high speed labelling machine
applicable product: Cylindrical surface
Label speed: 0-80pcs/min
Labeling accuracy: ±1mm
Total Weight: 178kg
material: stainless steel
key word: Automatic Labeling Machine

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization

Product Parameters of Labeling Machine

product name	high speed labelling machine
applicable product	Cylindrical surface
Apply the label	self-adhesive label
Applicable product diameter	30-115mm
Applicable label width	10-150mm
Label speed	0-80pcs/min
Labeling accuracy	±1mm
Total Weight	175kg
Overall Dimension	2000X1200X1500mm
power source	220V/VA
rate of work	1450W

The Scope of Application:

The labeling machine is fully automatic, equipped with PLC control system and touch screen control.The machine stops automatically when there are no labels and no products.

If the customer needs to print the batch number,date number or other number on the label, the coding equipment can be provided.Photoelectric detection makes the label high speed and high precision.Good labeling effect, no wrinkles, no bubbles.

Use high quality stainless steel and aluminum alloy.High structural strength, can be in any shape of the bottle label: single-side label and double-sided label.Widely used in medicine, daily chemical, cosmetics, food and beverageindustries.

Equipment function characteristics of Labeling Machine

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.

Products Show of Labeling Machine

High Speed Automatic Labeling Machine Two Sided Adhesive Sticker Precise Localization product detail
