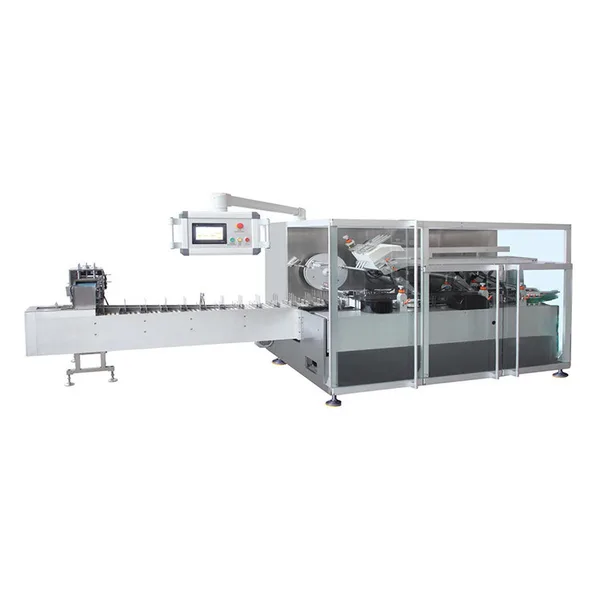

High Speed Automatic Cartoning Machine

High Speed Automatic Cartoning Machine



Product introduction in of Cartoning Machine



Bottle cartoner is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for cardboard case packaging of medicine bottles (round, square),cosmetic ,food into carton in a range.



The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device.



The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain.



Product Parameters of Cartoning Machine

Encasing Speed		120 boxes/min
Box	Quality requirement	250-450g/m2 (according to its dimension to confirm)
	Dimension range (L×W×H)	customize according to your requirement
Compressed air	Working pressure	≧0.6mpa
	Air consumption	20m3/h
Power supply	220V/380V 50Hz
Motor power	1.5KW
Machine dimension (L×w×H)	5000*1700*1900mm
Machine weight	3000KGS



Feature of Cartoning Machine​



1. Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.



2. Adopt human-machine operation system.



3. International famous brand of electric components such for PLC touch screen, frequency inverters, etc



4. Stable performance, operation is easy Controls



Application of Cartoning Machine



1. Mainly suitable for cartons made of corrugated paper,
White cardboard, gray cardboard and other packaging materials.

2. Widely used in carton packaging in different industries, such as
Digital products, cosmetics, knitwear, food, toys, fruits, daily necessities, medicines.
