Capsule Filling Machine
High Precision Automatic Capsule Filling Machine with 9 Die Holes and 380V 50Hz 3P Power Supply for Pharmaceutical Industry
High Precision Pharmaceutical Industry Use Automatic Powder Capsule Filling Machine Product Description The SED-1200J-H Automatic Capsule Filling Machine is designed for pharmaceutical and nutraceutical industries to efficiently fill empty hard gelatin capsules (sizes 00#-4#) with powders and pellets (optional). This precision equipment performs complete capsule processing including orientation, opening, precise powder filling, and automatic capsule closing. Technical Specifications Parameter Specification Model SED-1200J-H Capacity 1200 capsules/min Filling Material Powder
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1200J-H |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 40 Working days after receiving advanced payment or original L/C |
| Payment Terms: | T/T,L/C,,Cash |
| Supply Ability: | 30 Sets Per Month |
Configuration and product details
Technical overview- Name
- High Precision Pharmaceutical Industry Use Automatic Powder Capsule Filling Machine
- Filling Material
- Powder, Granules
- Weight
- 900kg
- Die Hole Number
- 9
- Noise
- ≤75dB(A)
- Power Supply
- 380V 50Hz 3P
- Speed
- 1200 capsules/min
- key word
- Capsule Filling Machine，Automatic Capsule Filling Machine

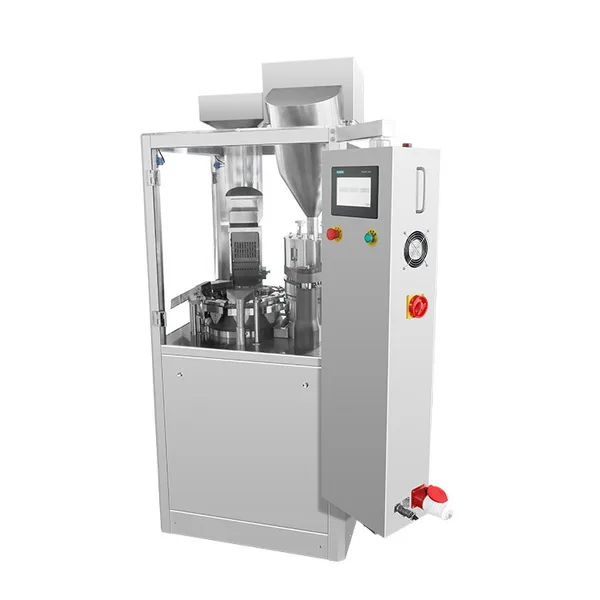

The SED-1200J-H Automatic Capsule Filling Machine is designed for pharmaceutical and nutraceutical industries to efficiently fill empty hard gelatin capsules (sizes 00#-4#) with powders and pellets (optional). This precision equipment performs complete capsule processing including orientation, opening, precise powder filling, and automatic capsule closing.
| Parameter | Specification |
|---|---|
| Model | SED-1200J-H |
| Capacity | 1200 capsules/min |
| Filling Material | Powder, Granules |
| Die Hole Number | 9 |
| Power Supply | 380V 50Hz 3P |
| Total Power | 5.57KW |
| Capsule Size | 00#-4# |
| Filling Variation | ±3% - ±4% |
| Noise Level | ≤75dB(A) |
| Qualified Rate | ≥99.5% |
| Dimensions (L×W×H) | 1020mm × 860mm × 1970mm |
| Weight | 900kg |

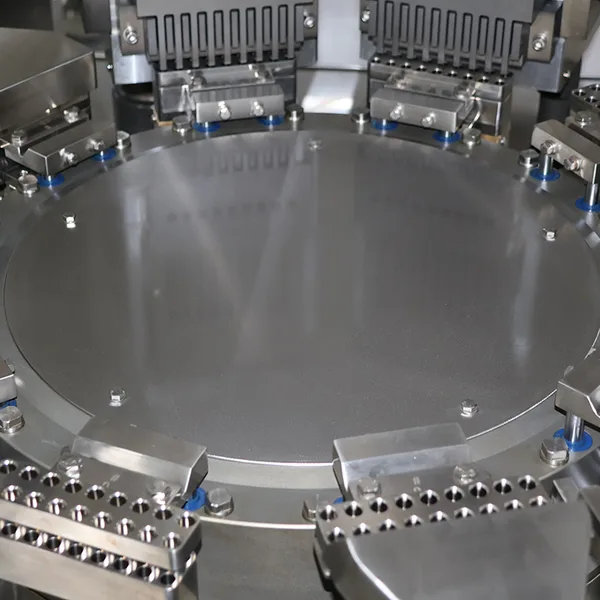

- Enhanced mold turntable design with Japanese linear bearings for superior accuracy and extended service life
- Underslung cam and pressure atomizing oil pump design reduces wear and prolongs component durability
- Integrated column and chassis design prevents filling seat shifting for more stable and accurate feeding

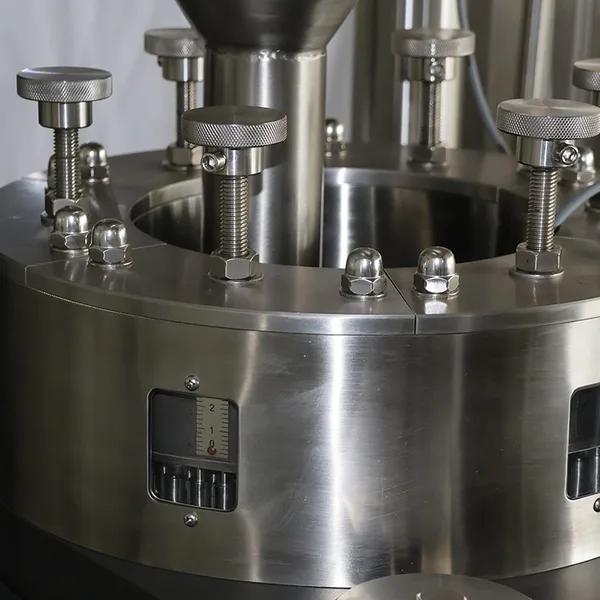

- Three-dimensional adjustment based on dosage plate lower plane ensures uniform gaps for precise filling and easy cleaning

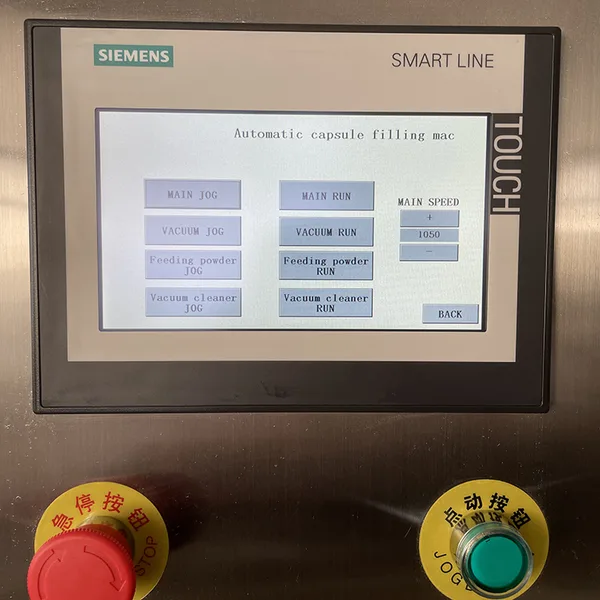

- Touch screen interface with automatic alarm system for material/capsule shortages or channel failures
- Real-time measurement display for each capsule and cumulative output tracking
This automatic capsule filling machine is ideal for pharmaceutical manufacturing, nutraceutical production, chemical processing (powders, pills, granules), as well as vitamin supplements, food products, and veterinary medicines.
