Automatic Cartoning Machine

High Efficiency Auto Cartoner Machine Automatic Cartoning Machine

Name: High Efficiency Auto Cartoner Machine Automatic Cartoning Machine
Brand: SED Pharma

Products Description of Auto Cartoner Machine This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic photo elector mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding and packing of food, medicine, daily chemical, entertainment, hardware, etc. The automatic feeding mechanism is easy to adjust, and the box loading speed can

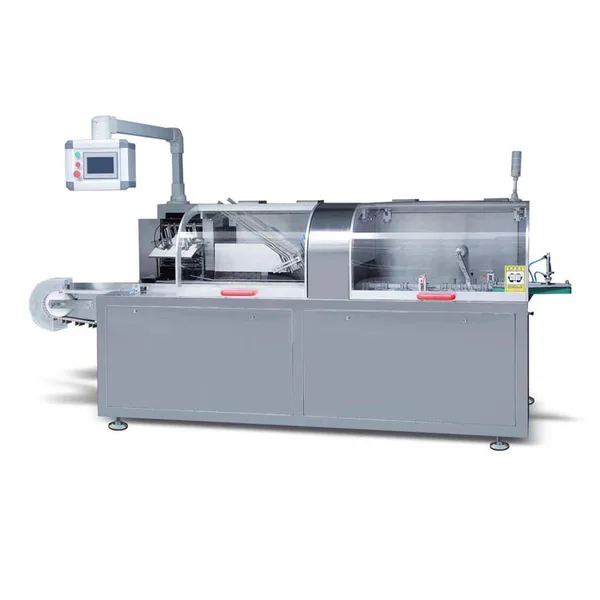

High Efficiency Auto Cartoner Machine Automatic Cartoning Machine, view 1

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100WZH-G

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: High Efficiency Auto Cartoner Machine Automatic Cartoning Machine
Encasing speed: 30-100（Cartons/min）
Dimension range（L×W×H）: （70-200）mm×（35-120）mm×（14-70）mm
Working pressure: ≥0.6mpa
Air consumption: 120-160L/min
Power supply: 220V 50HZ
Motor power: 0.75kw
Machine dimension（L×W×H）: 3100㎜×1350㎜×1750㎜（Customized）
Machine weight: 1400kg
Key Word: Automatic Cartoning Machine，Automatic Box Cartoning Machine

Products Description of Auto Cartoner Machine

This equipment is new model developing base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic photo elector mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for automatic feeding and packing of food, medicine, daily chemical, entertainment, hardware, etc. The automatic feeding mechanism is easy to adjust, and the box loading speed can be set arbitrarily on the operation screen. The whole process of on-line material detection, stamping batch number, paper tongue packaging at both ends of the carton (also suitable for hot melt adhesive), material shortage elimination and finished product output are all completed automatically.

Parameters of Auto Cartoner Machine

Encasing speed 30-100(Cartons/min)
Carton	Quality requirement	250-350g/㎡Base on carton size
	Dimension range(L×W×H)	(70-200)mm×(35-120)mm×(14-70)mm
Leaflet	Quality requirement	60-70g/㎡
	Unfolded leaflet specification(L×W)	(80-250)㎜×(90-170)㎜
	Fold range(L×W)	【1-4】 (Fold)
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Motor power		0.75kw
Machine dimension(L×W×H)		3100㎜×1350㎜×1750㎜(Customized)
Machine weight		1400kg

Feature of Auto Cartoner Machine

1). International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2). Adopt human-machine operation system.

3). Automatically stop when machine is overload.

4). Automatically reject lacking of package product and leaflet.

5). Automatically display trouble, Alarm and count finished products.

6). Stable performance, operation is easy.

Show of Automatic Cartoner

High Efficiency Auto Cartoner Machine Automatic Cartoning Machine product detail

Application of Auto Cartoner Machine

This equipment is new model developping base on integrated domestic and foreign vanguard technology .

It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

High Efficiency Auto Cartoner Machine Automatic Cartoning Machine product detail

Tag: automatic cartoning machine
