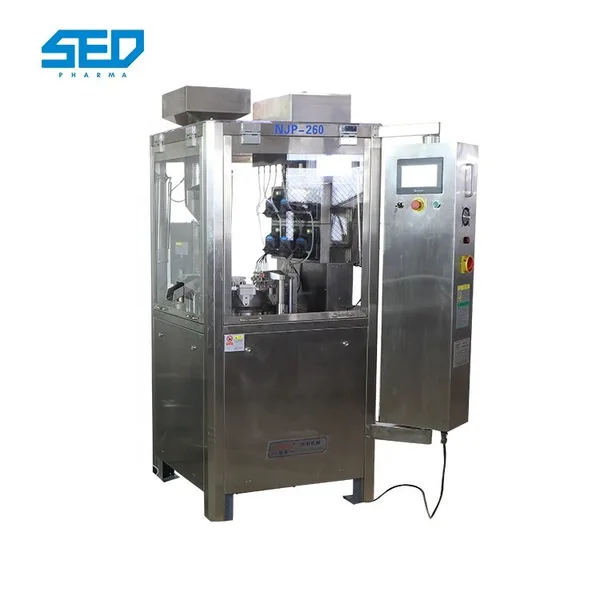

Hard Capsule Liquid Filling Machine

Hard Capsule Liquid Filling Machine



Product Description of Capsule Filling Machine

The liquid capsule filling machine is a new capsule filling machine specially designed for filling liquid, which fills the gap of liquid filling and sealing technology for hard capsules in China. This series of honey water liquid capsule filling machine, with accurate



loading and good sealing, improves the safety of the products in the process of storage, transportation and clinical application of products. This liquid capsule filler machinery has wide applicability.



Main Technical Parameters

Model	SED-260YJ-C
Weight	600KG
Overall dimensions	1020×860×1970mm
Motor Power	5.75kw
Power supply	Three-phase four-wire AC 380V; 50Hz
Capacity	15600pcs/hour
Fillable capsule	00#～5# Safety capsule A～E
Capsule sowing accuracy	≥99.5％
Working noise	≤75dBA
Filling volume difference	Liquid above 300mg≤±3%
Compressed air	0.06m3/min 0.3Mpa
Water source requirements	The water ring vacuum pump is used for recycling with the water tank (It can also be connected to an external water source)
Vacuum	-0.02～-0.06 MPa
Water source	250L/h
Inlet pipe inner diameter	20mm
Drain pipe inner diameter	27mm
Working temperature	21℃±3℃
Relative humidity of working environment	40～55％
Exhaust volume	300m3/h



Characteristic of Capsule Filling Machine



1.This series liquid capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.



2.This pharmaceutical honey capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

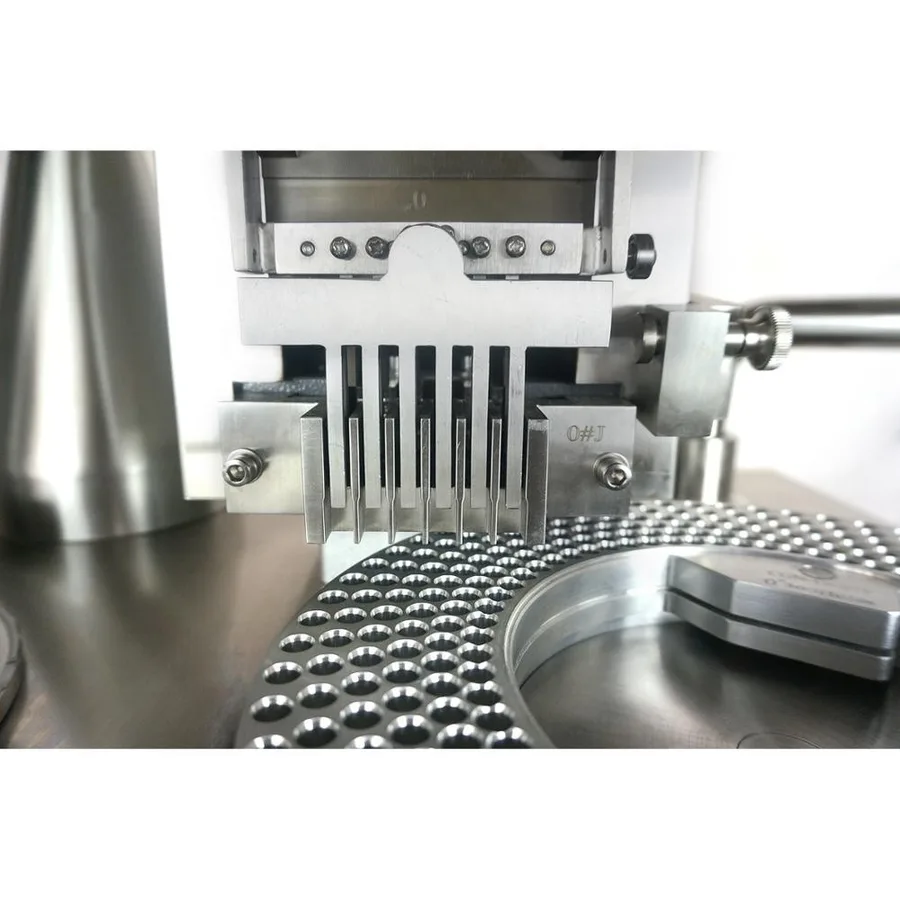

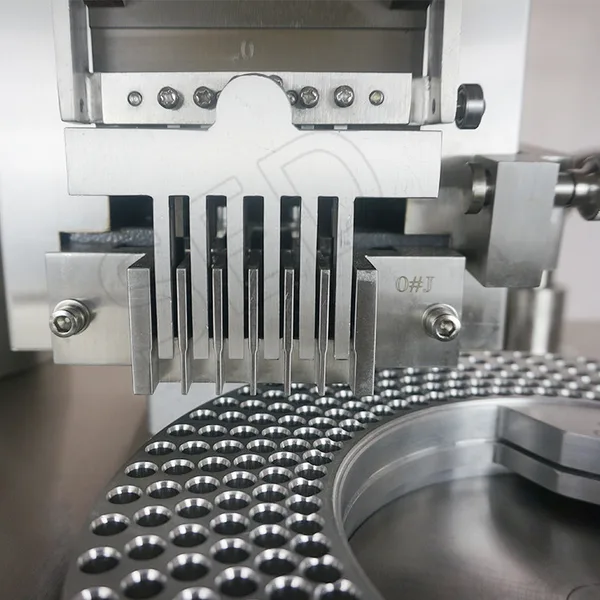

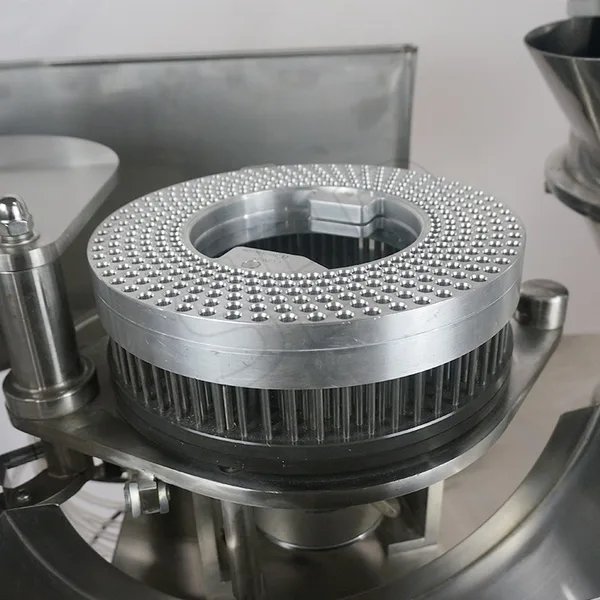

3. Equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.



4. The liquid capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.



5. All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.



Application
