GMP Standard Pharmaceutical Industry Automatic Capsule Filling Machine

GMP Standard Pharmaceutical Industry Automatic Capsule Filling Machine



Products Description of Capsule Filling Machine



SED-3500J-H Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.



Technical Parameters​

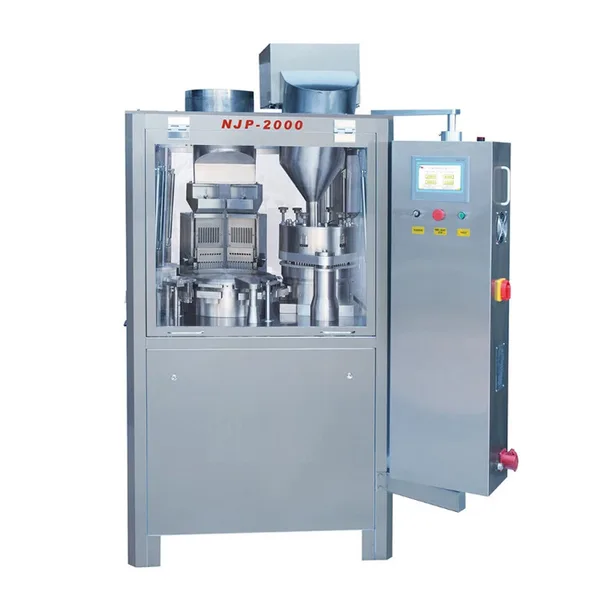

Model	NJP-2000	NJP-2300
Capacity	2000 capsules/min	2300 capsules/min
Filling type	powder, pallet,tablet
No. of segment bores	18	18
Power supply	380/220V 50Hz
Suitable capsule sizes	capsule size 00""-5"" and safety capsule A-E
Filling error	±3%-±4%
Noise	≤75db A
Making rate	empty capsule 99.9% full capsule over 99.5%
Machine Dimensions	1200*100*2100
Machine Weight	1300kg



Features

1.This equipment is a kind of automatic hard capsule filling equipment with intermittent action and orifice plate filling. The filling and rotating parts are fully enclosed, and the upper mold base has a beautiful appearance design without dead ends, which is convenient and easy to clean.
2.The upper and lower modules operate in one direction, and the imported double-lip polyurethane sealing ring has good sealing performance.
3.The combination of air blowing and air suction at the module cleaning station ensures that there is no dust in the die hole during high-speed operation.
4.The locking station is equipped with a powder suction device.
5.The finished product output station is equipped with a capsule blocking ring, no flying dust.
6.The material of the dosage disc is made of copper, which increases wear resistance and is not easy to deform.





Application
