Fully Automatic Round Plastic Bottle Labeling Packing Machine



Product Description of Labeling Machine​

◆ Wide application range, can meet the full-circle labeling or semi-circle labeling of round bottles, easy to switch labeling between bottles, easy to adjust;


◆ The label has a high degree of coincidence. The label is bypassed by a rectifying mechanism. The label is not deflected. The labeling position is x/y/z and the inclination is adjustable. The total of eight degrees of freedom is adjustable.
Dead angle, high label coincidence;


◆ Excellent labeling quality, adopting elastic pressure-coated belt, flat labeling, no wrinkles, and improve packaging quality;


◆ Flexible application, bottle standing labeling, automatic bottle splitting function, can be produced in a single machine, or can be connected to the production line;


◆ Intelligent control, automatic photoelectric tracking, with no material and no labeling, no automatic calibration and automatic label detection to prevent leakage and label waste;


◆ High stability, Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + German labor test label electric eye composed of advanced electronic control system, support equipment 7 × 24 hours of operation;


◆ Simple adjustment, labeling speed, conveying speed and bottle dividing speed can realize stepless speed regulation and adjust according to need;


◆ Rugged and durable, adopting three-bar adjustment mechanism to make full use of the stability of the triangle, the whole machine is solid and durable. Made of stainless steel and high-grade aluminum alloy, in line with GMP



Product Parameters of Labeling Machine​

NAME	Technical parameters
labeling range	L<300mm,H<120mm
Labeling speed	30 bottle/min.
Labeling accurancy	±1.5mm
Size of main frame	L1900*W800*1450(mm)
Working voltage	220V
Electricity power	420W
Weight	250KG
Packing Dimension	2100(L)*1150(W)*1450(H)mm



Advantages of Labeling Machine​



1) Simple structure in linear type ,easy in installation and maintation.



2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.



3) High pressure double crank to control the die opening and closing.



4) Running in a high automatization and intellectualization,no pollution



5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

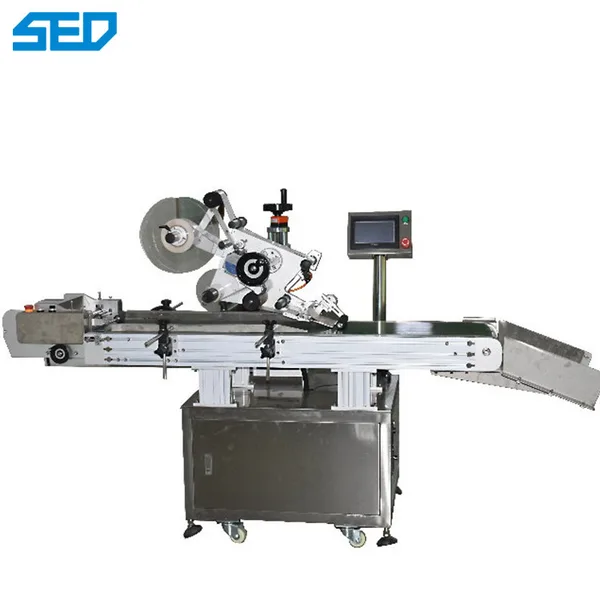

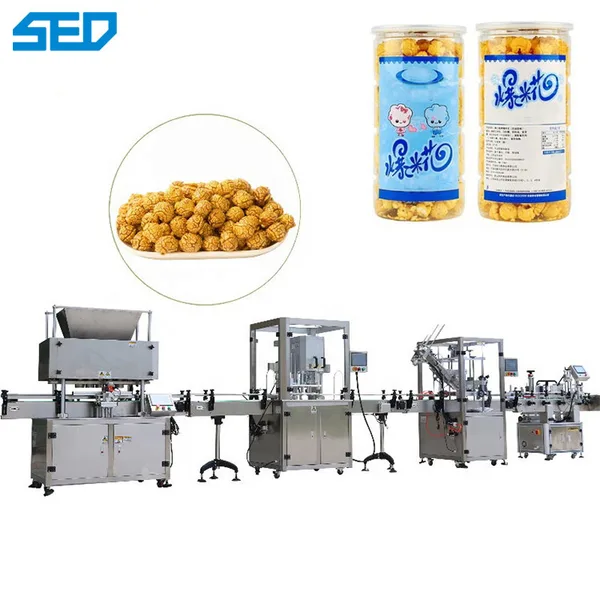

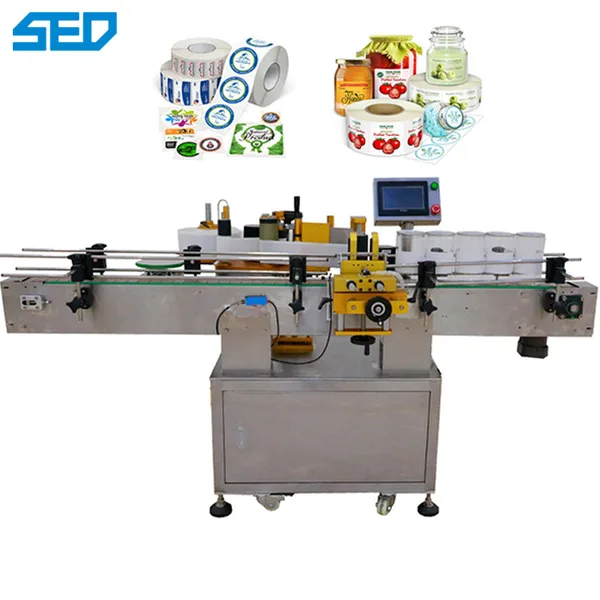

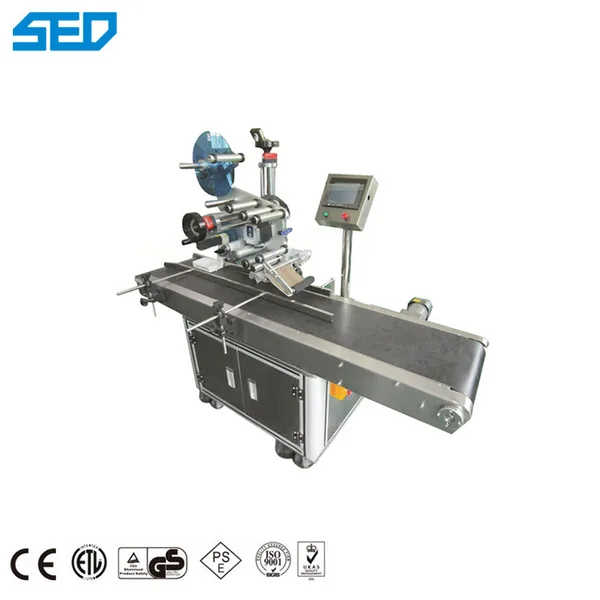

Products Show of Labeling Machine
