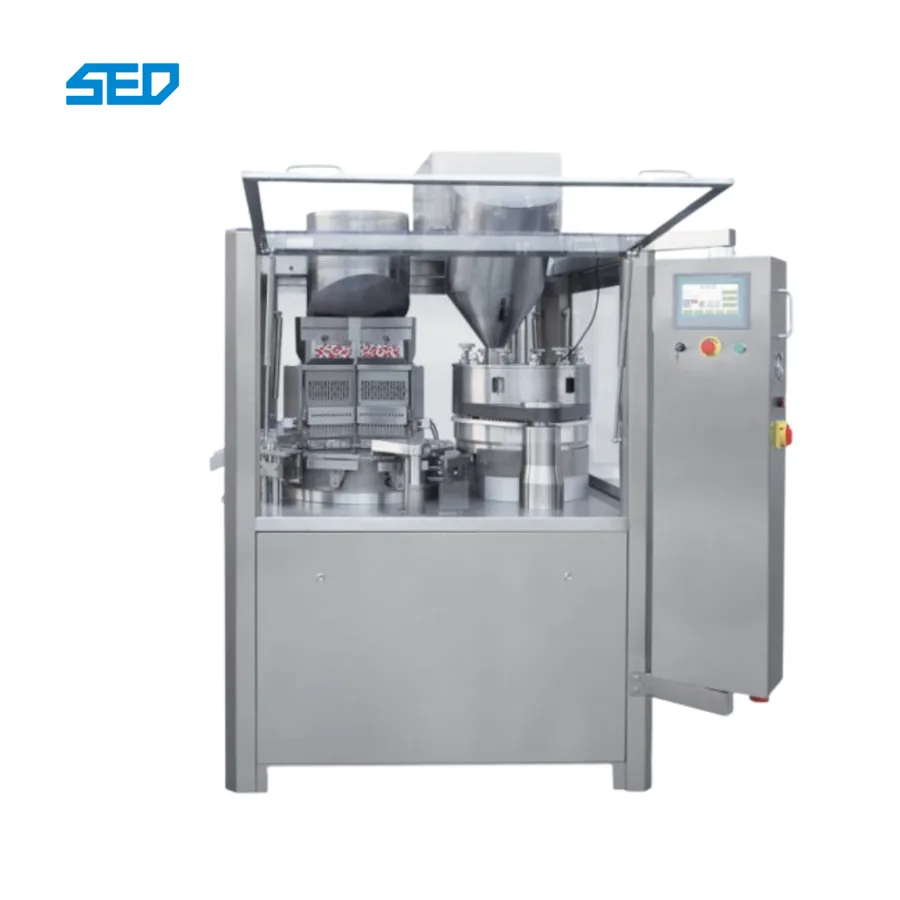

Fully Automatic Powder Capsule Filling Machine

Fully Automatic Powder Capsule Filling Machine



Products Description of Capsule Filling Machine

SED-3200J-C Automatic Capsule Filling Machine is commonly used in the pharmaceutical, nutraceutical industries to fill empty hard gelatin capsule of various sizes with powders and pellets (optional). The capsule filler automatically orientates, opens the empty hard gelatin capsule, properly fills the capsule with powder, and automatically closes the capsules.



Technical Parameters

Model	SED-3200J-C
Machine Weight	2400kg
Overall Dimension	1440×1300×2080mm
Motor Power	6.37KW + 3KW (dust collector)
Power Supply	AC380V 50Hz 3P4W
Capacity	192,000 capsules/h
Application	00#-5# capsule, safety capsule A-E
Qualified Rate	≥99.5％
Working Noise	≤75dBA
Filling Error	≤±3％ (filling more than 300mg of 40-80 mesh granules)
Compressed Air	0.09m3/min 0.3Mpa
Water Source	Water ring vacuum pump with water tank or connected to external water source
Water Flow	250L/h
Diameter of Water Inlet	20mm
Diameter of Drain Pipe	27mm
Vacuum Degree	-0.02～-0.06 MPa



Characteristic



1) It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine



2) The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.



3) It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.



4) The multi-bore dosing brings a precison dosage (it is controlled around ±3.5%); The capsule qualified rate is higher than 99%. It can be filled with the Chinese traditional medicine and the western medicine.



5) It has a protector equipment for the operator and the machine. It has an automatic pause equipment when it is lack for the material. It has a steady and safe working, it is the best choice for the hard capsule made factories.

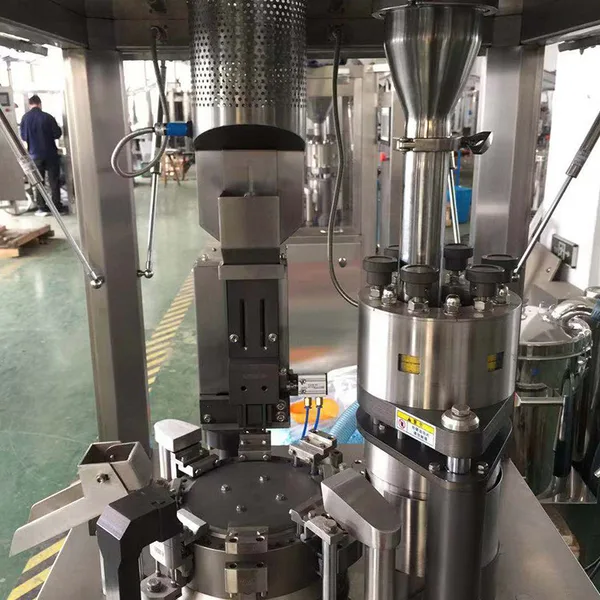

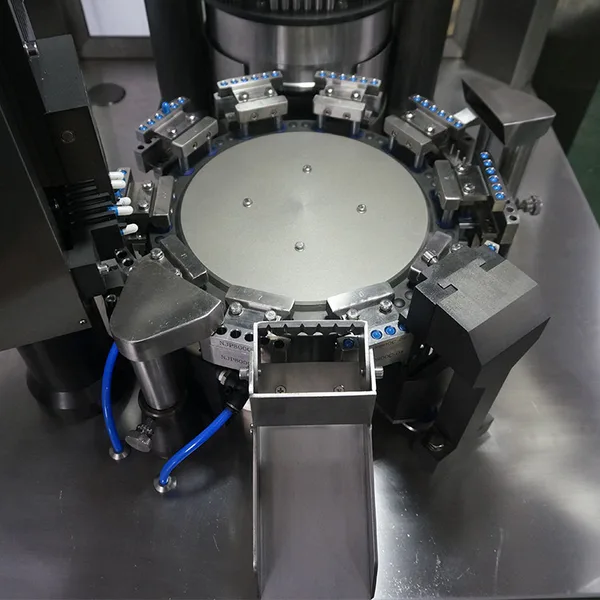

Products Show of Capsule Filling Machine





Precautions for Use



1. The automatic capsule filling machine is a vibrating machine. The tightening of the screws in each part should be checked frequently. If there is any looseness, it should be timely.

Tighten to prevent malfunction and damage;


2. Plexiglass parts (workbench, medicine board) should avoid direct sunlight and near high temperature, and heavy objects should not be placed on the shelf.



It must be placed vertically or horizontally to avoid deformation and damage;


3. The shell and body of the automatic capsule filling machine must be grounded to ensure safety, and the power supply is cut off after work;


4. After the automatic capsule filling machine is finished every day, the residual medicine on the machine and in the mold hole should be cleaned to keep the whole machine clean and Hygienic, avoid washing the host with water. If the mold on the



machine needs to be cleaned, the fixing screw can be loosened, and it can be taken down, which is easy to install.
