Automatic Cartoning Machine

Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes

Name: Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes
Brand: SED Pharma

Product Technical Data of Automatic Cartoner Item Parameters Encasing speed 30-100 boxes /min Box Quality requirement 250-350g/m2[Base on carton size] Dimension range(L×W×H) (70-180)mm×(35-85)mm×(14-50)mm Leafle Quality requirement 60-70g/m2 Unfolded leaflet specification (80-250)mm×(90-170)mm Fold range [1-4]Fold Compressed air Working pressure ≥0.6mpa Air consumption 120-160L/min Power supply 220V 50HZ Main motor power 0.75kw Machine dimension(L×W×H) 3100mm×1100mm×1550mm Machine weight 1400kg Features of Automatic Cartoner 1. International famous brand of electrical c

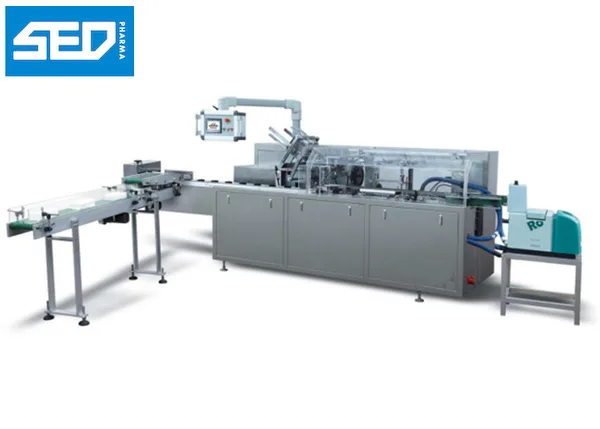

Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes, view 1

Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-100WZH

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	40 Days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets Per Month

Request configuration

Configuration and product details

Technical overview

Name: Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes
Unfolded leaflet specification: (80-250)mm×(90-170)mm
Folded leaflet specification: (90-170)mm×(25-40)mm
Working pressure: ≥0.6Mpa
Air consumption: 120-160L/min
Carton Quality Requirement: 300-350g/m2
Encasing speed: 30-120 boxes/min
Suitable Carton Size: (65-120)mm×(30-60)mm×(30-60)mm
material: stainless steel
key word: Automatic Cartoning Machine

Product Technical Data of Automatic Cartoner

Item		Parameters
Encasing speed		30-100 boxes /min
Box	Quality requirement	250-350g/m2[Base on carton size]
	Dimension range(L×W×H)	(70-180)mm×(35-85)mm×(14-50)mm
Leafle	Quality requirement	60-70g/m2
	Unfolded leaflet specification	(80-250)mm×(90-170)mm
	Fold range	[1-4]Fold
Compressed air	Working pressure	≥0.6mpa
	Air consumption	120-160L/min
Power supply		220V 50HZ
Main motor power		0.75kw
Machine dimension(L×W×H)		3100mm×1100mm×1550mm
Machine weight		1400kg

Features of Automatic Cartoner

1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2. Adopt human-machine operation system.

3. Automatically stop when machine is overload.

4. Automatically reject lacking of package product and leaflet.

5. Automatically display trouble, Alarm and count finished products.

6. Stable performance,operation is easy.

Application of Automatic Cartoner

This equipment is new model developping base on integrated domestic and foreign vanguard technology .

It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for sachet,pouch,soft al/al strips, wound plaster ,ointment plaster, facial mask plaster,coffee bag into carton.

On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.

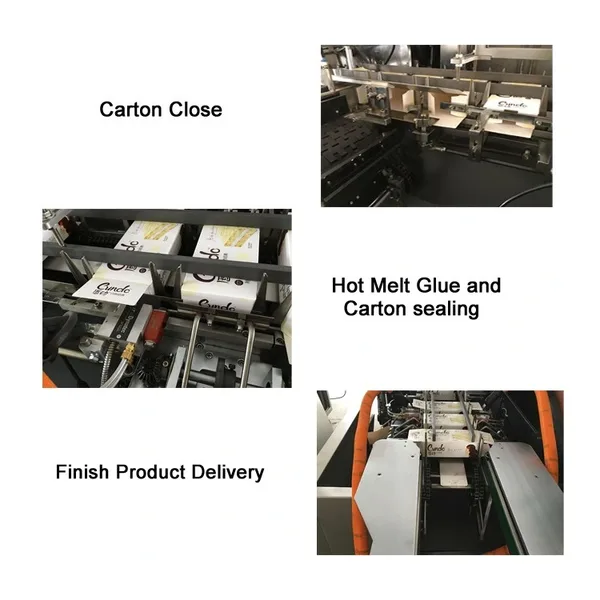

Show of Automatic Cartoner
Fully Automatic Horizontal Versatile Cartoning Machine for Ampoules Vials Syringes and Pre-filled Syringes product detail
