Liquid Filling Machine
Full Automatic Vacuum Pre Filled Syringe Filling Machine Liquid Filling Machine
Full Automatic Vacuum Pre Filled Syringe Filling Machine Liquid Filling Machine Machine Parameters of Liquid Filling Machine Filling Volume 0.1-3ml Filling Accuracy ≤0.3% Max Viscosity 2500000-3500000MPas Syringe Types 0.5ml 1-3ml Filling Speed 15-35(Pc/Min) Motor Power 1.5 KW Air Supply 0.4-0.6 Mpa 20L/S Overall Dimension 1560mm x 800mm x 1800mm Machine Weight 650 Kgs Working principle of Liquid Filling Machine : This machine consists of syringe tray, filling system, stopper supplying system and electric control system. The two servo motors control the ceramic pump
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-1ZGS |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 50-60 Days after receiving the deposit |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 30 Sets per month |
Configuration and product details
Technical overview- Name
- Full Automatic Vacuum Pre Filled Syringe Filling Machine Liquid Filling Machine
- Filling Volume
- 0.1-3ml
- Filling Accuracy
- ≤0.3%
- Max Viscosity
- 2500000-3500000MPas
- Filling Speed
- 15-35(Pc/Min)
- Motor Power
- 1.5 KW
- Air Supply
- 0.4-0.6 Mpa 20L/S
- Overall Dimension
- 1560mm x 800mm x 1800mm
Full Automatic Vacuum Pre Filled Syringe Filling Machine Liquid Filling Machine
Machine Parameters of Liquid Filling Machine
|
Filling Volume
|
0.1-3ml
|
|
Filling Accuracy
|
≤0.3%
|
|
Max Viscosity
|
2500000-3500000MPas
|
|
Syringe Types
|
0.5ml 1-3ml
|
|
Filling Speed
|
15-35(Pc/Min)
|
|
Motor Power
|
1.5 KW
|
|
Air Supply
|
0.4-0.6 Mpa 20L/S
|
|
Overall Dimension
|
1560mm x 800mm x 1800mm
|
|
Machine Weight
|
650 Kgs
|
Working principle of Liquid Filling Machine :
This machine consists of syringe tray, filling system, stopper supplying system and electric control system.
The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to move in the horizontal direction to fill the syringe and seal it.
Characteristic of Liquid Filling Machine :
Servo motor control, filling precision is high, running speed is high, filling error is small.
Ceramic pump filling, without dripping, easy to disassemble and clean.
Horizontal positioning is precise, running is stable, and the change of the syringe tray is easy.
Touch panel operation and plc control, with inter-lock function, relable safety standard and high automation degree.
Ce certified, standard electric installation, safety guarantee on operation.
Equip with acrylic glass protection hood.
Optional 100-class laminar flow
Optional nitrogen, filling and vacuum device
The whole machine is designed according to gmp requirements.
Advantages of Liquid Filling Machine
Load a tray by hand and to load syringes tubes automatically and continuously
The needle of syringes are filling and the liquid going up, Be sure the liquid no overflow
Insert plunger with vacuum, be sure the plunger and liquid level closed enough without air.
Syringe machine can inspect by itself, it case accident happen.
The material contact parts are AISI 316Lstainless steel and ceramic
Star wheel type automatic produce and convenient to operate

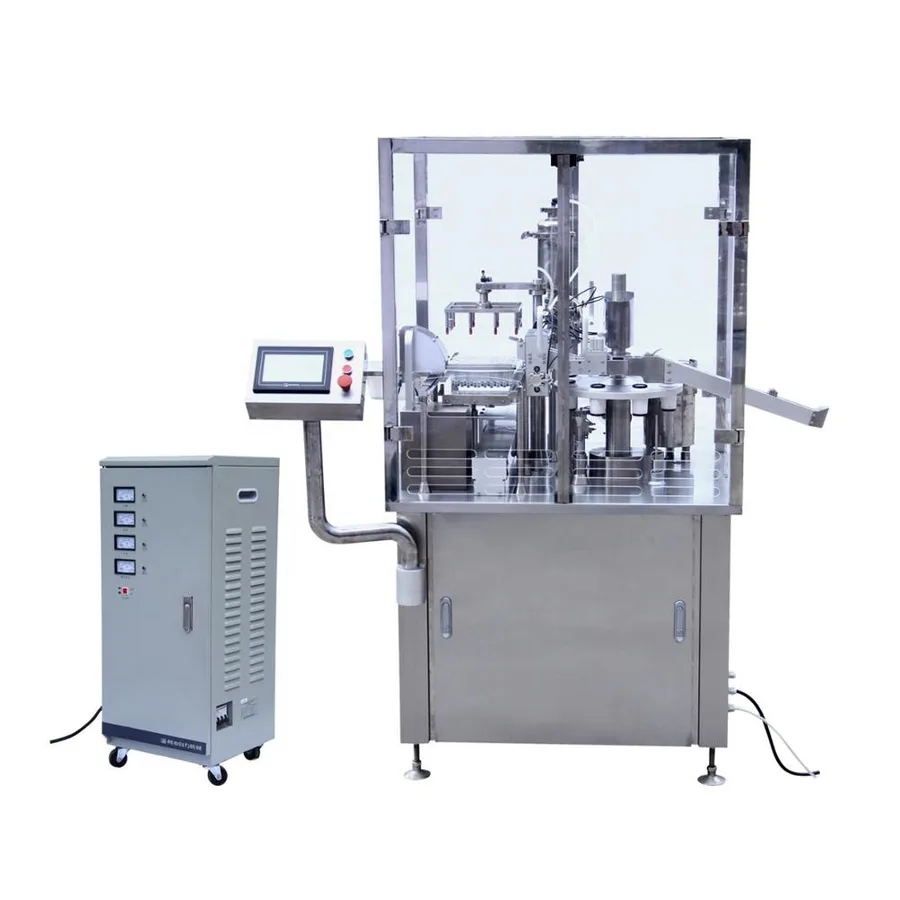

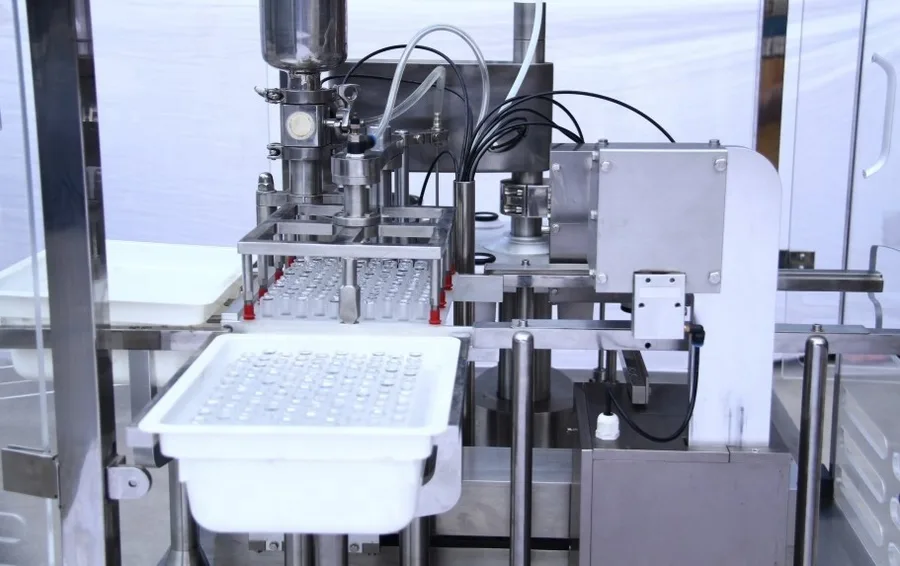

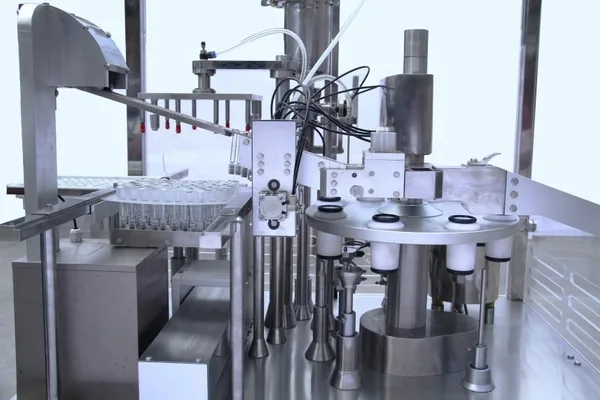

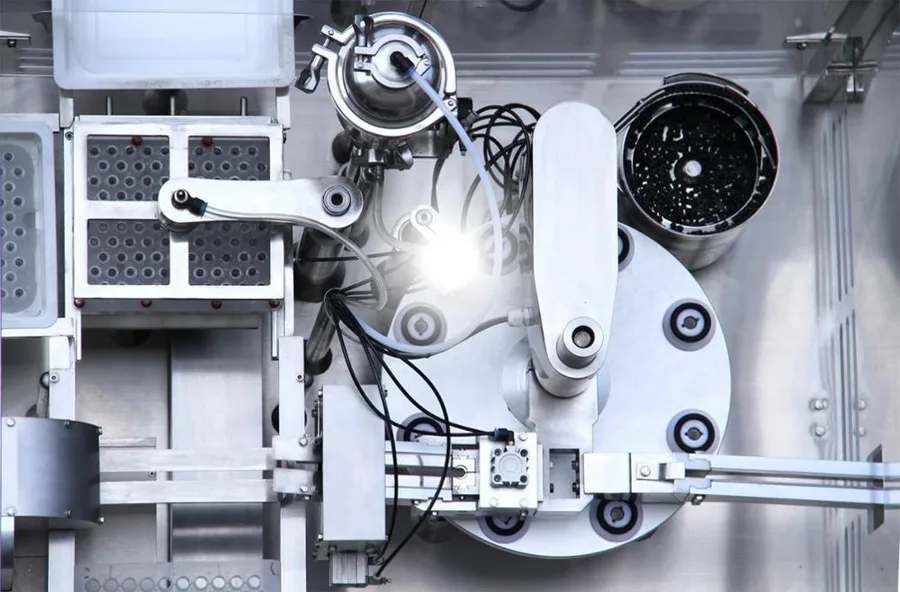

Products Show of Liquid Filling Machine
