Automatic Labeling Machine

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle

Name: Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle
Brand: SED Pharma

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle Product Parameters of Auto Label Machine product name labelling machine for flat bottle applicable product Cylindrical surface Apply the label self-adhesive label Applicable product diameter 30-115mm Applicable label width 10-150mm Label speed 0-80pcs/min Labeling accuracy ±1mm Total Weight 175kg Overall Dimension 2000X1200X1500mm power source 220V/VA rate of work 1450W The Scope of Application: For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc

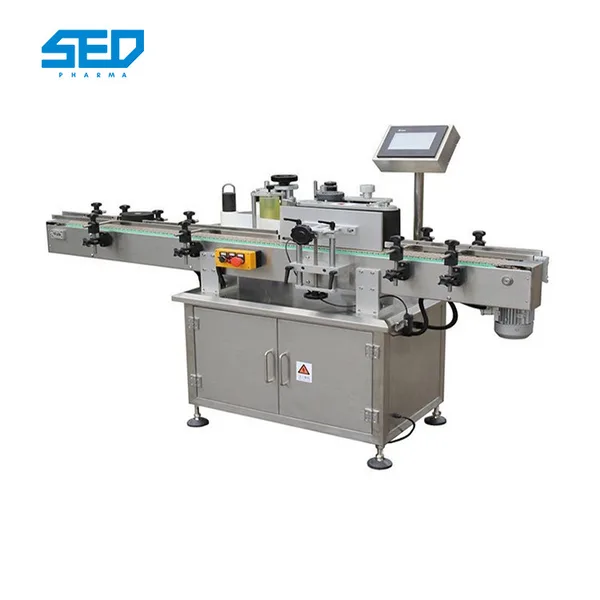

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle, view 1

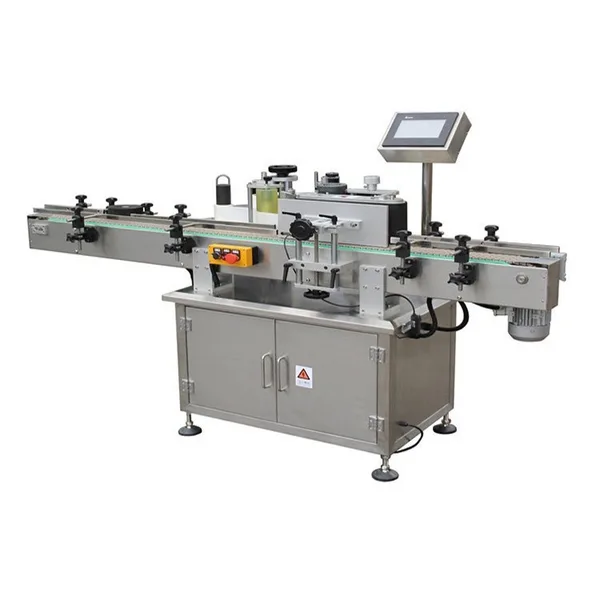

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle, view 2

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-PT

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	30 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle
product name: labelling machine for flat bottle
Apply the label: self-adhesive label
Label speed: 0-80pcs/min
Labeling accuracy: ±1mm
Total Weight: 178kg
material: stainless steel
key word: Bottle Labeling Machine

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle

Product Parameters of Auto Label Machine

product name	labelling machine for flat bottle
applicable product	Cylindrical surface
Apply the label	self-adhesive label
Applicable product diameter	30-115mm
Applicable label width	10-150mm
Label speed	0-80pcs/min
Labeling accuracy	±1mm
Total Weight	175kg
Overall Dimension	2000X1200X1500mm
power source	220V/VA
rate of work	1450W

The Scope of Application:

For all types of round plastic bottles, such as salad oil bottles, wine bottles, sauce pot, etc. It is amodern mechanical and electrical integration product.

Labeling machine is applied to roll label paper sticker, labeling by rolling. A compelete process can be automatic deliver bottles, label, collect bottle. It can be connected with printer to make lable print.

The machine uses computer fiber control, synchronous tracking. The standard is controlled by the mutual inductance stepper motor to ensure that the standard speed and roll speed is synchronized in work.

Equipment function characteristics of Auto Label Machine

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system: SIEMENS 7 inch touch screen, directly visual interface easy operation, also rich with help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don't have much higher requirement for worker.

4) Send label system: German Avery labeling engine control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.

Show of Auto Label Machine

Full - Automatic Bottle Labeler Machine Stably And Efficiently For Flat Bottle product detail
