Food Fruits And Vegetables Vacuum Small Freeze Drying Machine Three Square Meters Power 380V/50HZ/100A

Food Fruits And Vegetables Vacuum Small Freeze Drying Machine Three Square Meters Power 380V/50HZ/100A



Product Overview of Freeze Dry Machine​

The pilot model freeze dryer with drying capacity up to 150 Liters, cover most demand for vial or other material commercial production, compliance with cGMP and FDA. More optional systems available.



Product Parameters of Freeze Dry Machine

model	3 square meters
Power	380V/50HZ/100A
Power consumption	19Kw
Cooling water qty	≥3m3/h(T≤28℃) ≥2m3/h(T≤20℃)
Compressed air	≥40L/Min(P=0.4-0.5Mpa)
Defrost water consumption	60Kg/Batch(T=80℃/P≥0.2-0.3MPa)
Chamber design temperature	90℃
Shelf total usable area	3.24M2
3-5ml vials capacity	13000 bottles
Structure	Integral
Total weight	2000kg
Whole volume	3500X1200X2100mm



Feature of Freeze Dry Machine



1. Less utility, just need electrical plug in to use.



2. Build with computer SCADA system, precise data report will be record



3. Low noise running, easy use at office



4. Optional to build with stainless steel, sterile room allowed to install.



5. Optional to be with stoppering, CIP and SIP system

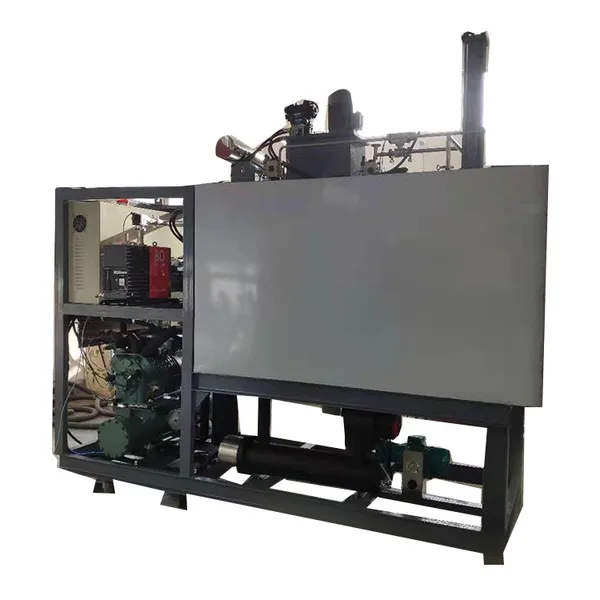

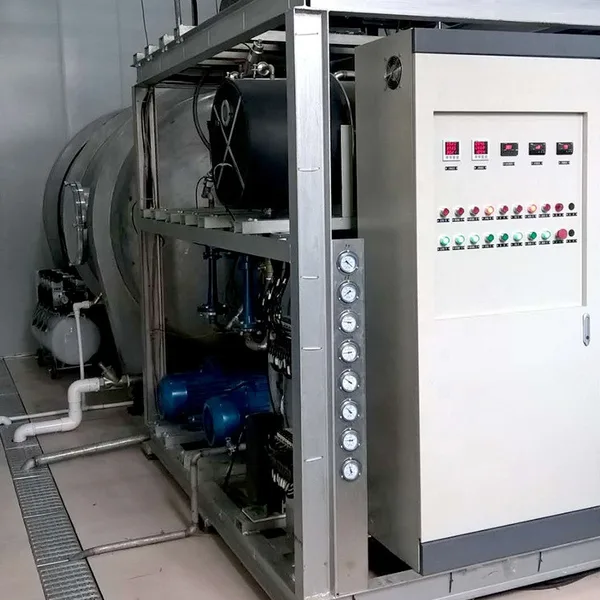

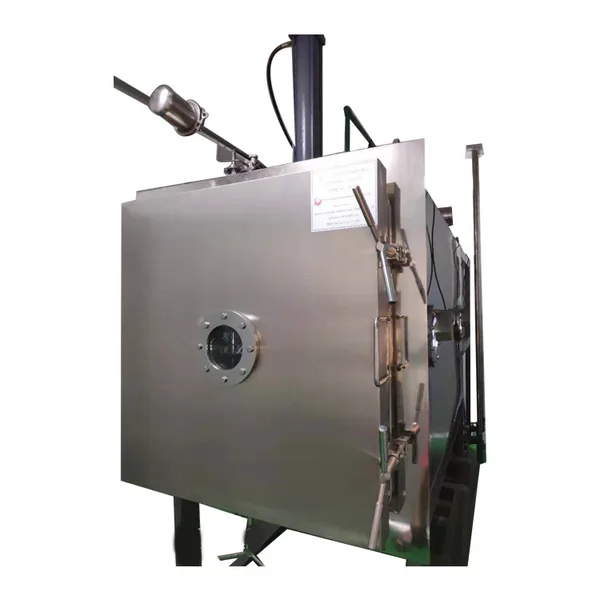

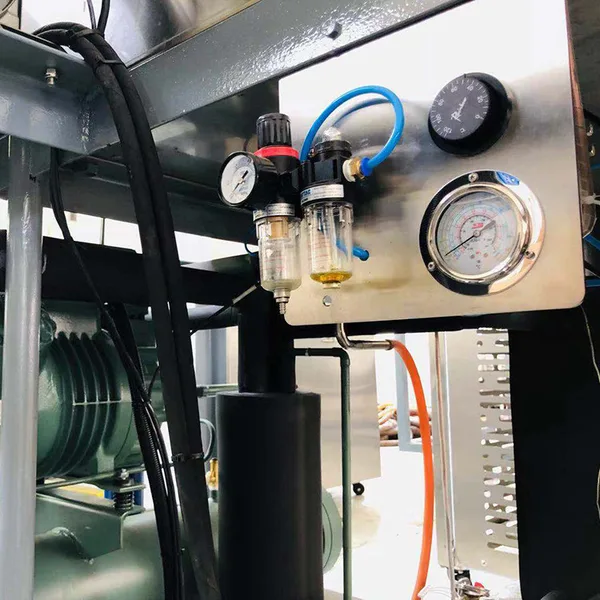

Show of Freeze Dry Machine

Application of Freeze Dry Machine



Food industry: dried vegetables, meat, fish, condiments, convenience foods and specialty products, etc. Preserves the original fresh look, smell, taste, shape of food. Freeze-dried products fully restore moisture, can be stored for longer periods more easily, and are less expensive to ship.

Nutrition and health care industry:
Vacuum freeze-dried products such as royal jelly, ginseng, soft-shelled turtle and rain worm make the final product more natural and authentic.

Pharmaceutical industry:
Vacuum freeze-drying can be used for the drying of Chinese and Western leeches such as serum, plasma, bacteria, enzymes, antibiotics, hormones, etc.

Biomedical Research:
Vacuum freeze-drying can store blood, bacteria, arteries, bones, skin, cornea, nerve tissue and organs for a long time, and can fully restore moisture and regeneration.
