Factory Price High Capacity Automatic Capsule Filling Machine For Pellets



Product Overview of Capsule Filler Machine

It adopts hole plug type filling, batch-type running and frequency control. It is suitable for the whole capsule filling process: capsule feeding, separating, filling(waste capsule rejecting),closing, perfect capsule outputting, for powder and micro pill capsule.



Latest structure: The closed ten position rotating table, high precision, low noise and best suitable for domestic machine-made capsule, and soon the key parts of the bearing and electrical equipment adopts international famous brand, performance stability and can be run at a high speed.



Product Parameters of Capsule Filler Machine

Model	NJP-400	NJP-200
Output(pcs/min)	400	200
NO of Filling hole	3	2
Capsule filling hole	00#-4#	00#-4#
Total Power	3kw	3kw
Weight(kg)	350kg	350kg
Dimension(mm)	700×570×1650mm	700×570×1650mm



Feature of Capsule Filler Machine​



1.Small volume, low energy consumption, fast mold change, convenient.



2.The turning-around parts are in full closure, having excellent lubricating conditions. No oil dirt on the working bench, avoid the cross pollution with the medicine.



3.Shelter are fixed around the dose pan, which can recycle the powder, reduce the dust on working bench.



4.Adopt the man-machine interface, including PLC programming controller, appear the capacity of per minutes, total output, dynamic empty capsules and medicine powder condition, alarm for capsules lacking, and automatically stop for lacking of medicine powder, breakdown diagnosing display.

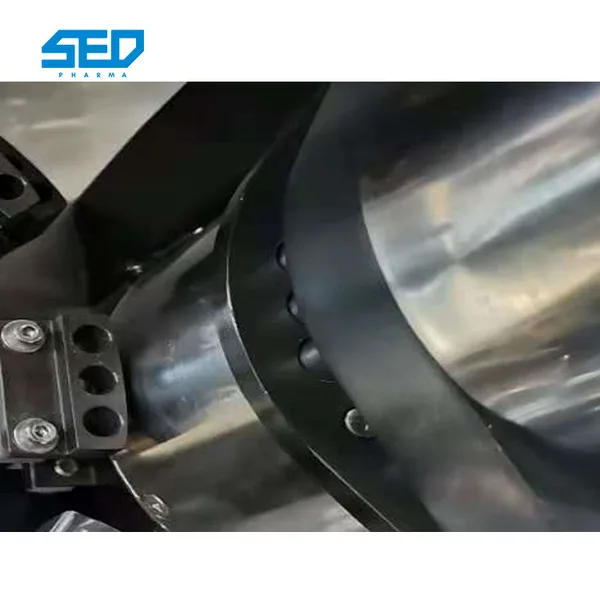

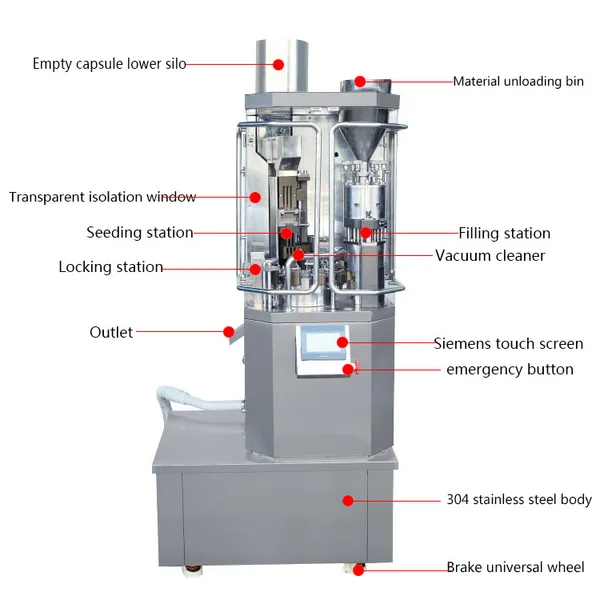

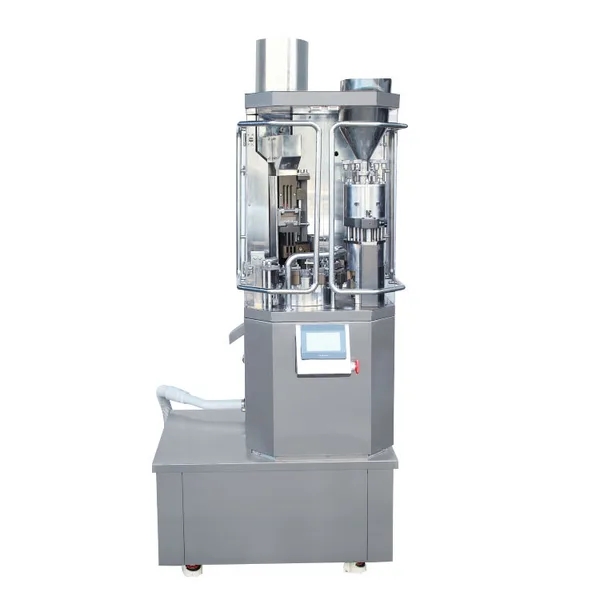

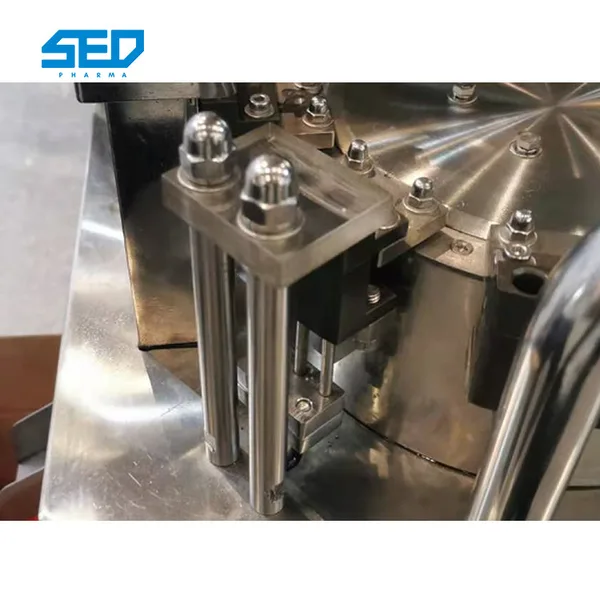

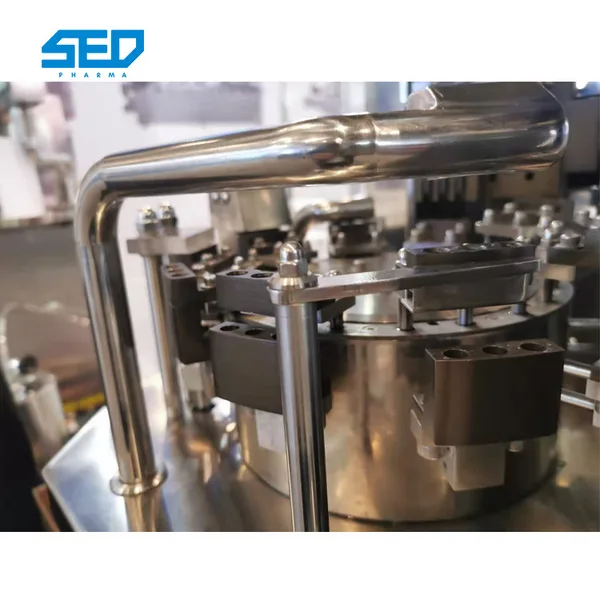

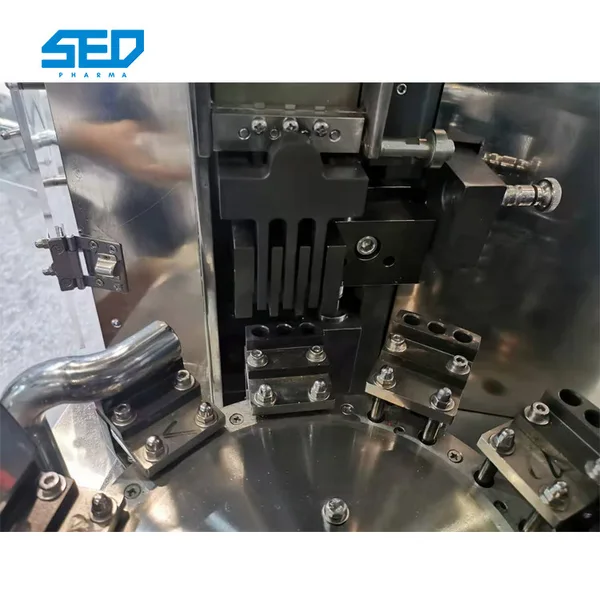

Show of Capsule Filler Machine

Application of Capsule Filler Machine



Fully automatic medicine and food chemical capsule filling equipment Hard powder capsule filling machine is used in medicine, medicine, chemical industry (powder, pill, granule, pill), and can also be used for filling vitamins, food, veterinary drugs, etc.
