Freeze Dry Machine

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

Name: Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine
Brand: SED Pharma

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine Product introduction of Freeze Dry Machine Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the begi

Product Details:

Place of Origin:	China
Brand Name:	SED Pharma
Certification:	CE
Model Number:	SED-3M

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	90-120 days after receiving the deposit
Payment Terms:	T/T,L/C, ,Cash
Supply Ability:	10 Sets per month

Request configuration

Configuration and product details

Technical overview

Name: Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

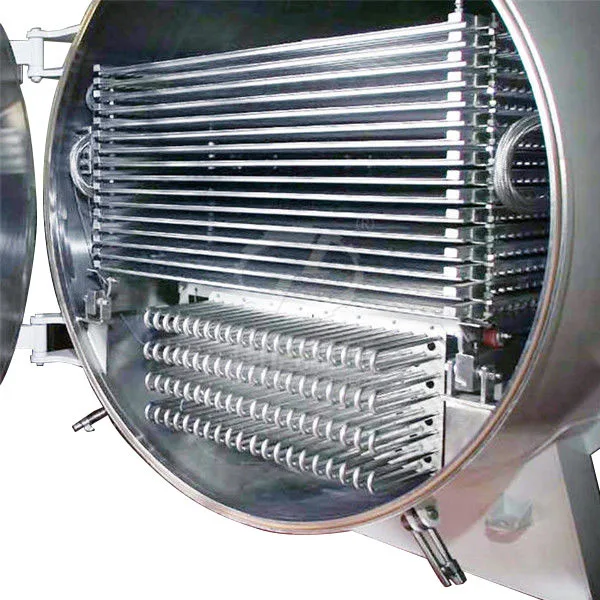

shelf area: 5.2 m2
shelf size: 750*1000 mm
installation rate: 23.5KW
external dimension (L*W*H): 4000*1500*2500mm
total weight: 3500KG
material: stainless steel
key word: Freeze Dry Machine

Economical Design Fruits And Vegetables Food Vacuum Freeze Dry Machine

Product introduction of Freeze Dry Machine

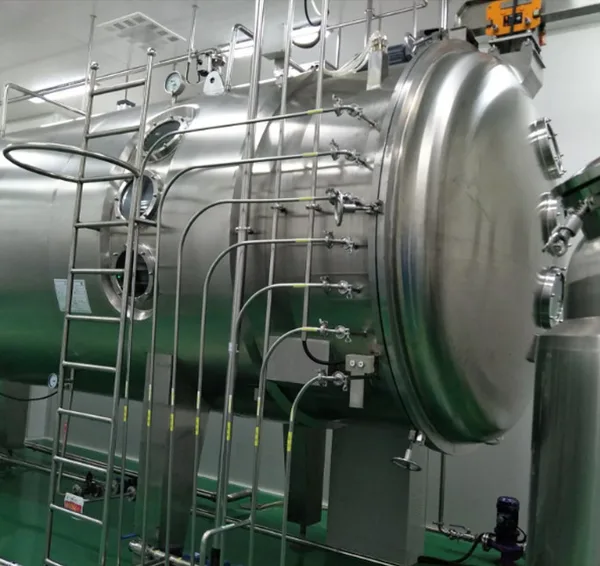

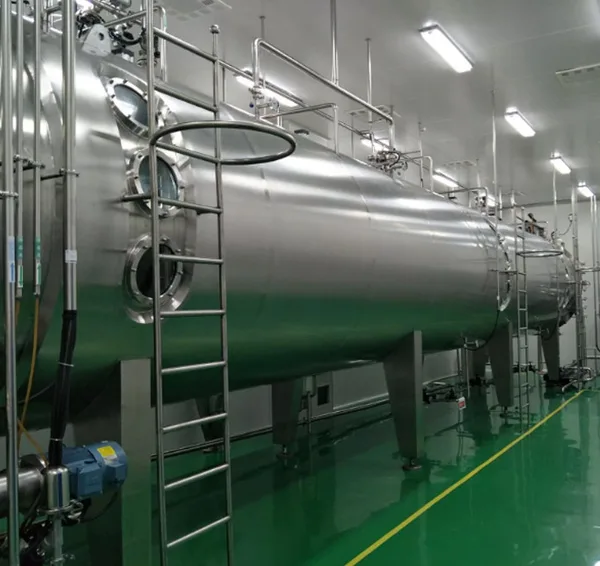

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device.

Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media.

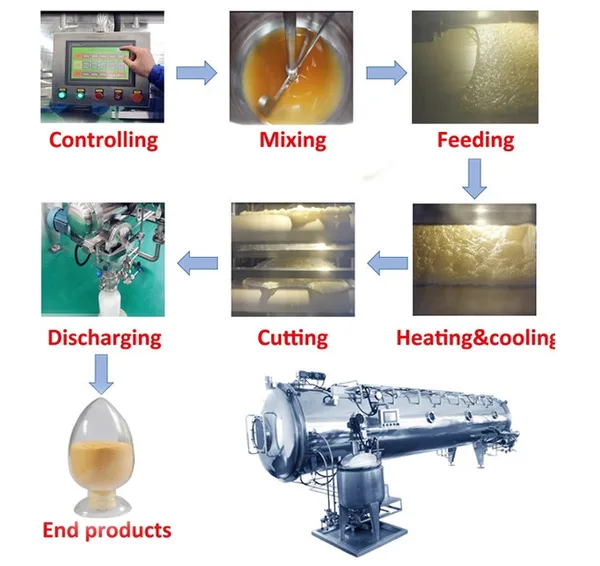

With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products.

Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.

Main Parameter of Freeze Dry Machine

Model	Diameter	Length	Height	Heating area	Moisture contentoffeeding material	Moisture content of dried product	Heating resource	Water Evaporation	Dryer body power
	mm	mm	mm	Square meter	%	%		kg/h	kw
MJY30-4	1700	9800	2700	30	20-80 Mobility	0.2-5 Adjustable	Steam or Hot water or Hot oil	15-25	10.00
MJY60-6	2200	10800	3650	60				45-55	14.00
MJY80-6	2200	13500	3650	80				60-75	14.50
MJY100-6	2200	16100	3650	100				80-90	15.50
MJY120-7	2200	16100	3650	120				100-110	16.50
MJY160-8	2800	17300	4100	160				120-140	18.50
MJY200-10	2800	17300	4150	200				160-180	25.50
