Powder Mixer Machine
Durable 100L Dry Powder Ribbon Blender Mixer With High Speed
Durable 100L Dry Powder Ribbon Blender Mixer With High Speed Technical Parameters of Ribbon Blender Mixer Volume (L) 100 Power of agitation motor (kw) 2.2 Rotation speed of agitation (r/min) 24 Power of Inclined motor (kw) 0.55 Input(kgs) 50 Weight (kg) 300 Overall dimensions (mm) 1400×500×1000 Working Principle of Ribbon Blender Mixer S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon e
| Place of Origin: | China |
|---|---|
| Brand Name: | SED Pharma |
| Certification: | CE |
| Model Number: | SED-100CH |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 30 Sets per month |
| Payment Terms: | T/T,L/C, ,Cash |
| Supply Ability: | 40 working days after receiving the deposit |
Configuration and product details
Technical overview- Name
- Durable 100L Dry Powder Ribbon Blender Mixer With High Speed
- Dimension
- 1400×500×1000mm
- Weight
- 300KGS
- Power of agitation motor (kw)
- 2.2
- Power of Inclined motor (kw)
- 0.55
- Input
- 50KGS
- material
- stainless steel
- key word
- Ribbon Blender Mixer
Durable 100L Dry Powder Ribbon Blender Mixer With High Speed
Technical Parameters of Ribbon Blender Mixer
|
Working Principle of Ribbon Blender Mixer
S type agitating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly.
Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.
Main Features of Ribbon Blender Mixer

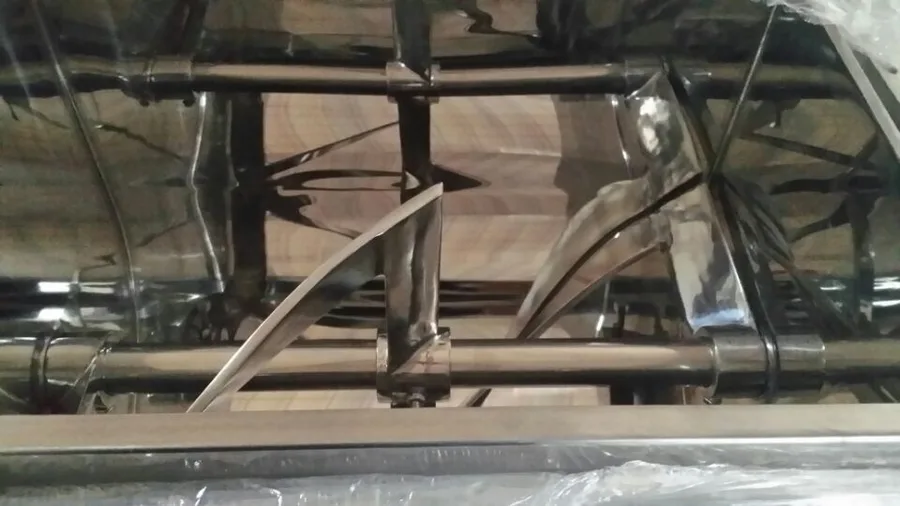

1. It consists of U shape container, spiral belt mixing blade and transmission parts.
2. The U-shaped long cylinder structure ensures the small resistance movement of the mixture (powder, semi-fluid) in the cylinder.
3. The positive and negative rotating screw rods are installed on the same horizontal axis to form a low power and high efficiency mixing environment. The spiral ribbon blades are usually made into two or three layers.
The outer spiral conveys the material from both sides to the center. The inner spiral conveys the material from the center to both sides, which makes the material form more eddies in the flow. The mixing speed is quickened and the mixing uniformity is improved.
4. Horizontal spiral belt mixer is a new type of mixing equipment with high efficiency, high uniformity, high loading coefficient, low energy consumption, low pollution and low crushing.

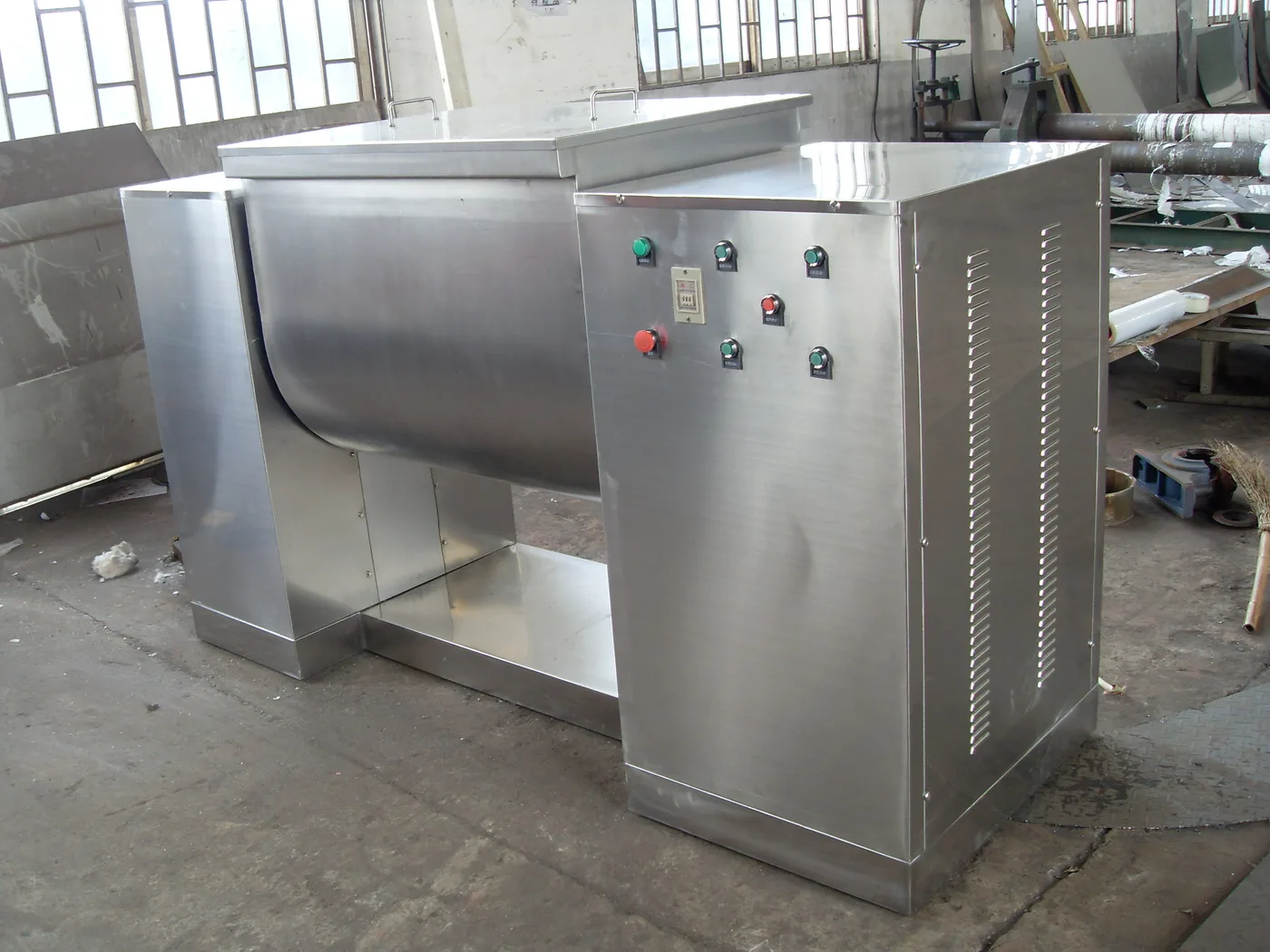

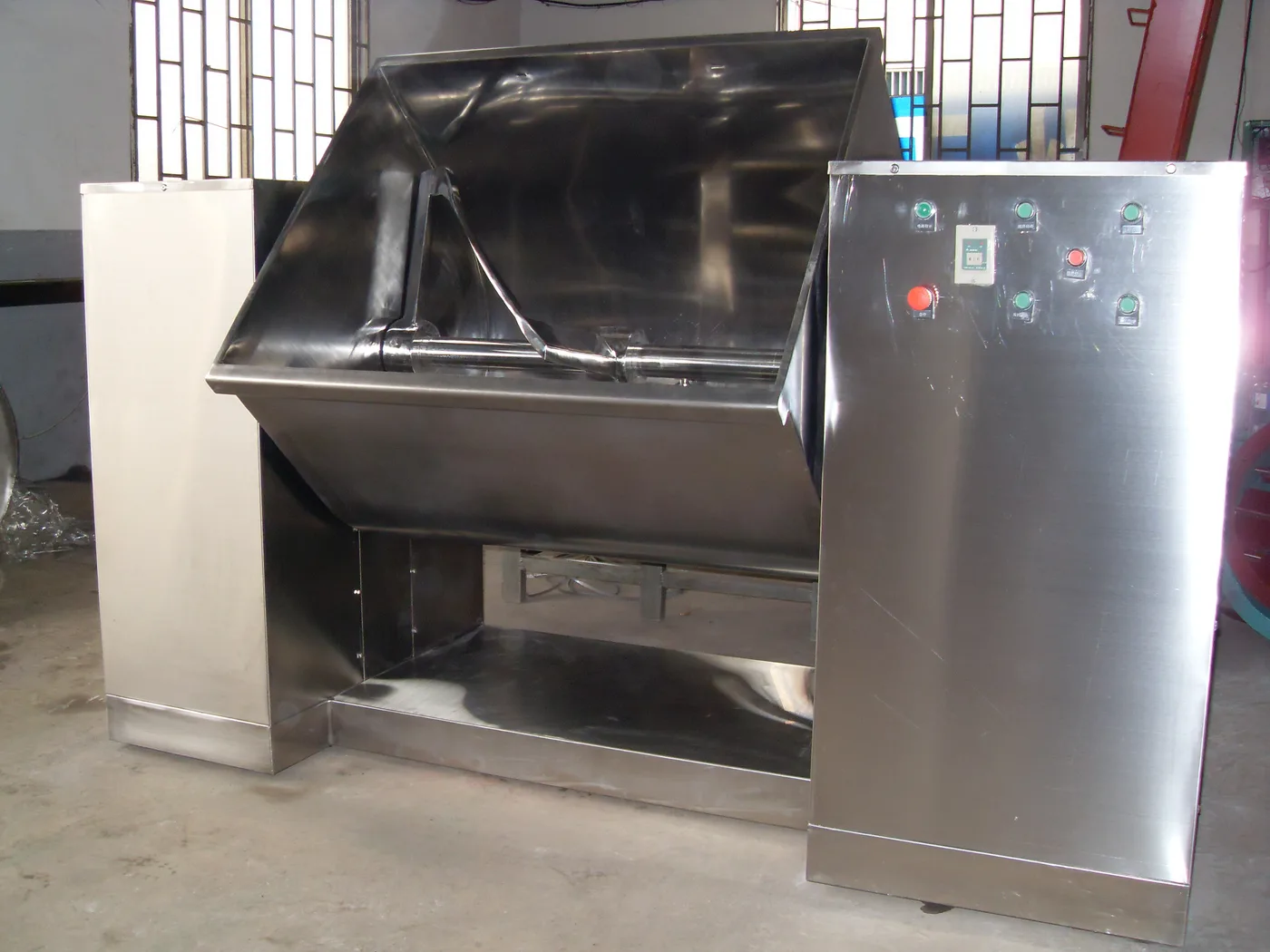

Product Show of Ribbon Blender Mixer
Application of Ribbon Blender Mixer
